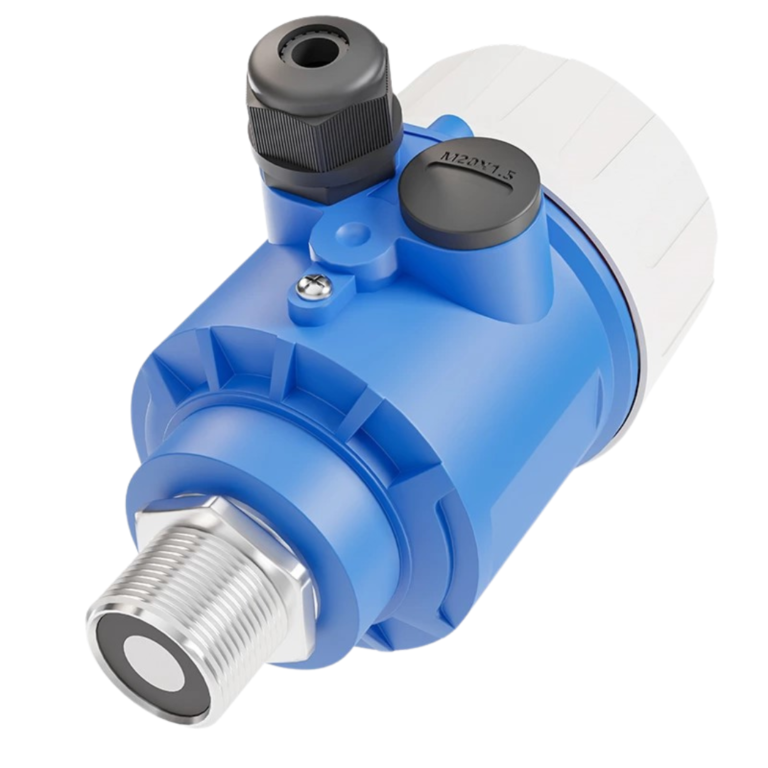

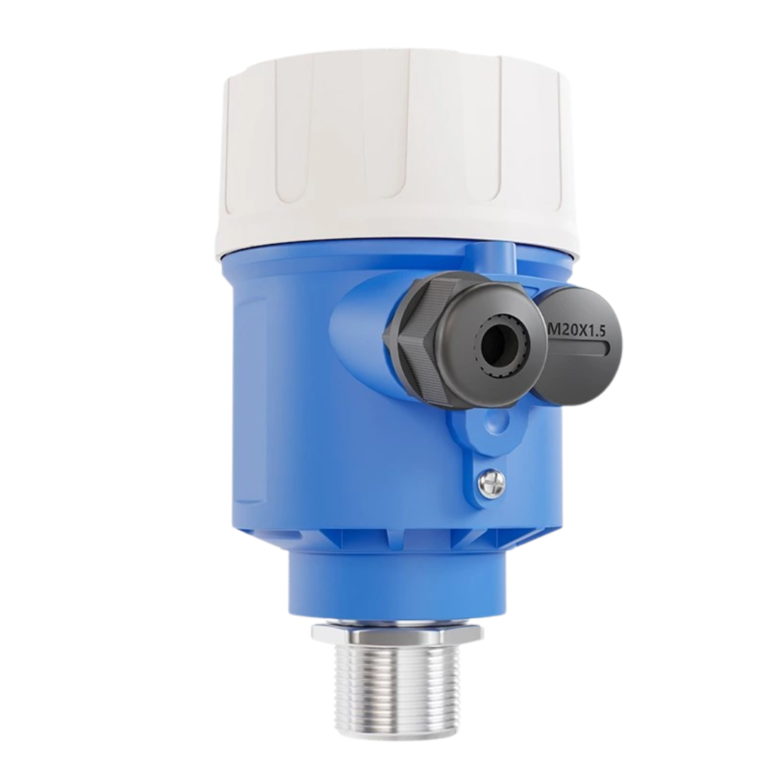

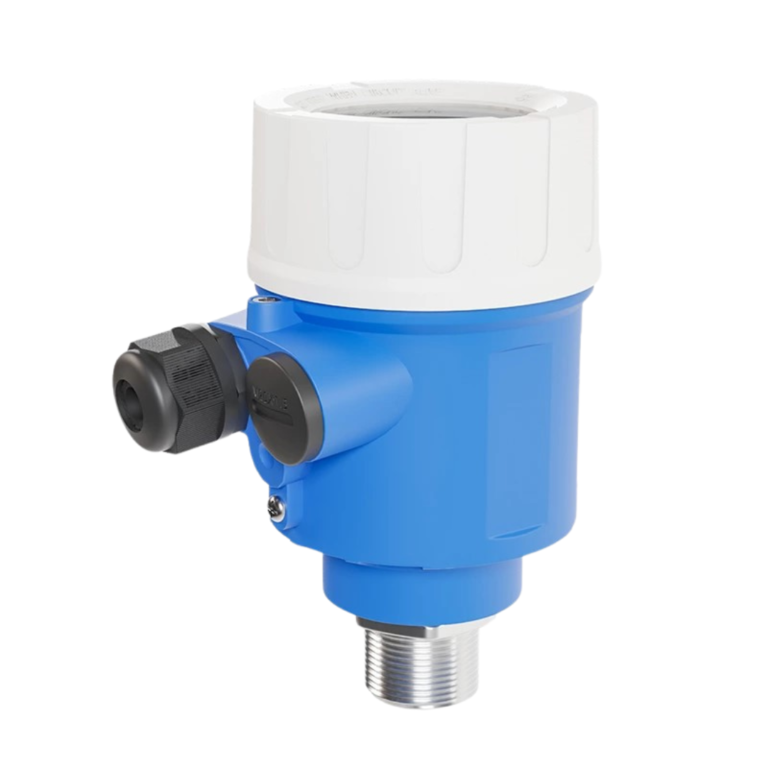

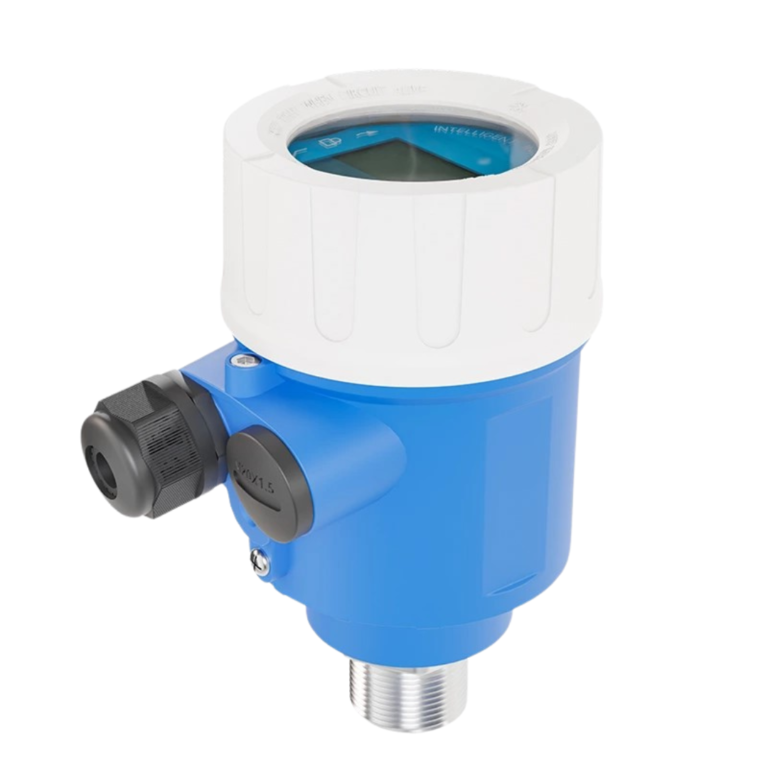

INATEC – ZPM Ultrasonic level transmitter is microprocessor controlled digital level meter. Ultrasonic pulses generated by the sensor (transducer) emitted in the measurement, the surface acoustic wave after reflection by the liquid receiving same sensor or an ultrasonic receiver, by a piezoelectric crystal or a magnetostrictive device into an electrical signal by transmitting and receiving sound waves to calculate the time between the sensor surface to the distance measured liquid.

Characteristics

Measure range : 0 ~ 1 m, 0 ~ 2 m.

Blind zone : ＜0.06 – 0.15 m (Different for range).

Accuracy : 0.5 % F.S.

Power supply : 12 – 24 VDC.

Tokopedia

Introduction

Ultrasonic level meter is a universal level meter that has the advantages of various other level gauges to realize a fully digital and humanized design. It has perfect level measurement and control, data transmission and man-machine communication functions. This product adopts modular circuit design, military-quality multi-layer PCB board, tight hardware structure and reasonable layout. This product supports isolated 4 ~ 20 mA, HART output, built-in GPRS, LORA, GPS, RF, Bluetooth and other wireless data transmission modules, and can also add modules to achieve other functions according to customer needs.

This product uses imported industrial-grade chips, digital temperature compensation and other related special integrated circuits. It has strong anti-interference ability, and can set upper and lower limit, online output adjustment arbitrarily, and has local display. The shell is made of engineering plastic ABS waterproof shell. The shell is small and quite sturdy. This product can meet most of the measurement requirements of liquid level and material level without contacting industrial media, completely solves the shortcomings of winding, clogging, leakage, medium corrosion, and inconvenient maintenance caused by traditional measurement methods such as pressure type, capacitance type, and float type level meter. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.

Specification

Information	Spesification
Product	Ultrasonic Level Transmitter
Model	INATEC - ZPM
Measure range	1 m, 2 m
Blind zone	≤ 0.06 m (Range 1 m） ≤ 0.15 m (Range 2 m）
Accuracy	0.5 % FS
Display	OLED
Output	4 - 20 mA RL＜600 Ω HART (Two-wire) (0 ~ 5) V / (0 ~ 10) V RS485 2 relays (AC : 2 A 250 V DC : 5 A 24 V)
Power supply	12 - 24 VDC
Power consumption	< 1.5 W
Ingress protection	IP65 / IP68 (Optional)
