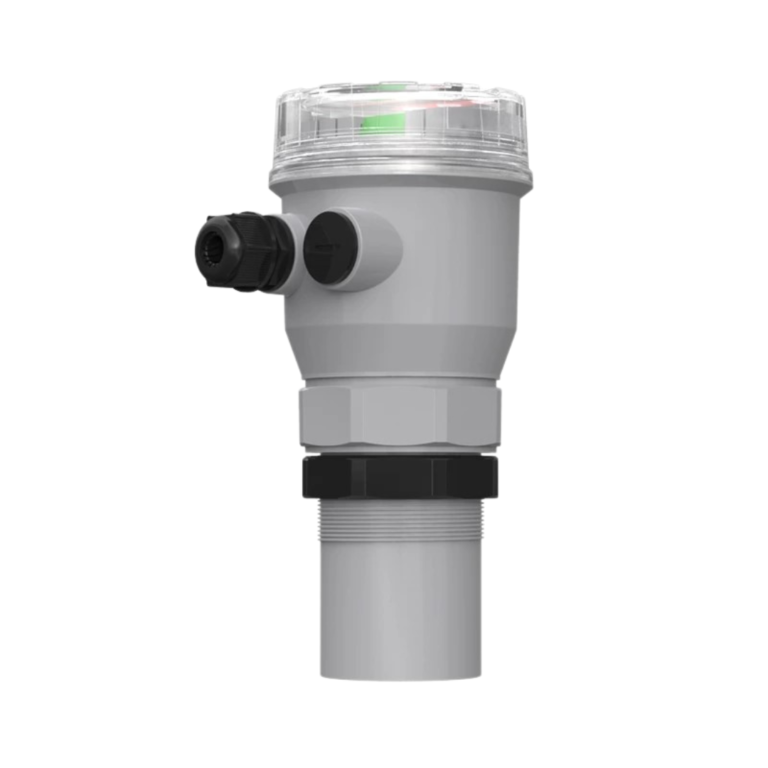

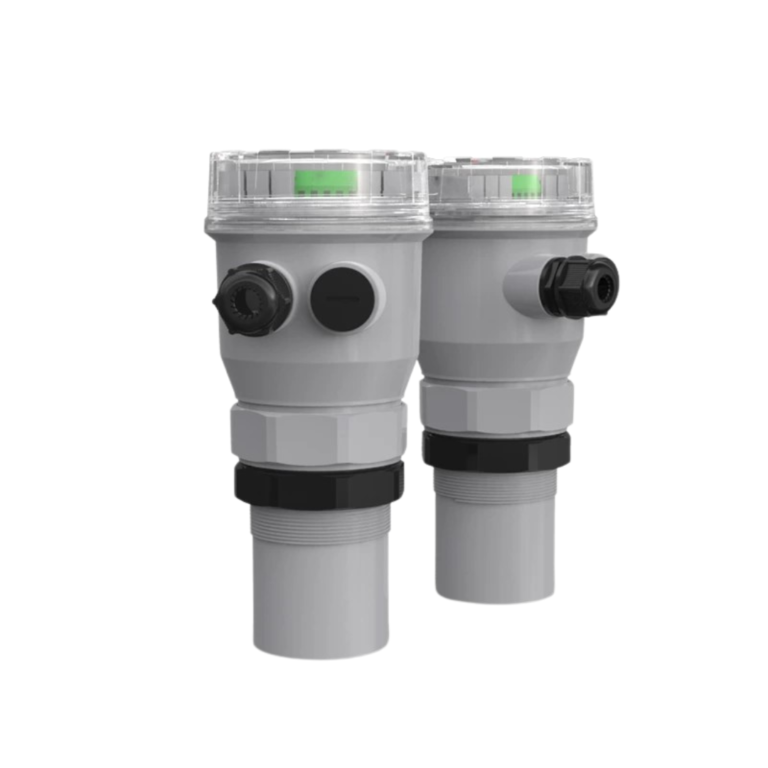

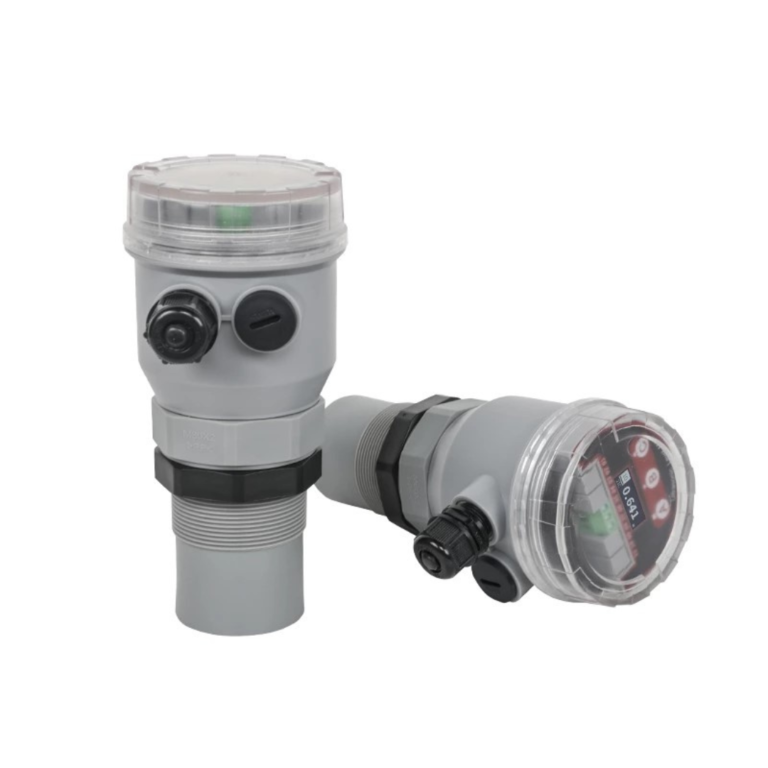

INATEC – ZP Ultrasonic Level Transmitter

INATEC – ZP Ultrasonic level transmitter taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication. The master chip is imported technical m single chip with relevant application specific ICs such as digital temperature compensation. It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication.

Characteristics

Measure range : 0 ~ 15 m.

Blind zone : ＜0.4 – 0.6 (Different for range).

Accuracy : 0.3 % F.S.

Power supply : 12 – 24 VDC.

Tokopedia

Specification

Information	Spesification
Product	Ultrasonic Level Transmitter
Model	INATEC - ZP
Measure range	5 m, 10 m, 15 m
Blind zone	0.4 m (Range 5 m) 0.5 m (Range 10 m) 0.6 m (Range 15 m)
Accuracy	0.3 % F.S
Display	OLED
Output (Optional)	4 - 20 mA RL＜600 Ω (Standard)
	RS485
	HART (Two-wire)
	(0 - 5) V / (0 - 10) V
	2 relays (AC : 5 A 250 V DC : 10 A 24 V)
Material	ABS, PP
Electrical interface	M20X1.5
Power supply	12 - 24 VDC, 18 - 28 VDC (Two-wire), 220 VAC
Power consumption	< 1.5 W
Ingress protection	IP65 / IP68 (Optional)
