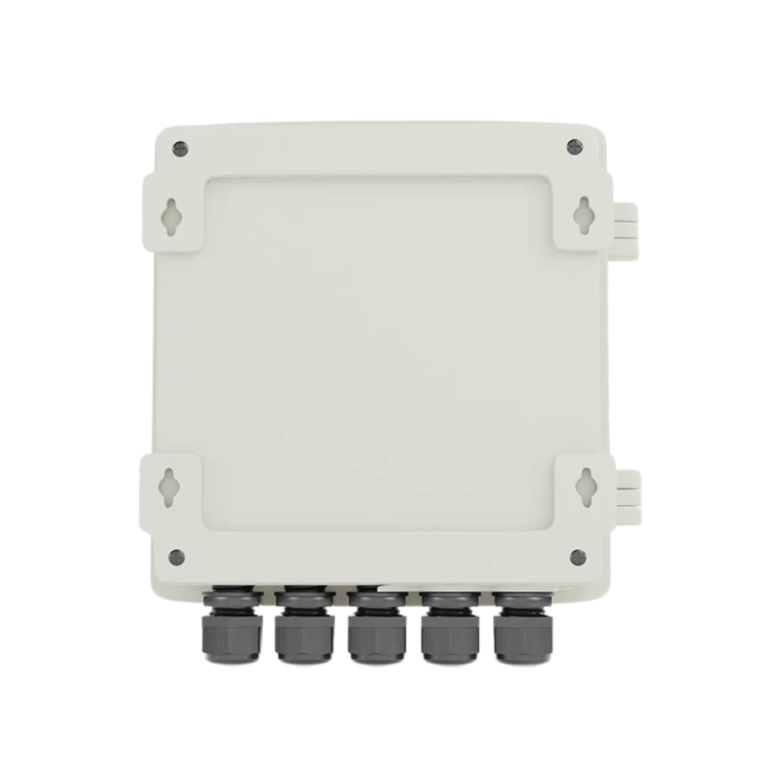

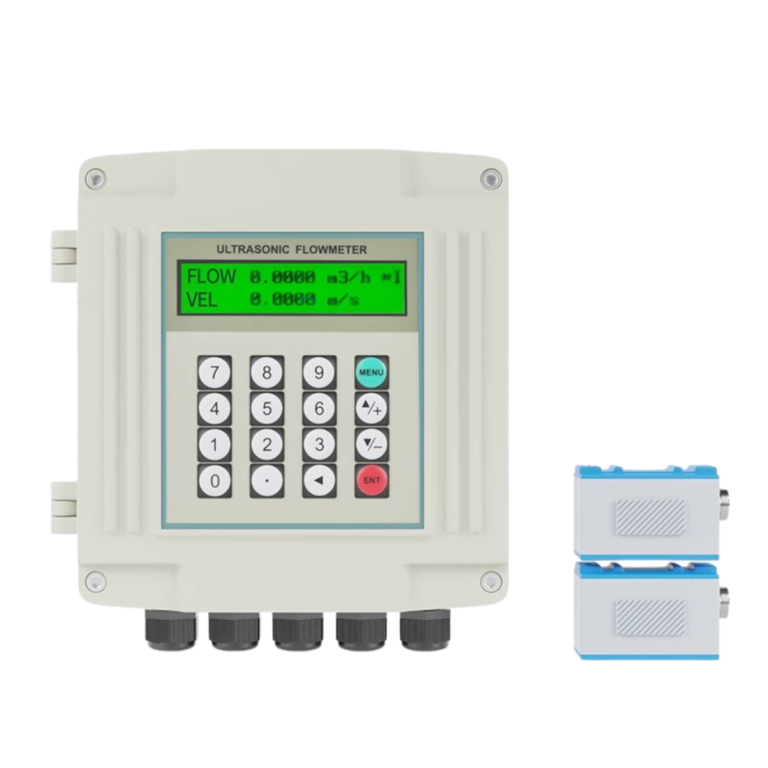

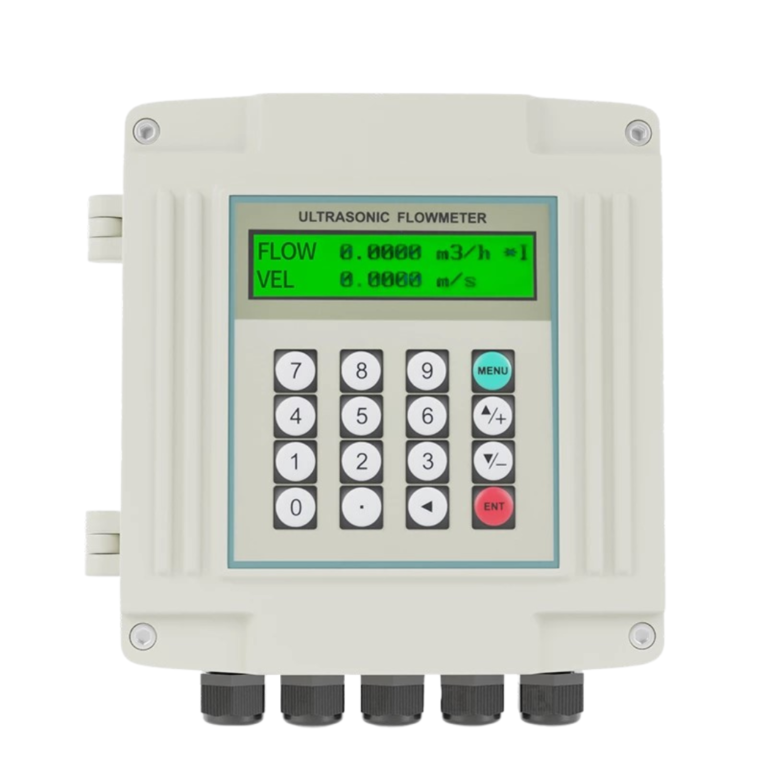

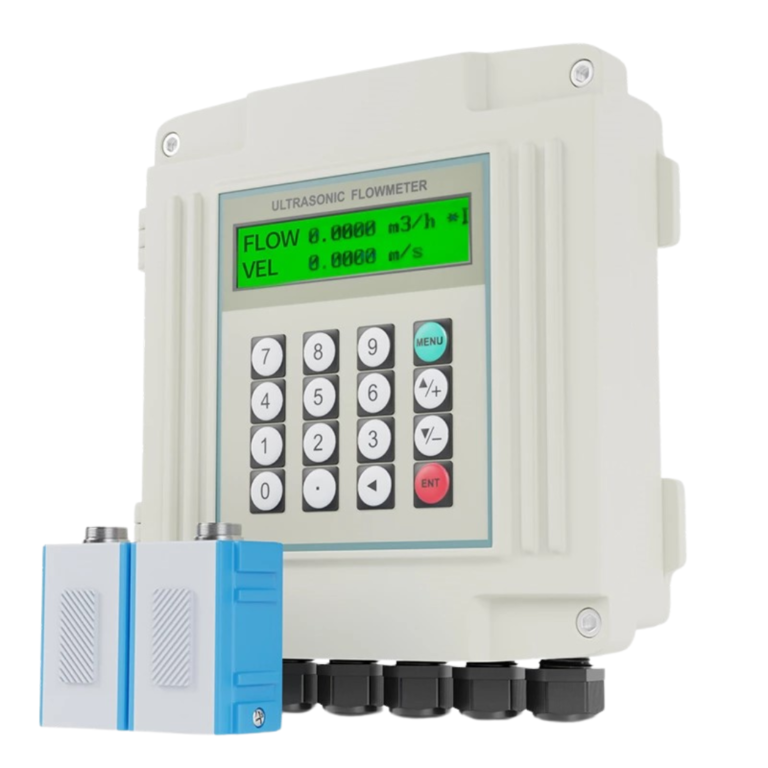

INATEC – 1158-S Wall Mounted Ultrasonic Flowmeter

INATEC – 1158-S Wall mounted clamp on ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance.

Characteristics

Pipe diameter : DN 32 – DN 6000

Accuracy : ± 1 %

Power supply : 10 ～ 36 VDC / 1A

Output : 04 ～ 20 mA, Relay, RS485

Tokopedia

Specification

Information	Spesification
Product	Wall - Mounted (Clamp on) Ultrasonic Flowmeter
Model	INATEC - 1158S
Pipe Size	DN 32 - DN 6000
Accuracy	± 1%
Signal output	1 way 4 - 20 mA output
	1 way OCT pulse output
	1 way replays output
Interface	RS485, Support MODBUS
Liquid types	Virtually all liquids
Working temperature	Convertor : - 20 ~ 60 ℃; Flow transducer : - 30 ~ 160 ℃
Working humidity	Convertor : 85 % RH
Power supply	DC 8 ~ 36 V or AC 85 ~ 264 V (Optional)
Date logger	Built-in data logger can store over 2000 lines of data
Case Material	ABS
Dimension	170 * 180 * 56 mm (Convertor)
