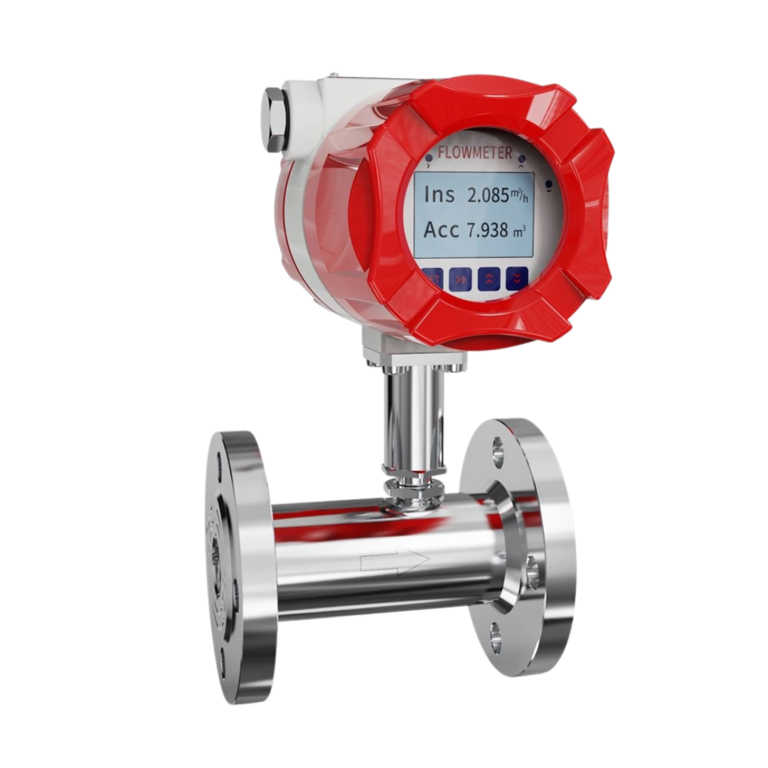

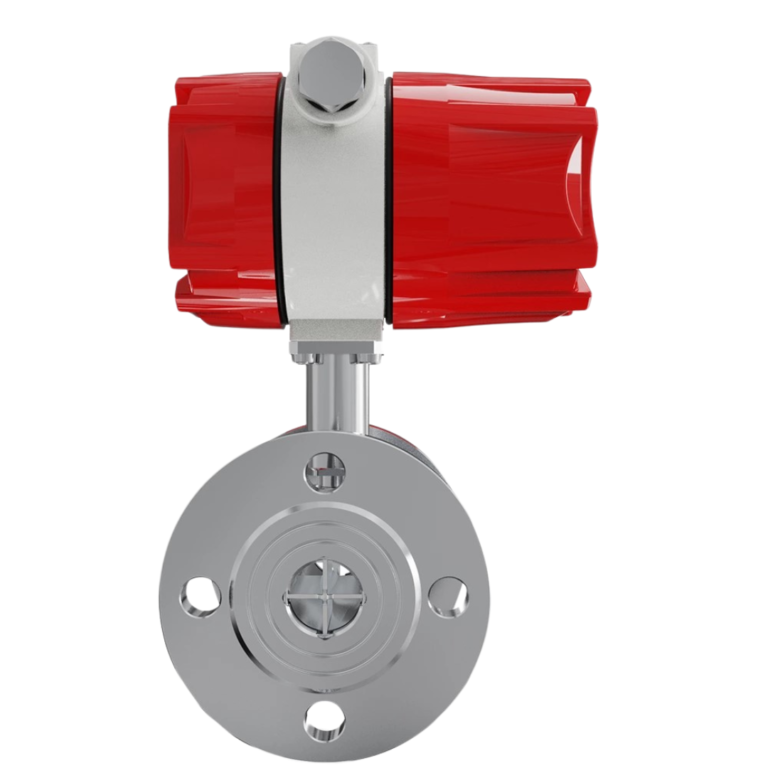

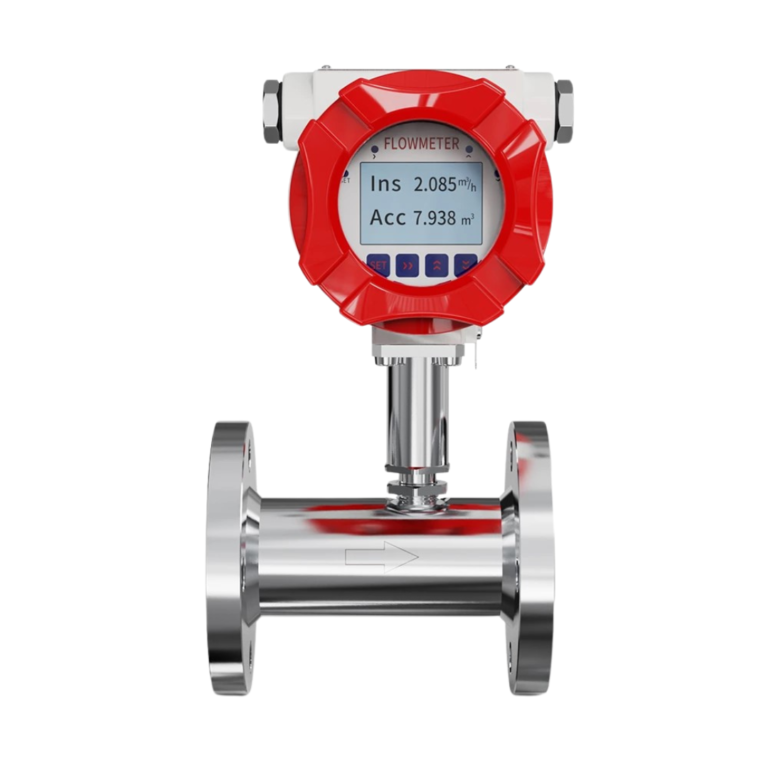

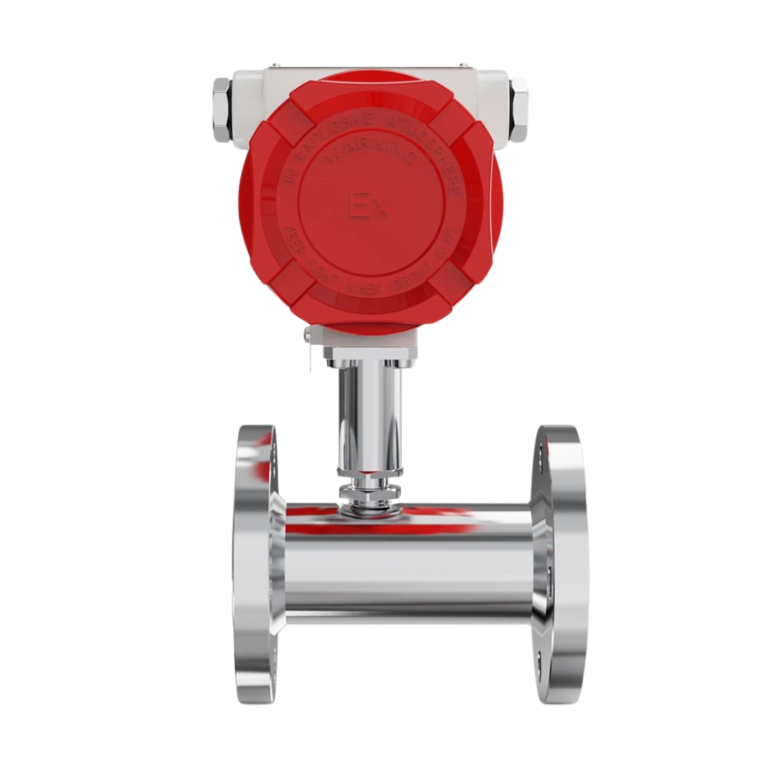

INATEC – LWGY Turbine Flowmeter Flange Connection
INATEC – LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.
Characteristics
Pipe diameter : DN 04 ~ DN 200
Accuracy : 0.5 % R, 1.0 % R
Power supply : 3.6 V lithium battery, 12 VDC, 24 VDC
Ingress protection : IP65
Specification
| Information | Spesification |
|---|---|
| Product | Turbine & Flowmeter |
| Model | INATEC - LWGY |
| Diameter nominal | DN 04 ~ DN 200 |
| Nominal pressure | 1.0 MPa ~ 6.3 MPa |
| Accuracy | 0.5 % R, 1.0 % R |
| Medium viscosity | Less than, 5 × 10 - 6 m2/s |
| (For the liquid with, > 5 × 10 - 6 m2/s) | |
| (The flowermeter needs to be calibrated before using) | |
| Medium temperature | - 20℃ ～＋120℃ |
| Power supply | 3.6 V Lithium battery, 12 VDC, 24 VDC |
| Output signal | Pulse, 4-20 mA, RS485 Modbus |
| Ingress protection | IP65 |
