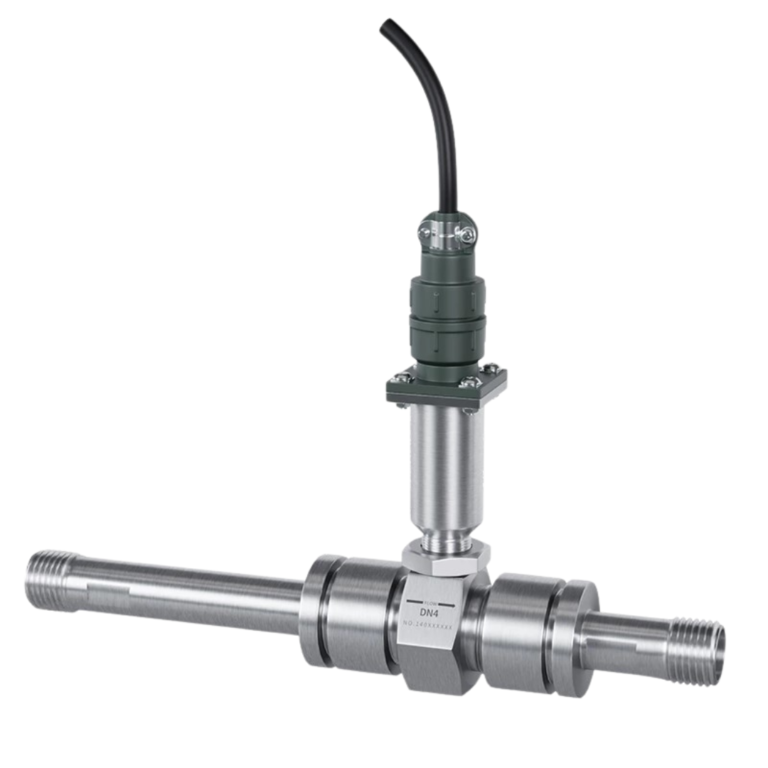

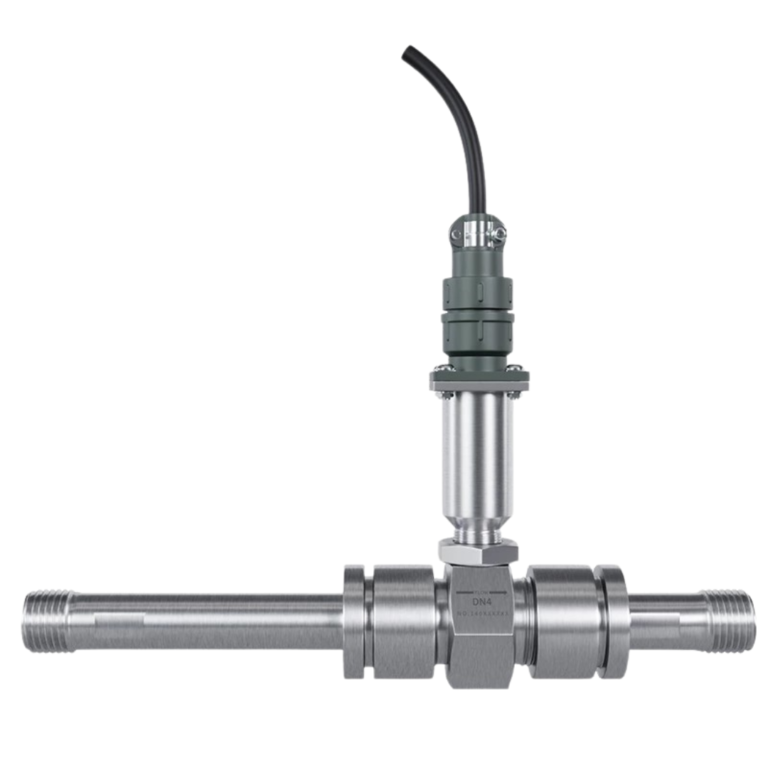

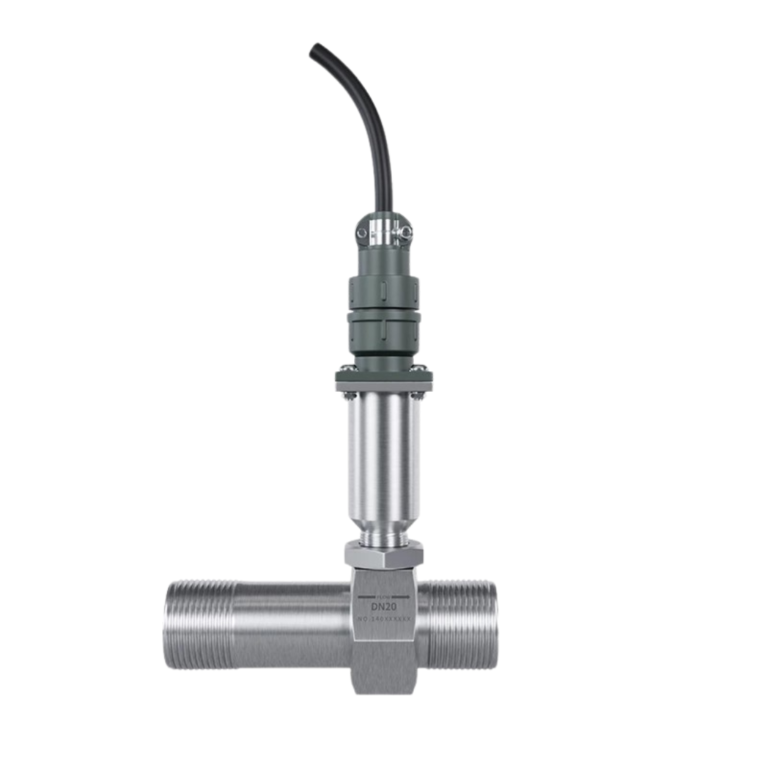

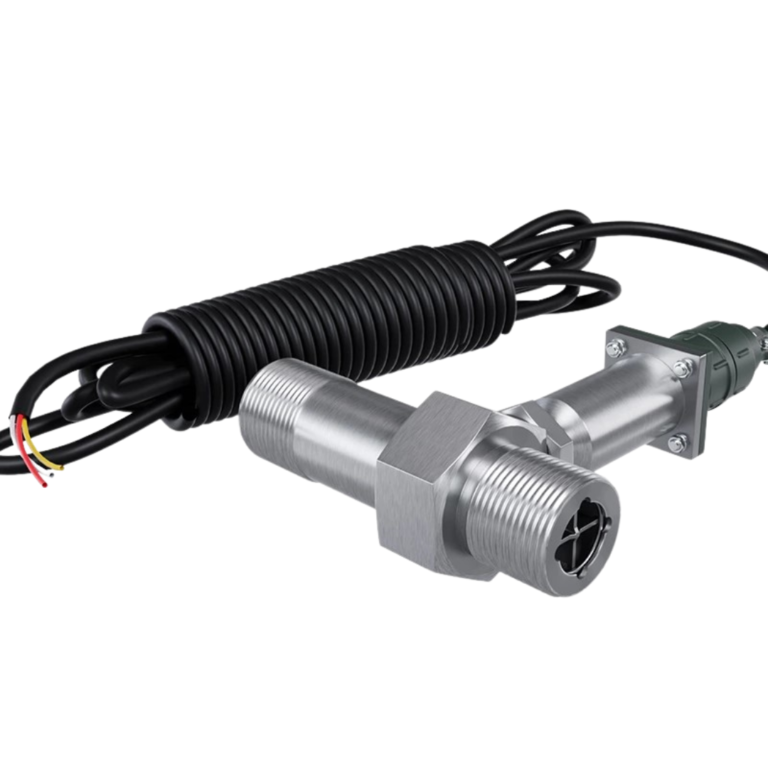

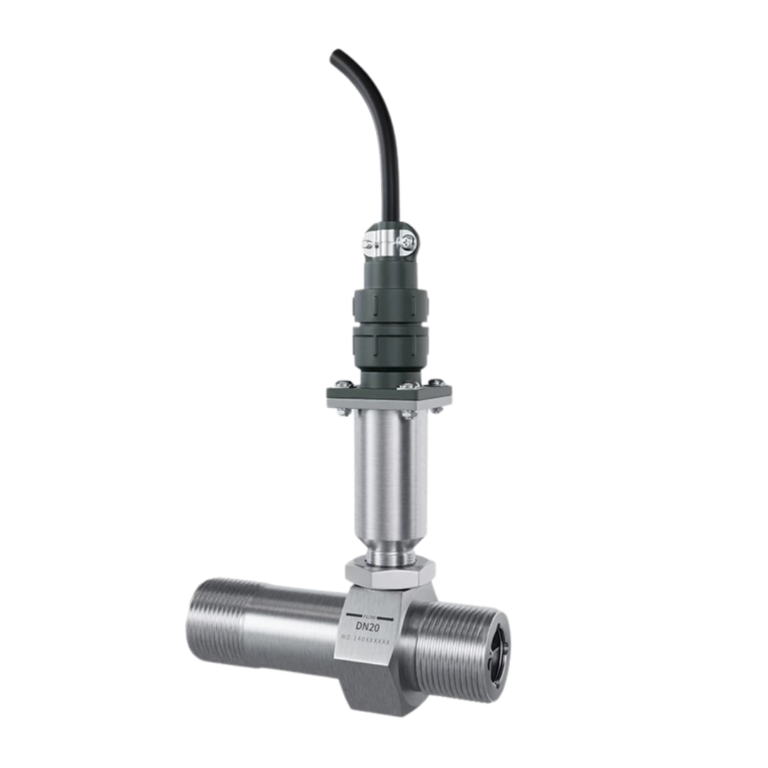

INATEC – LWGY Turbine Flow Sensor Thread Connection

INATEC – LWGY series liquid turbine flow sensor is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.

Characteristics

Pipe diameter : DN 04 ~ DN 100

Accuracy : 0.2 %, 0.5 %, 1.0 %

Power supply : 3.6 V Lithium battery, 12 VDC, 24 VDC

Ingress protection : IP65

Tokopedia

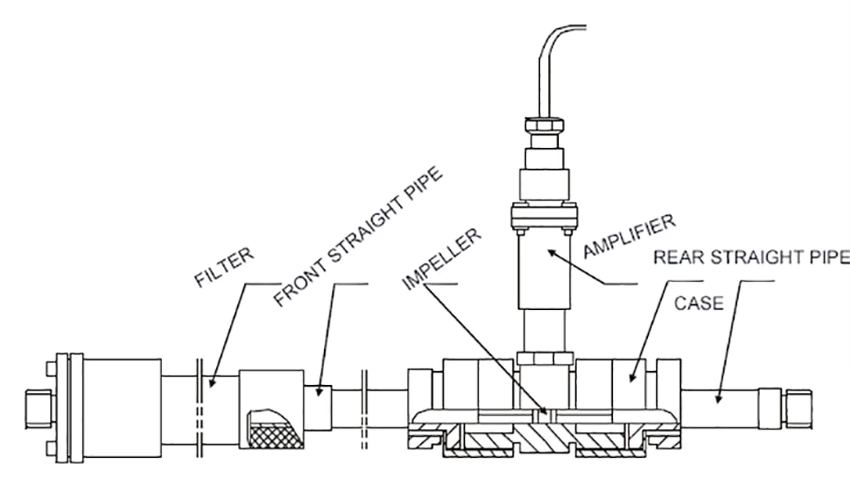

Principle

The fluid flows through the turbine flow sensor shell. Because the blade of the impeller has a certain angle with the flow direction, the impulse of the fluid makes the blade have rotation torque. After overcoming the friction torque and fluid resistance, the blade rotates. After the torque is balanced, the speed is stable. Under certain conditions, the speed is proportional to the flow rate. Because the blade has magnetic conductivity, it is in the position of the signal detector (Composed of permanent magnetic steel and coil) of the magnetic field, the rotating blade cuts the magnetic line of force and periodically changes the magnetic flux of the coil, so that the electric pulse signal is induced at both ends of the coil.

Specification

Information	Spesification
Product	Turbine Flow Sensor
Model	INATEC - LWGY
Diameter nominal	DN 04 ~ DN 100
Nominal pressure	6.3 MPa
Accuracy	0.5 % R, 1.0 % R
Medium temperature	- 20℃ ～＋120℃
Power Supply	3.6 V Lithium battery, 12 VDC, 24 VDC
Output signal	Pulse, 4-20 mA, RS485 (WIth transmitter)
Ingress protection	IP65
