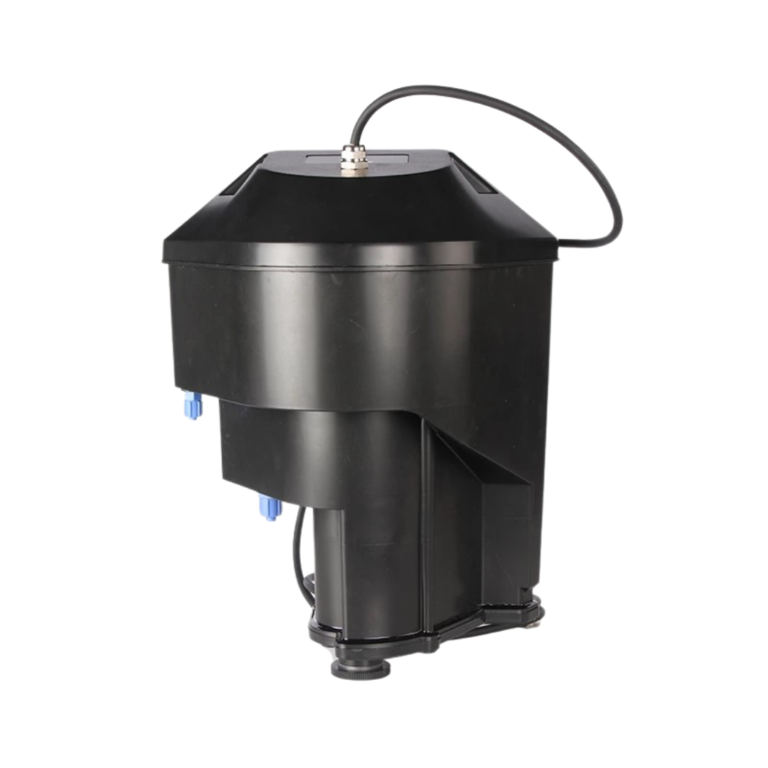

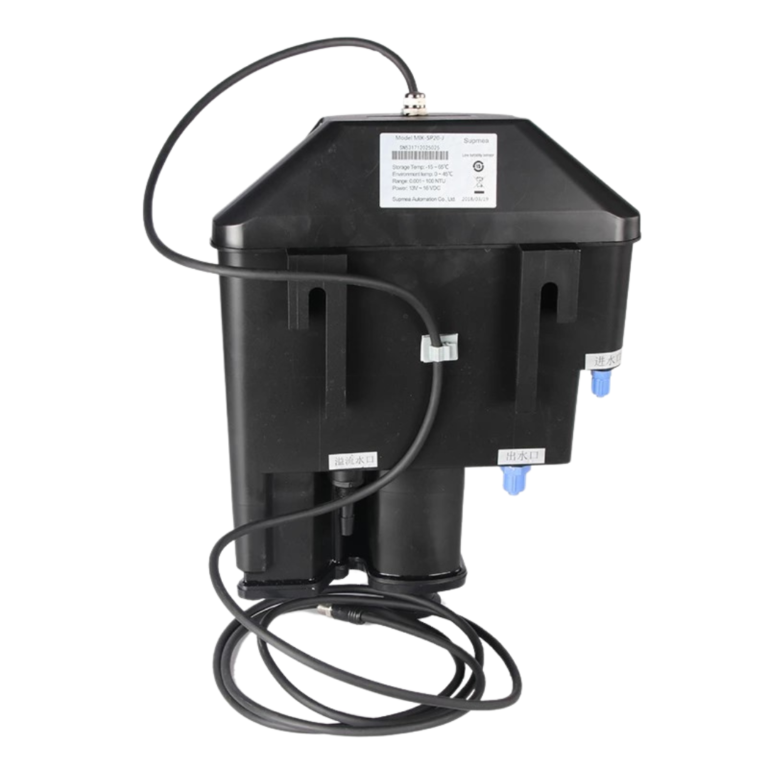

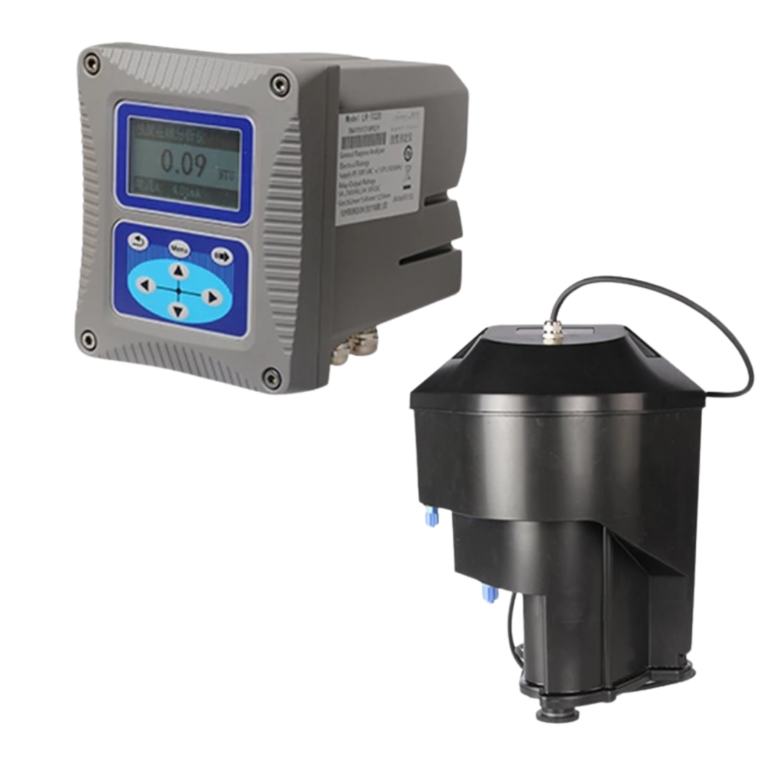

INATEC – PTU-8012 Low Turbidity Sensor

INATEC – PTU-8012 Low Turbidity Sensor

INATEC – PTU-8012 widely used in such fields as sewage plants, Drinking water plants, water stations, surface water, and industries for inspecting the turbidity.

Characteristics

Range : 0.01 – 100 NTU.

Resolution : The deviation of reading in 0.001 ~ 40 NTU is ± 2 % or ± 0.015 NTU, choose the bigger one; and it is ± 5 % in the range of 40 – 100 NTU.

Flow Rate: 300 ml/min ≤ X ≤ 700 ml/min.

Pipe Fitting : Injection Port : 1/4 NPT, Discharge Outlet : 1/2 NPT.

Specification
InformationSpesification
ProductTurbidity Sensor
Measure range0.01 - 100 NTU
Measurement accuracyThe deviation of reading in 0.001 ~ 40 NTU is ± 2 % or ± 0.015 NTU, choose the bigger one; and it is ±5% in the range of 40 - 100 NTU
Flow rate300 ml/min ≤ X ≤ 700 ml/min
Pipe fittingInjection Port : 1/4 NPT, Discharge Outlet: 1/2 NPT
Environment temp 0 ~ 45 ℃
CalibrationStandard Solution Calibration, Water Sample Calibration, Zero Point Calibration
Cable lengthThree-meter standard cable, it is not recommended to extend
Main materialsMain Body : ABS + SUS316 L
Sealing Element : Acrylonitrile Butadiene Rubber
Cable : PVC
Ingress protectionIP66
Weight 2.1 KG
