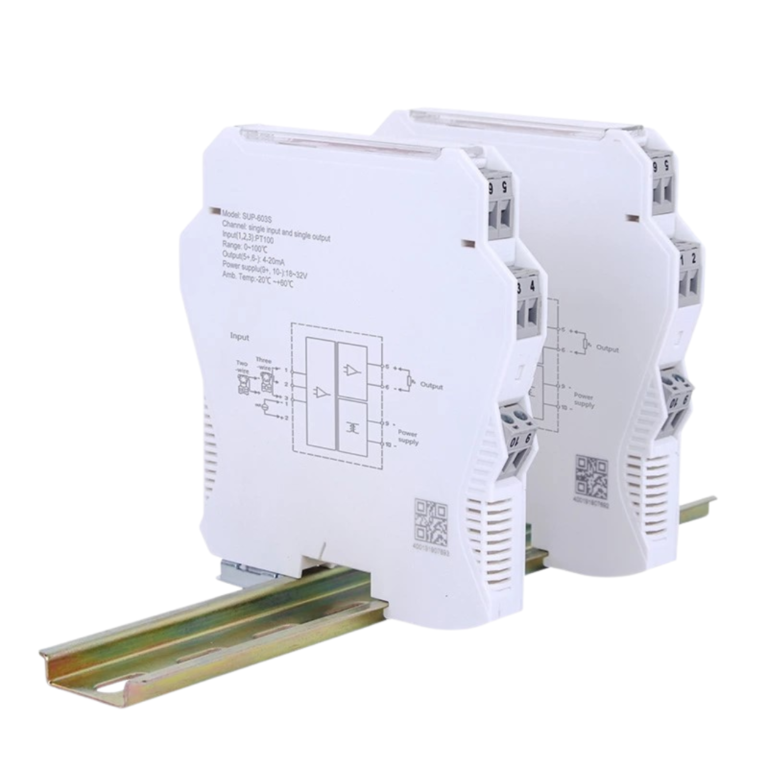

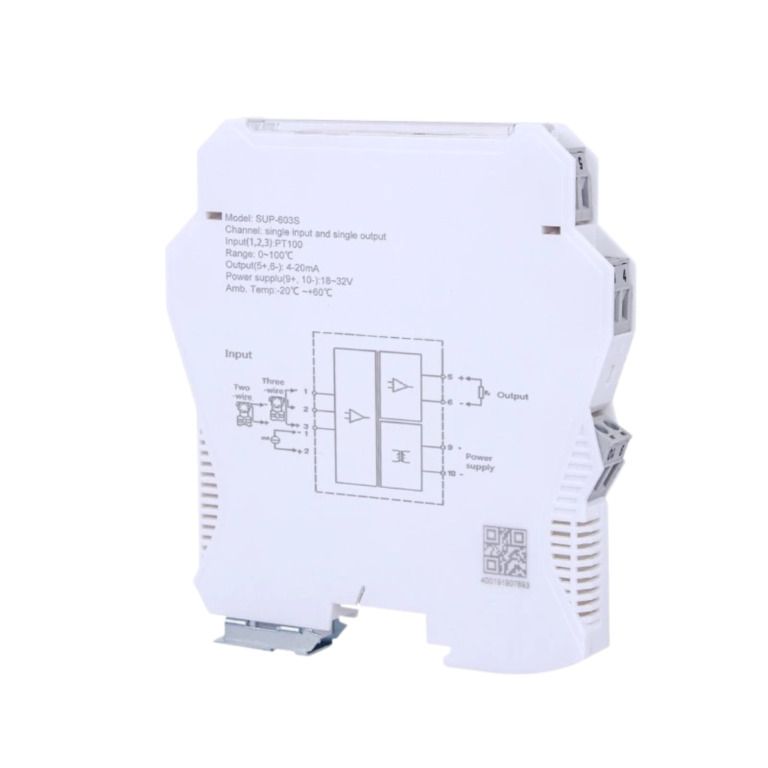

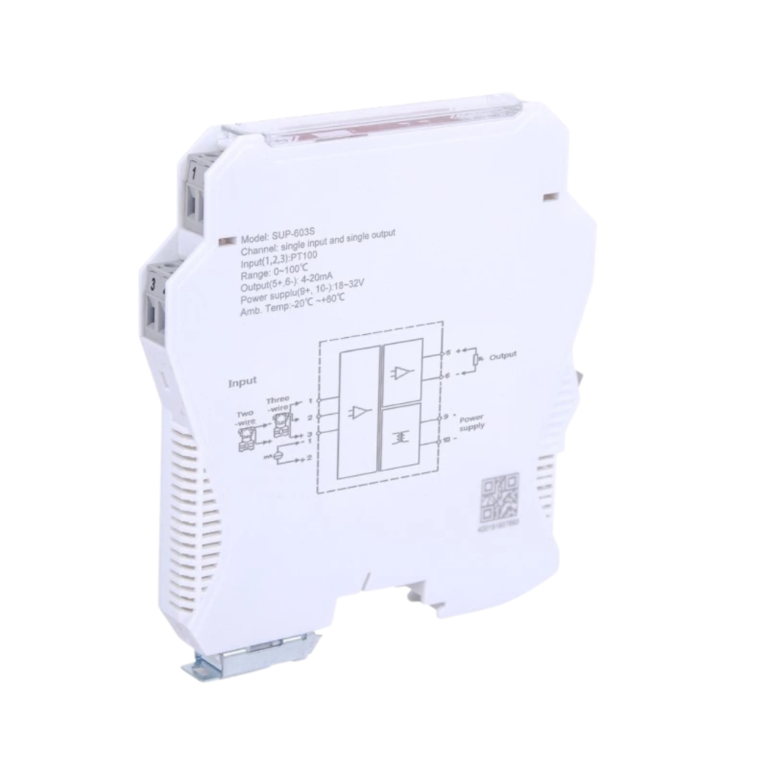

INATEC – 603-S Temperature Signal Isolator

INATEC – 603-S Intelligent Temperature Transmitter utilized in automated control systems is a kind of instrument for transformation & distribution, isolation, transmission, operation of a variety of industrial signal, it can also be used with all kinds of industrial sensor to retrieve parameters of signals, isolation, transformation and transmission for remote monitoring local data collection.

Characteristics

Input: Thermocouple : K, E, S, B, J, T, R, N and WRe 3 – WRe 25, WRe 5 – WRe2 6, etc.

Thermal resistance : Pt 100, Cu 50, Cu 100, BA 1, BA 2, etc.

Output : 0 (4) mA～20 mA, 0mA ～ 10 mA, 0 (1) V～5 V, 0 V～10 V.

Response time : ≤ 0.5 s.

Tokopedia

Specification

• Input signal type :

Thermocouple : K, E, S, B, J, T, R, N and WRe 3 – WRe 25, WRe 5-WRe2 6, etc.

Thermal resistance : two – / three – wire system thermal resistance (P t100, Cu 50, Cu 100, BA 1, BA 2, etc).

The type and range of input signal can be determined at the time of ordering or self-programmed.

• Output signal type :

DC : 0 (4) mA – 20 mA, 0 mA – 10 mA.

DC voltage : 0 (1) V – 5 V, 0 V – 10 V.

Other signal types may be customized as required, see the product label for the specific signal types.

• Output ripple : < 5 mV rms（Load 250 Ω）

• Accuracy of isolated transmission : (25 ℃ ± 2 ℃, excluding cold junction compensation).

	Input Signal Type	Range	Accuracy
TC	K / E / J / N, etc.	< 300 ℃	± 0.3 ℃
		≥ 300 ℃	± 0.1 % F∙S
	S / B / T / R / WRe - Series	< 500 ℃	± 0.5 ℃
		≥ 500 ℃	± 0.1 % F∙S
RTD	Pt 100 / Cu 100 / Cu 50 / BA 1 / BA 2, etc.	< 100 ℃	± 0.1 ℃
		≥ 100 ℃	± 0.1 % F∙S
