INATEC – RN-3000 18-Channel Analog Signal Input Paperless Recorder
This product has a 18-channel analog signal input channel, 4-channel relay alarm output channel, 1-channel 150 mA distribution output channel,1-channel RS-485 communication interface ,and a USB data dump interface.This product has online firmware upgrade function, which can be done through a USB flash drive or 485 interface. It supports customized writing of the startup interface and screenshot display function.
Characteristics
Power supply : (85 ~ 264) VAC, (47 ~ 63) Hz (24 VDC can be customized).
Internal storage : 64 M Bytes Flash (96 M, 128 M can be customized).
External storage : U disk support (Standard USB 2.0 communication interface).
Introduction

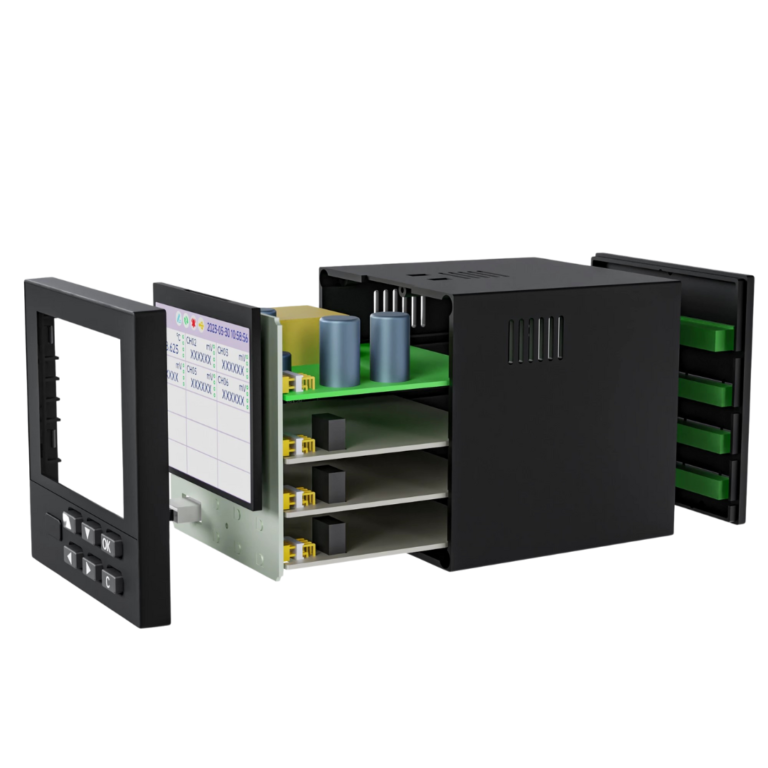

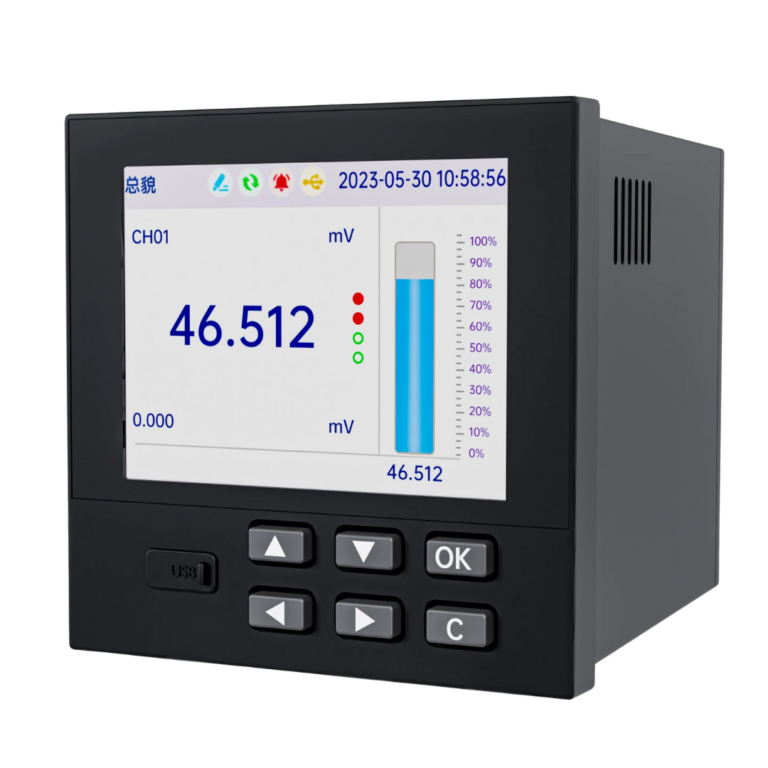

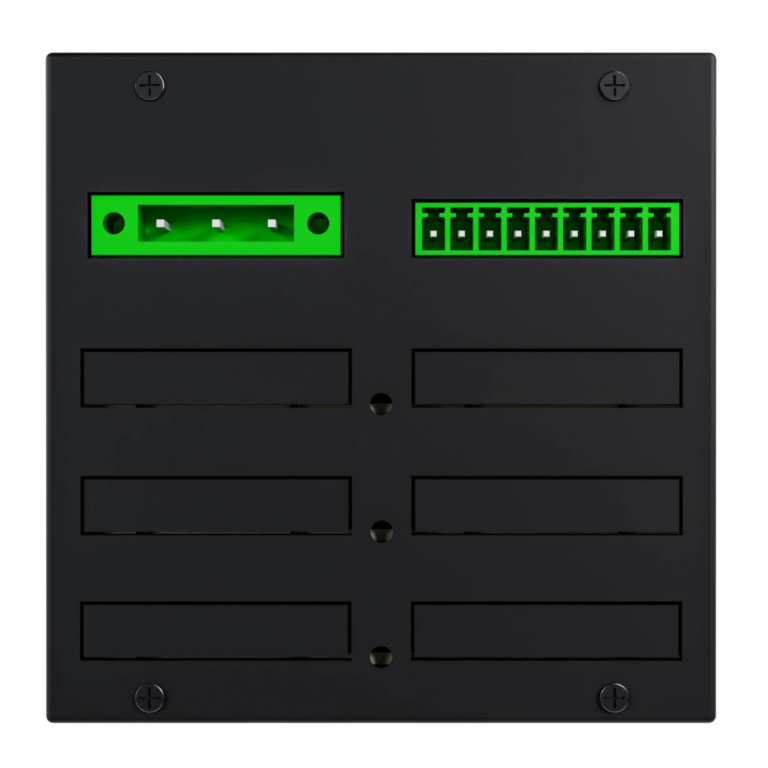

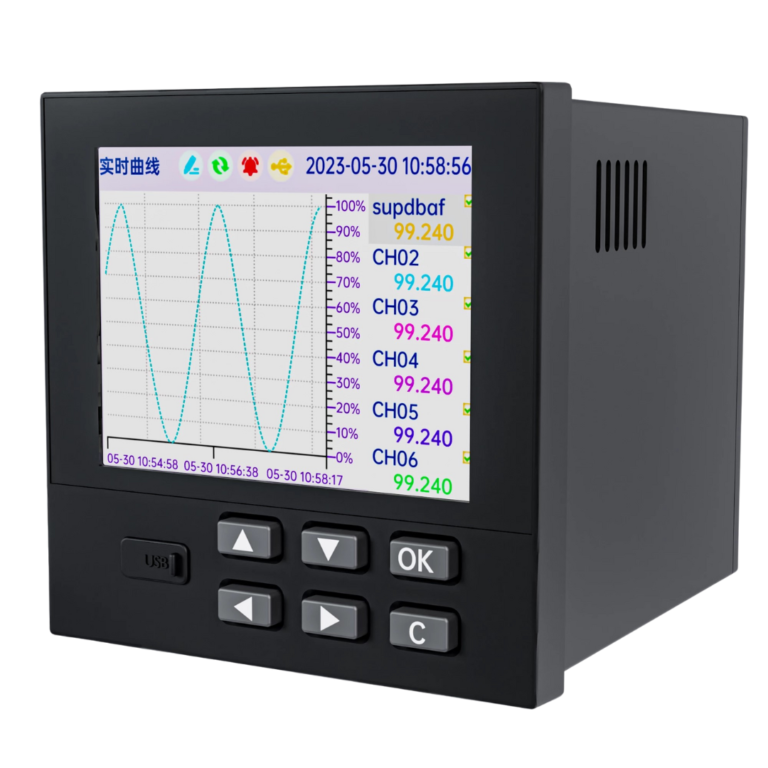

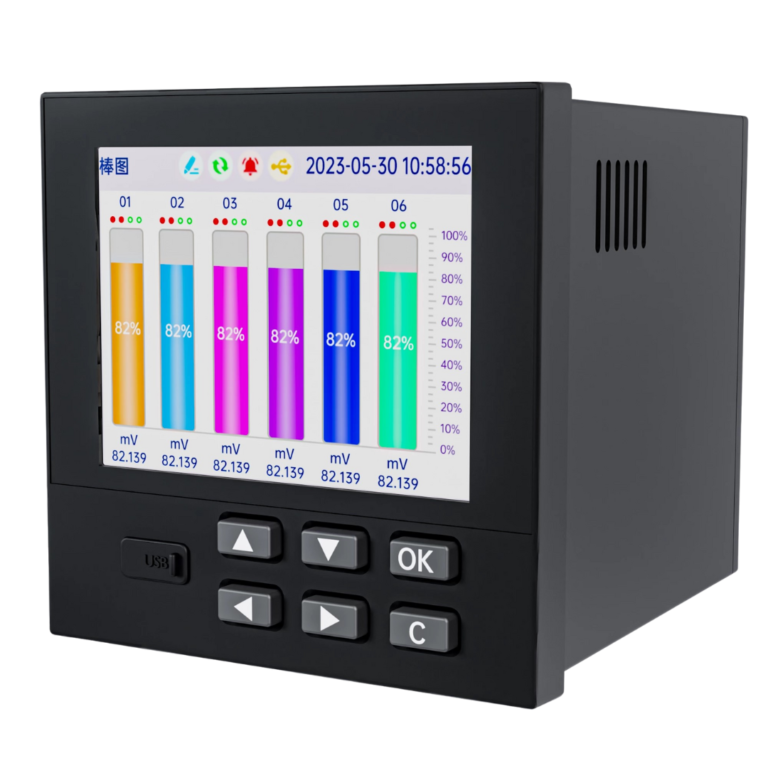

This product is an industrial paperless recorder equipped with a 3.5-inch TFT true color full view LCD display screen. Multiple types of industrial standard signals such as current, voltage, thermocouples, and thermal resistors can be connected to achieve temperature, humidity, pressure, liquid level, flow display, recording, over limit monitoring, reporting, data communication, signal transmission, flow accumulation, flow temperature and pressure compensation, and other functions. It can be applied in various industries such as metallurgy, petroleum, chemical engineering, building materials, papermaking, electricity, food, pharmaceuticals, industrial water treatment, etc.
Benefits
- 3.5-inch TFT true color full viewing angle LCD display, high-definition LED backlight.
- Standard configuration is 64MB memory, optional 96M or 128M large memory.
- RS485 communication interface-standard ModbusRTU.
- Supports online firmware upgrade through U disk or 485 interface.
- Supports custom writing function of boot interface.
- Supports screen capture function.
- Built-in Chinese and English bilingual, free to switch.
- Chinese label configuration can be set.
Installation
Instrument operating environment will not only affect the normal use of the instrument, but also affect the maintenance and calibration work. Instrumentation environment should meet the following requirements :
- Indoor installation.
- Operating temperature : (0 ~ 50) ℃.
- Relative humidity : 10 % ~ 85 % (No condensation).
- Ventilation requirements : ventilated to prevent the internal meter temperature is too high.
- Vibration disturbance : Less mechanical vibration.
- Air ingredients : NOT easy to produce condensate, non-corrosive gas or flammable gas.
- Inductive interference : No strong inductive interference, not easy to produce static electricity, magnetic fields or noise.
- Meter position : When installing the instrument, try to maintain the level and do not tilt left and right.
Specification
| Information | Spesification |
|---|---|
| Product | Paperless Recorder |
| Model | INATEC - RN-3000 |
| Screen size | 3.5-inch TFT true color LCD screen. Resolution is 320 * 240 High definition LED backlight |
| Dimension | Dimension : 96 mm × 96 mm × 100 mm Cutout dimension : 92 mm × 92 mm |
| Panel thickness | 1.5 mm ~ 6.0 mm |
| Weight | 0.37 kg |
| Power supply | (85 ~ 264) VAC, (47 ~ 63) Hz (24 VDC can be customized) |
| Internal storage | 64 M Bytes Flash (96 M, 128 M can be customized) |
| External storage | U disk support (Standard USB 2.0 communication interface) |
| Maximum power consumption | 10 W |
| Relative humidity | (10 ~ 85) % (No condensation) |
| Operating temperature | (0 ~ 50) ℃ |
| Storage conditions | Temperature : (- 20 ~ 60) ℃ Relative humidity : (5 ~ 95) % RH (No condensation) |
