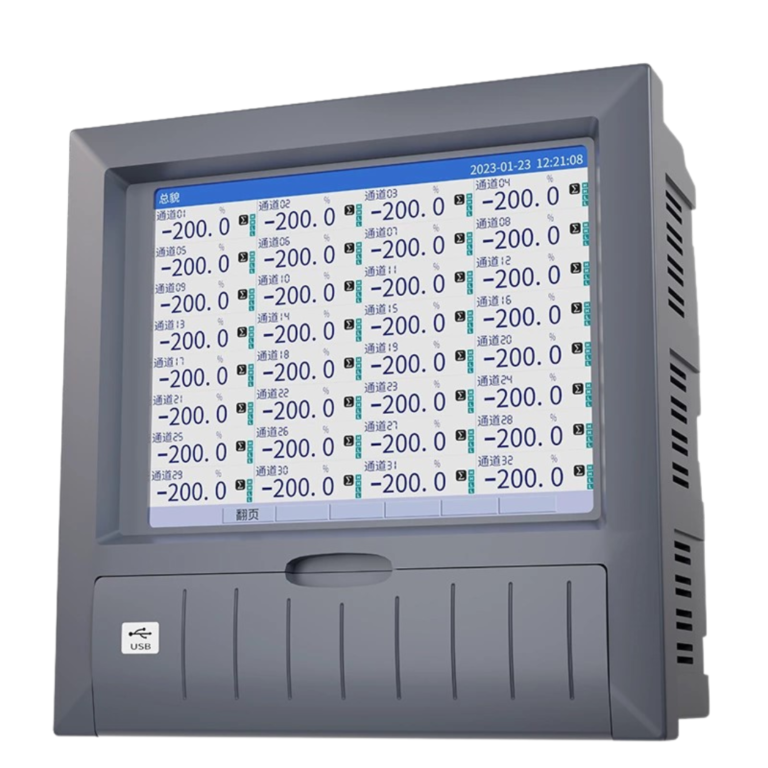

INATEC – R-8000-D medium-length color screen paperless recorder is a new type of recorder designed and produced to meet the actual needs of various industrial sites. It can be used to record pressure signals, temperature signals, etc.

Characteristics

Inputs channel : Up to 40 channels of universal input.

Power supply : 220 VAC.

Output : Alarm output, RS485 output.

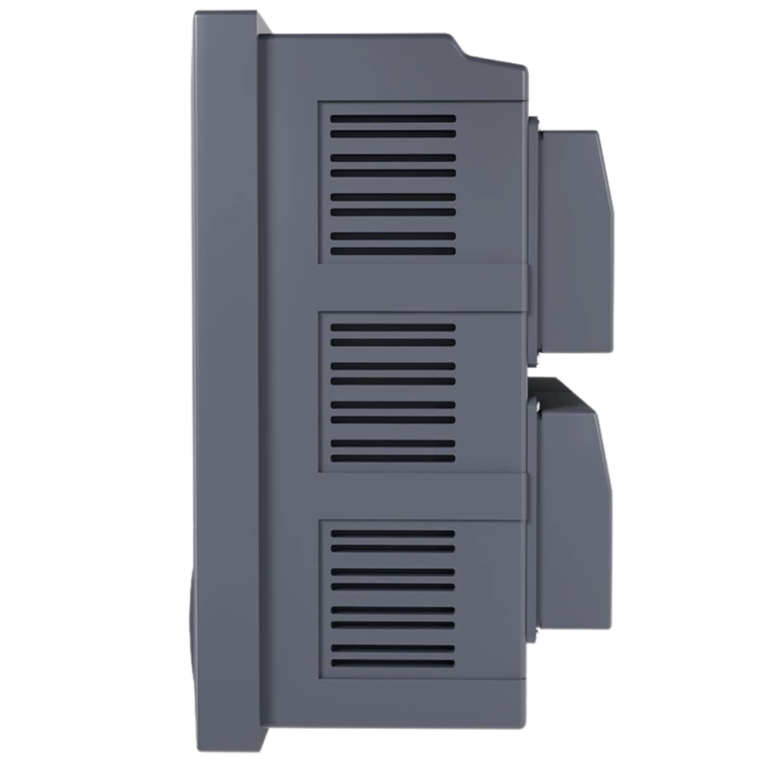

Dimensions : 288 (W) × 288 (H) × 244 (D) mm.

Tokopedia

Introduction

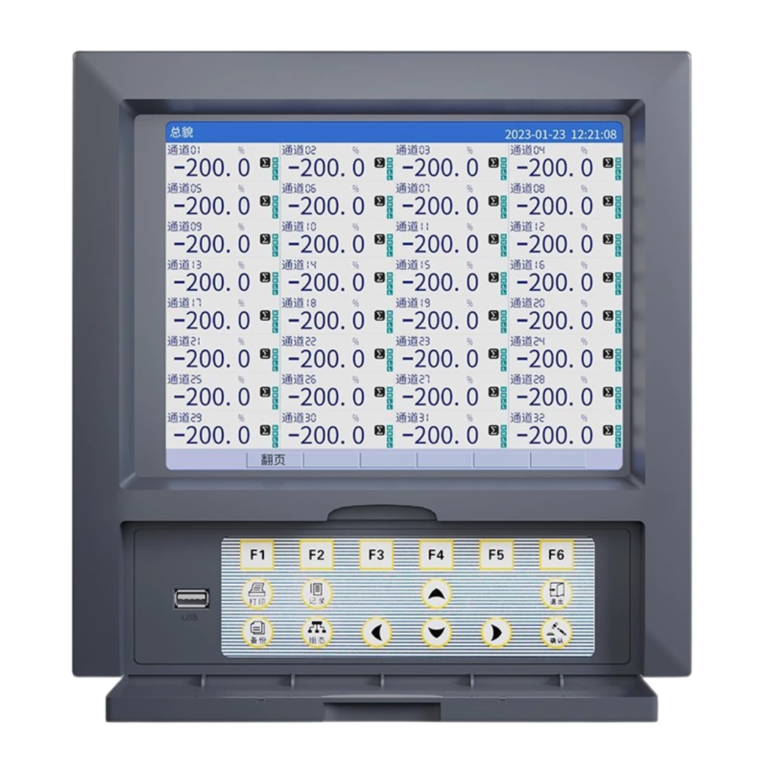

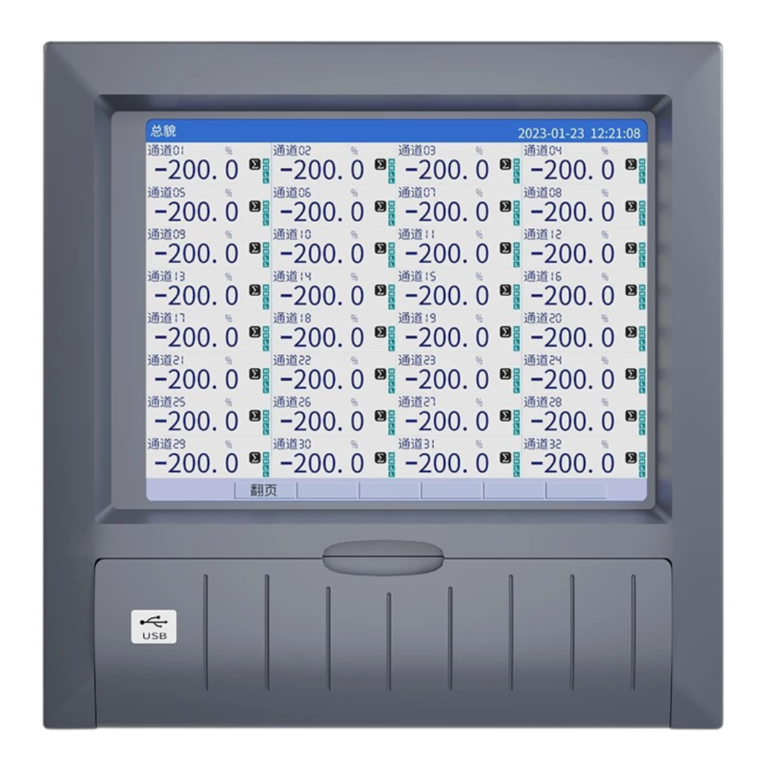

INATEC – R-8000-D color screen paperless recorder integrates multiple functions such as display, processing, recording, accumulation, alarm and power distribution, it uses a 10.4-inch 640 x 480 TFT true color LCD display. Equipped with Chinese display interface.

Advantages

1. Cost-effective : Super multi-channel design, support for all types of signals, CCFL backlight display, data clearer observation
2. Product warranty : From production to delivery, each product has been tested 5, Cengcengbaguan to ensure that the interests of users
3. Customer trust : INATEC focused on automation for 17 years, the product has a complete patent certificate, access to 60 million users of the support and recognition.

Parameters

Information	Spesification
Input signal type	Ⅱ standard signal : (0 ~ 10) mA, (0 ~ 5) V
	Ⅲ standard signal : (4 ~ 20) mA, (1 ~ 5) V
	14 thermocouples : B, E, J, K, S, T, R, N, WRe 5 - 26, WRe 3 - 25, BA 1, BA 2, F 1, F 2
	3 kinds of thermal resistance : Pt 100, Cu 50, JPt 100
	Other signals (0 - 20) mv, (0 - 100) mv, (- 10 - 10) v, (0 - 10) v, (- 5 - 5) v, (0 - 1) v, ) V, resistance 0 - 350 Ω, frequency 0 - 10 KHZ
Isolation	Isolation between channels and ground Resistant to heat greater than 500 VAC, isolation between channels and channels Withstanding voltage > 250 VAC
Powered by	Voltage (100 ~ 240) VAC
	Frequency (47 ~ 63) Hz
	The maximum power consumption 30 VA
Fuse specifications	3A / 250 VAC, slow blow type
Distribution output	Each loop 65 ma, 24 VAC, up to 8 loops
Alarm output	Up to 24 channels, 250 VAC, 3 A normally open relay contacts
Simulated transmission output	Up to 8 Road 4 - 20 ma transmission output
Hardware watchdog	Integrated WATCHDOG chip, to ensure long-term safe and reliable host operation
Real time clock	Using hardware real-time clock, power-down by the lithium battery, the maximum clock error ± 1 minute / month
Power-down protection	All data is saved in NAND FLASH memory, ensuring that all historical data and configuration are lost due to power loss
Communication Interface	Provide RS-485 and RS-232 two kinds of communication interface for users to choose, can be Ethernet connection, but also with the panel printer connection
Protocol	Using R-Bus or ModBus protocol, the communication baud rate has 5 options, 1200 bps, 9600 bps, 19200 bps, 57600 bps and 115200 bps
The sampling period	1 second, that is, 1 second on each channel are sampled once
Record interval	1S, 2S, 5S, 10S, 15S, 30S, 1min, 2min, 4min optional
Display	10.4 inches 640 * 480, 64 color TFT true color liquid crystal display
Size	Overall dimensions 288 mm * 288 mm * 244 mm, hole size 282 mm * 282 mm
Brightness	0 ~ 100 % adjustable
Alarm display	Up to 256 alarm displays can be displayed
Alarm type	Upper limit alarm, upper limit alarm, lower limit alarm, lower limit alarm
Accuracy class	Numerical accuracy of 0.2 % FS
	Curve accuracy 0.5 % FS
Data retention period	About 10 years
