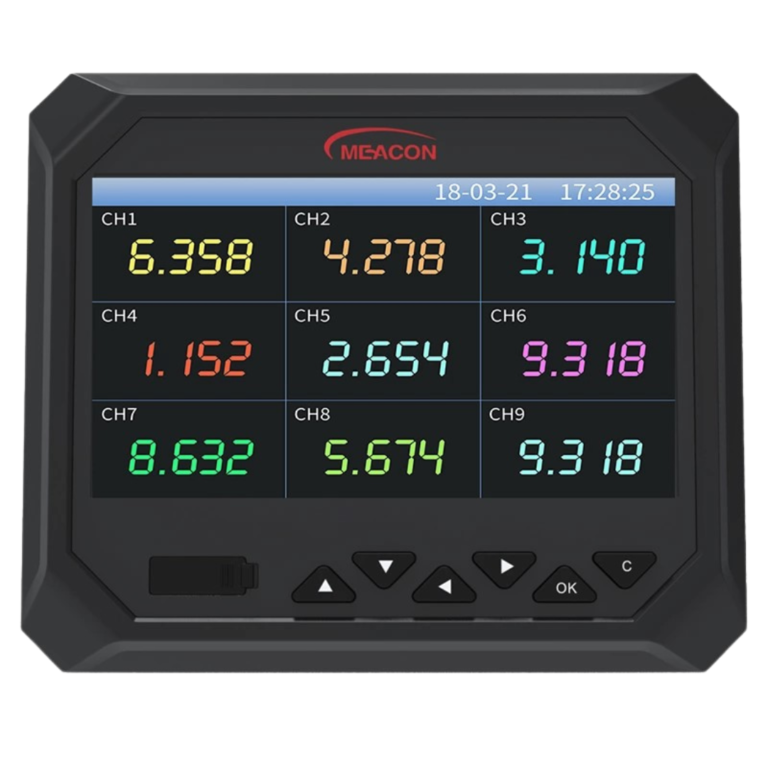

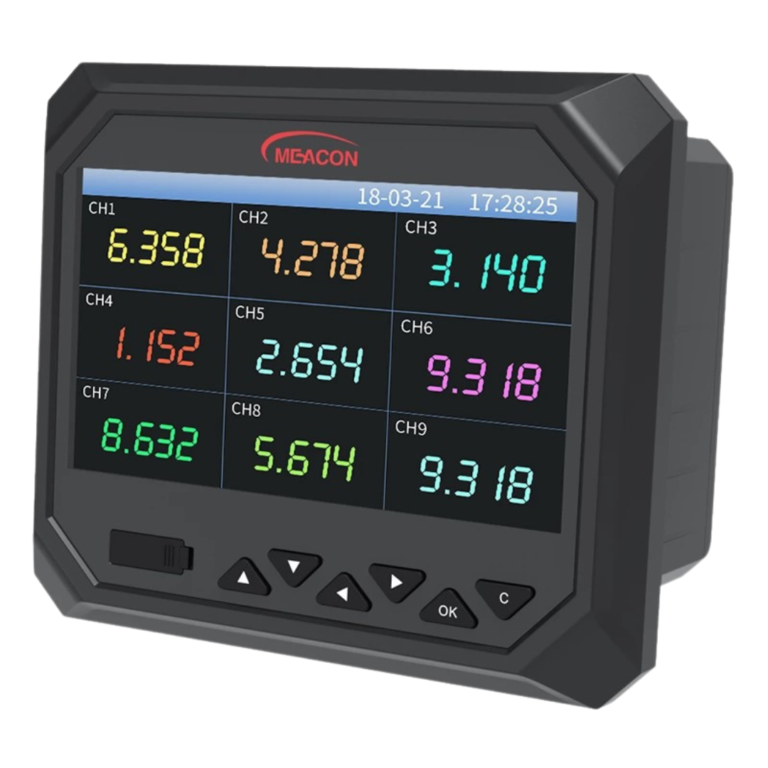

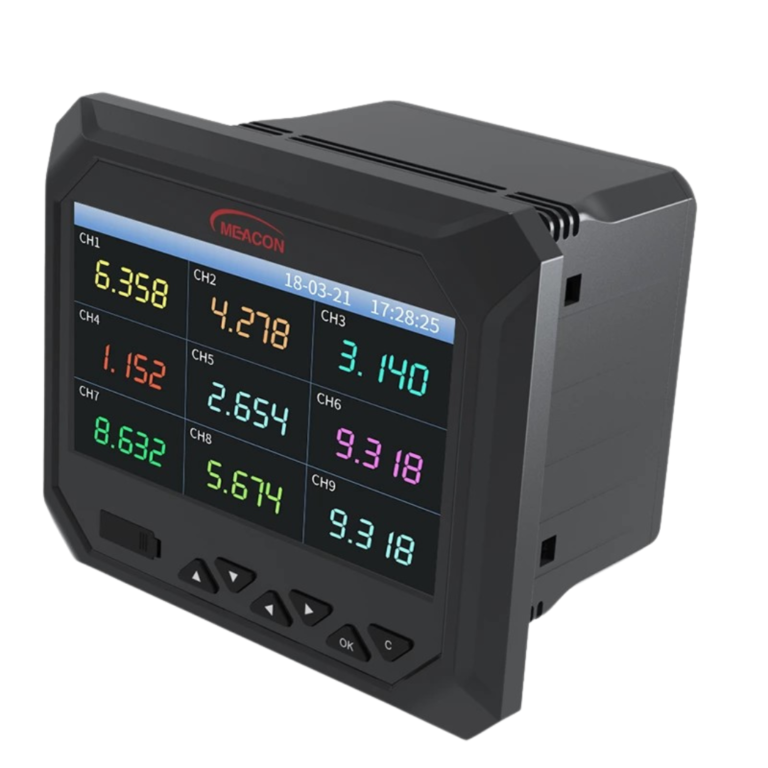

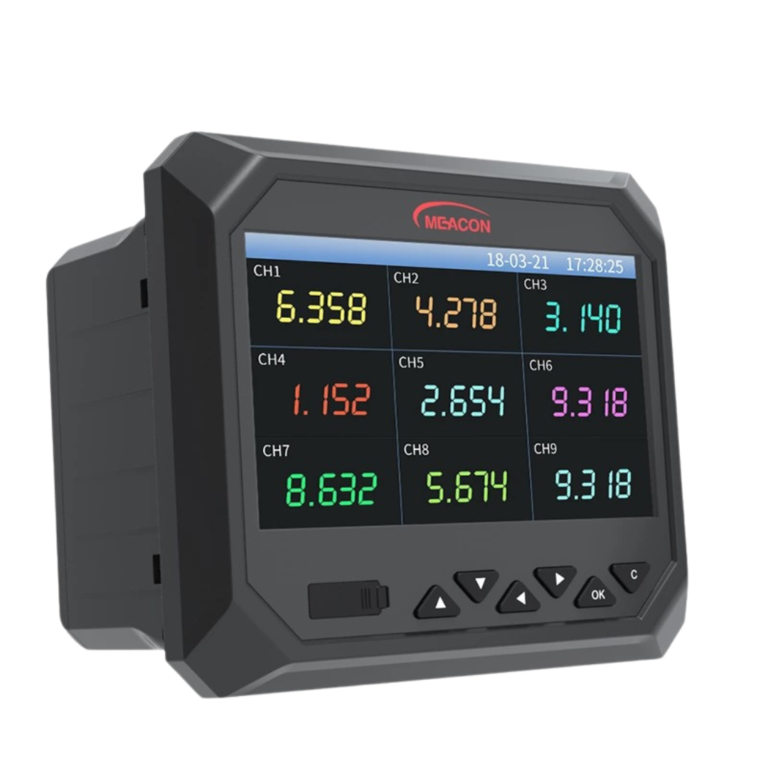

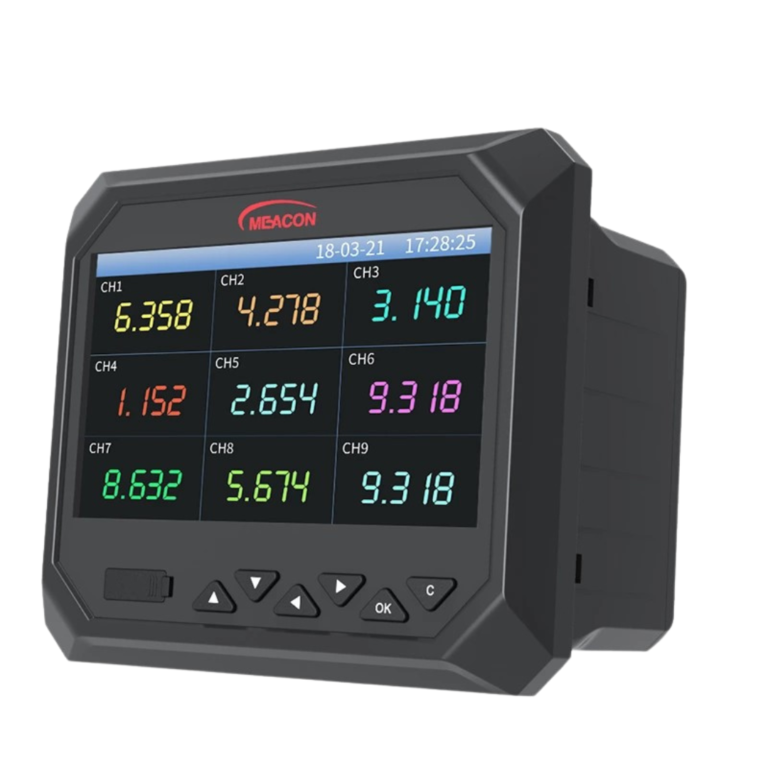

INATEC – R-6000-F Paperless Recorder
INATEC – R-6000-F Paperless recorder is with outstanding specifications features like high performance and powerful extented functions. With high visibility Color LCD display, it is easy to read data from the meter. Universal input, high speed of sampling speed and arruracy make it reliable for industry or reaserach applicaiton.
Characteristics
Inputs channel : Up to 36 channels of universal input.
Power supply : (176 ~ 264) V AC, 47 ~ 63 Hz.
Display : 7 inches TFT display.
Output : Alarm output, RS485 output.
Sampling period : 1s.
Dimensions : 193 * 162 * 144 mm.
Specification
| Information | Spesification |
|---|---|
| Product | Paperless Recorder |
| Model | INATEC - R-6000-F |
| Display | 7 inch TFT display screen |
| Input | Up to 36 channels of universal input |
| Relay output | 2 A / 250 VAC, Max 8 channels |
| Installation panel thickness | 1.5 mm ~ 16.0 mm |
| Weight | 1.06 kg |
| Internal memory | 128 Mbytes Flash |
| Power supply | (176 ~ 264) VAC, 47 ~ 63 Hz |
| Power consumption | 30 VA,15 W |
| Dimensions | 193 * 162 * 144 mm |
| DIN panel cutout | 138.5 * 138.5 mm |
| Relative humidity | (10 ~ 85) % RH |
| Operation temperature | (0 ~ 50) ℃ |
| Relative humidity | (10 ~ 85) % RH |
| Storage condition | Temperature ( - 20 ~ 60) ℃ relative humidity (5 ~ 95) % RH |
