INATEC – R-6000-C Color paperless recorder with fixed point/program segment adopts the control algorithm of differential in advance. The proportional band P, integral time I and derivative time D are mutually independent of each another without affecting each other when being adjusted. The system overshoot can be controlled with strong anti-jamming capability.

Characteristics

Inputs channel : Up to 48 channels of universal input.

Power supply : AC 85 ～ 264 V, 50 / 60 Hz, DC 12 ～ 36 V.

Display : 7 inch TFT display screen.

Output : Alarm output, RS485 output.

Dimensions : 185 * 154 * 176 mm.

Tokopedia

Introduction

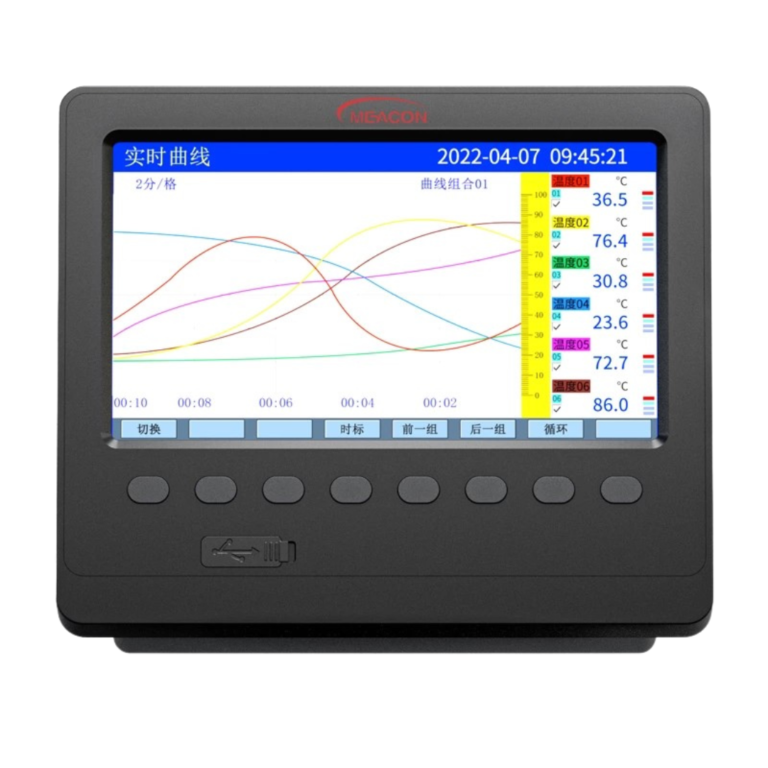

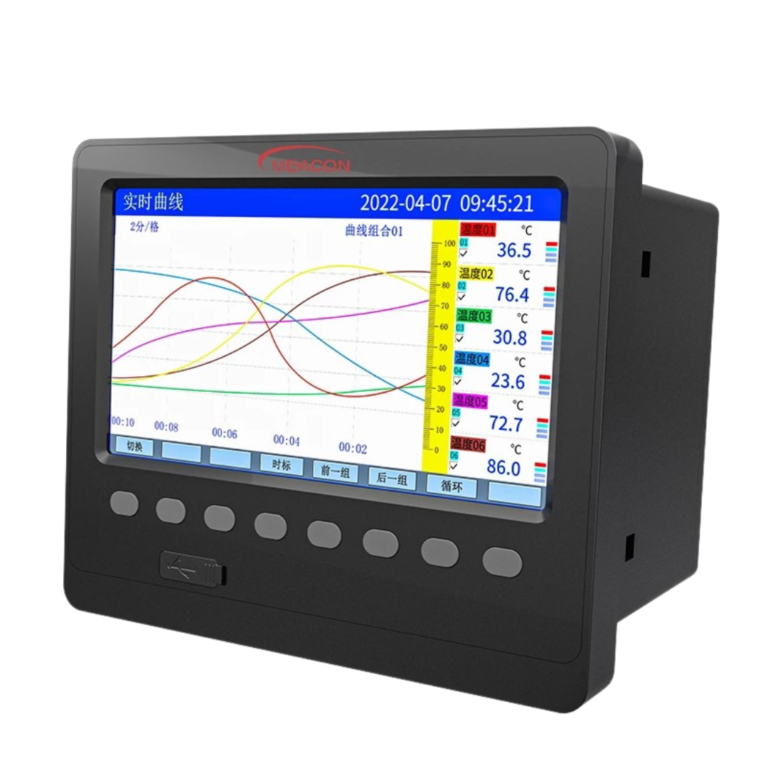

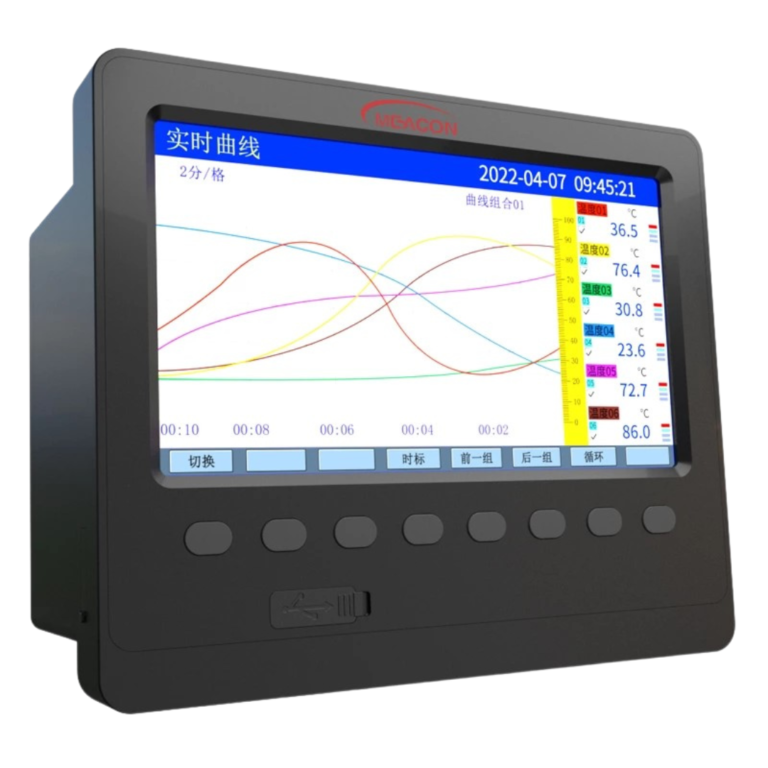

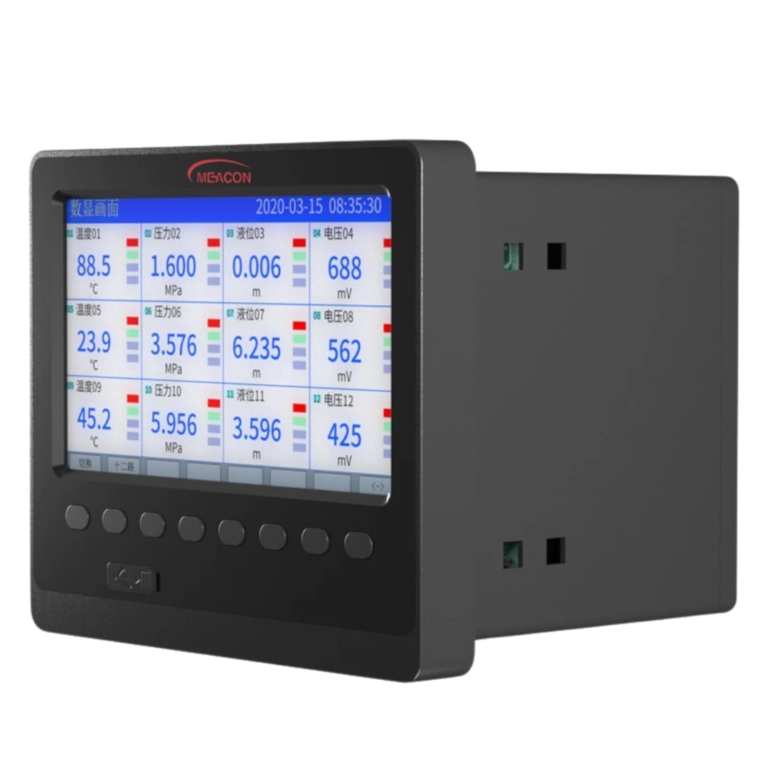

INATEC – R-6000-C paperless recorder is equipped with 24-channel universal input (Able to input by means of configuration: standard voltage, standard current, thermocouple, thermal resistance, frequency, millivolt, etc.). It can be equipped with 8-loop control and 18-channel alarm output or 12-channel analog output, RS 232 / 485 communication interface, Ethernet interface, mini-printer interface, USB interface and SD card socket; it can provide sensor distribution; it owns powerful display function, real-time curve display, real-time control display historical curve retrospection, bar graph display, alarm status display, etc.

Installment Site : Please install the instrument at the following sites.
Installment disk : This instrument is with disk mounted type.
Installed places : The instrument should be installed in the interior, where wind and rain as well as direct solar radiation should be avoided.
Places with good ventilation : To prevent the interior temperature of the instrument from increasing, please install the instrument at the places with good ventilation.
Places with less mechanical vibration : Please choose places with less mechanical vibration to install the instrument.
Horizontal places : Please do not tend to the left or the right when installing this instrument, but should try best to keep horizontal (Able to tend to the back with the maximum of 30°).

Specification

Information	Spesification
Product	Paperless Recorder
Model	INATEC - R-6000-C
Display	7 inch TFT display screen
Input	Up to 48 channels of universal input
Relay output	1 A / 250 VAC, Max 18 channels
Communication	RS485, Modbus-RTU
Internal memory	64 Mbytes Flash
Power supply	AC 85～264 V, 50 / 60 Hz, DC 12～36 V
Outer dimensions	185 * 154 * 176 mm
DIN panel cutout	138 * 138 mm
