INATEC – R-4000-D Paperless Recorder

To ensure quality, starting from the core : In order to ensure that each paperless recorder can be long-term stable operation, we carefully selected materials, the use of cortex-M3 chip Security, to avoid accidents : wiring terminals and power wiring are used to protect the back cover to protect the equipment is not damaged due to wiring. Silicone buttons, long life : Silicone buttons to carry out 2 million tests confirmed its long service life.

Characteristics

Inputs channel : Up to 16 channels of universal input.

Power supply : 220 VAC.

Output : Alarm output, RS485 output.

Dimensions : 144 (W) × 144 (H) × 220 (D) mm.

Tokopedia

Introduction

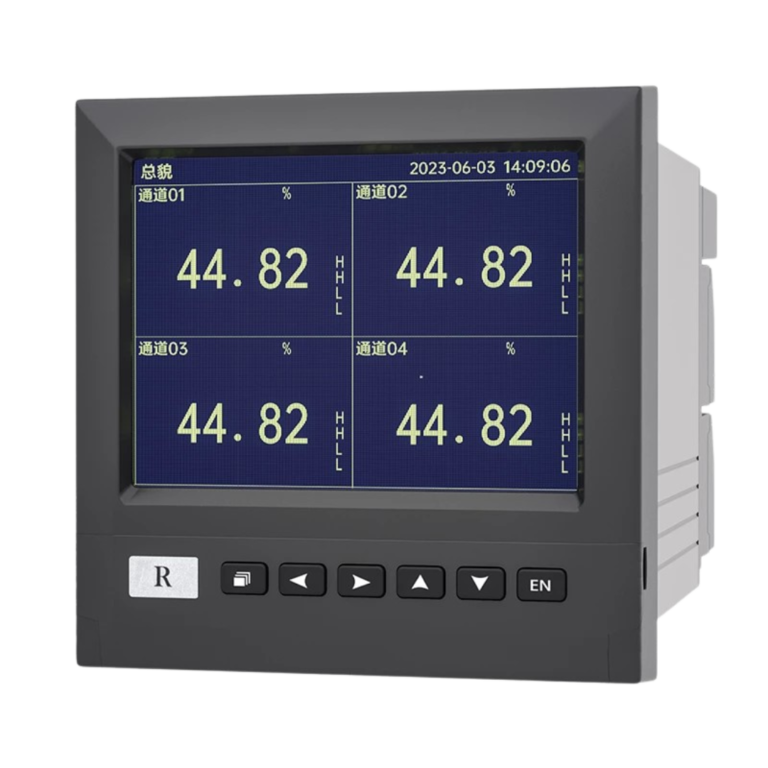

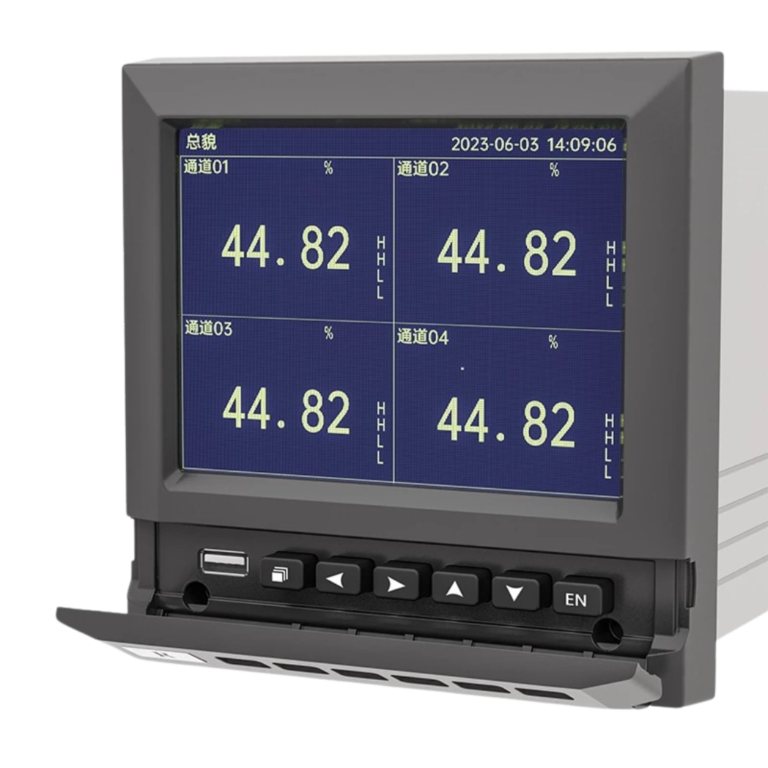

The INATEC – R-4000-D series blue screen paperless recorder can collect, display and record signals from on-site transmitters. It can be transferred through the USB interface, and historical data and curves can be monitored and evaluated through pre-installed data analysis software in the computer. It adopts imported high-speed and high-performance ARM microprocessor, 5.6-inch LED-backlit LCD display and touch buttons. It is mainly used in various industrial sites such as metallurgy, petroleum, chemical industry, building materials, papermaking, food, medicine, heat treatment, etc. It has been applied in Hangzhou Wahaha, Daqing Oilfield, Qinshan Nuclear Power Plant, etc.

Description

To ensure quality, starting from the core : In order to ensure that each paperless recorder can be a long-term stable operation, we carefully selected materials, the use of the cortex-M3 chip,

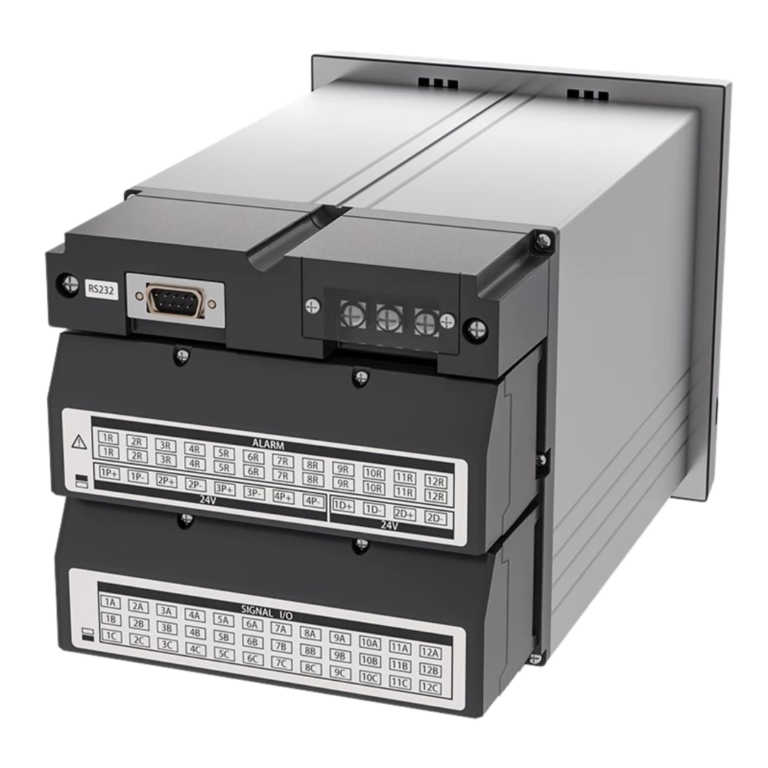

Security, to avoid accidents : wiring terminals and power wiring are used to protect the back cover to protect the equipment is not damaged due to wiring,
Silicone buttons, long life : Silicone buttons to carry out 2 million tests confirmed its long service life.

Specification

Information	Spesification
Product	Paperless Recorder
Model	INATEC - R-4000-D

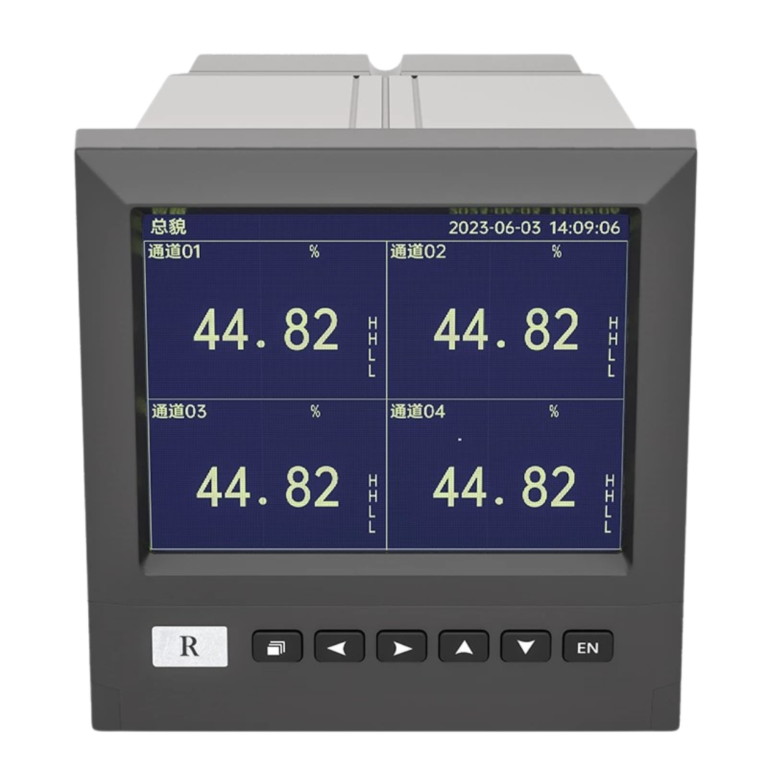

Display	5.6 inch TFT display screen
Input	Up to 16 channels of universal input
Relay output	250 VAC (50 / 60 Hz) / 3 A
Weight	Approx 4.0 Kg (Without optional accessories)
Communication	RS 232, RS 485, Modbus-RTU
Power supply	220 VAC

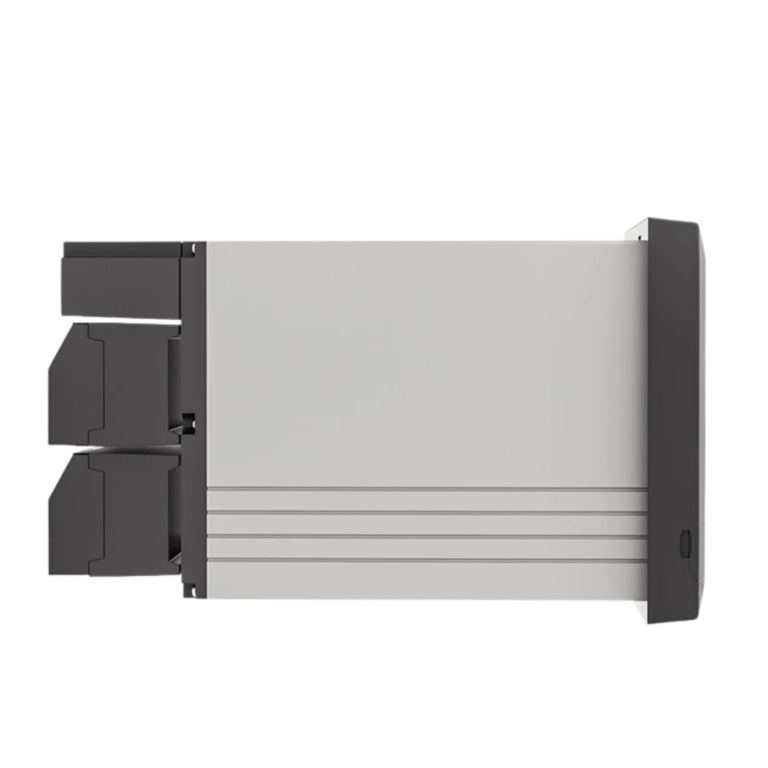

Outer dimensions	144 (W) × 144 (H) × 220 (D) mm
DIN panel cutout	137 * 137 mm
