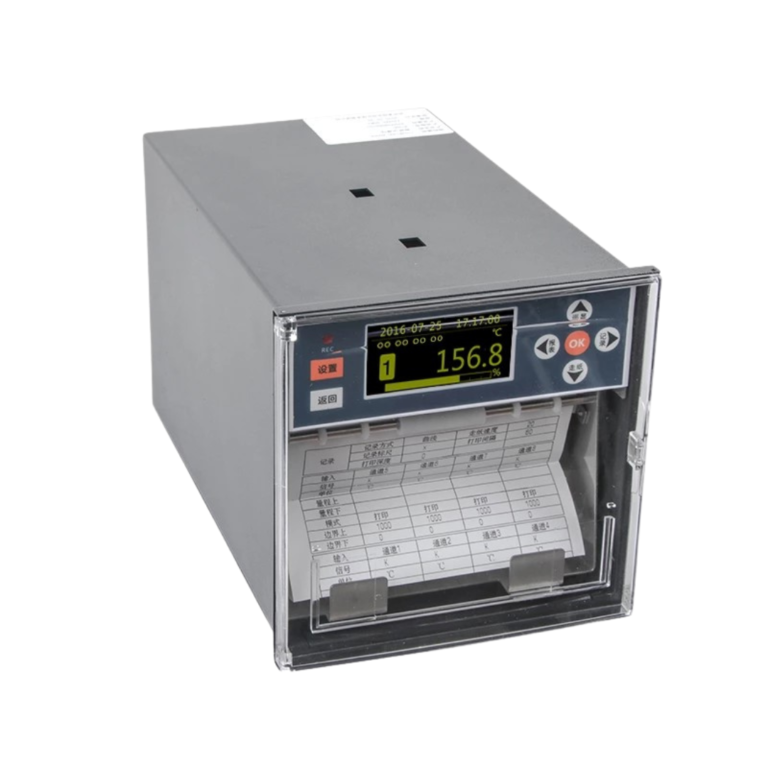

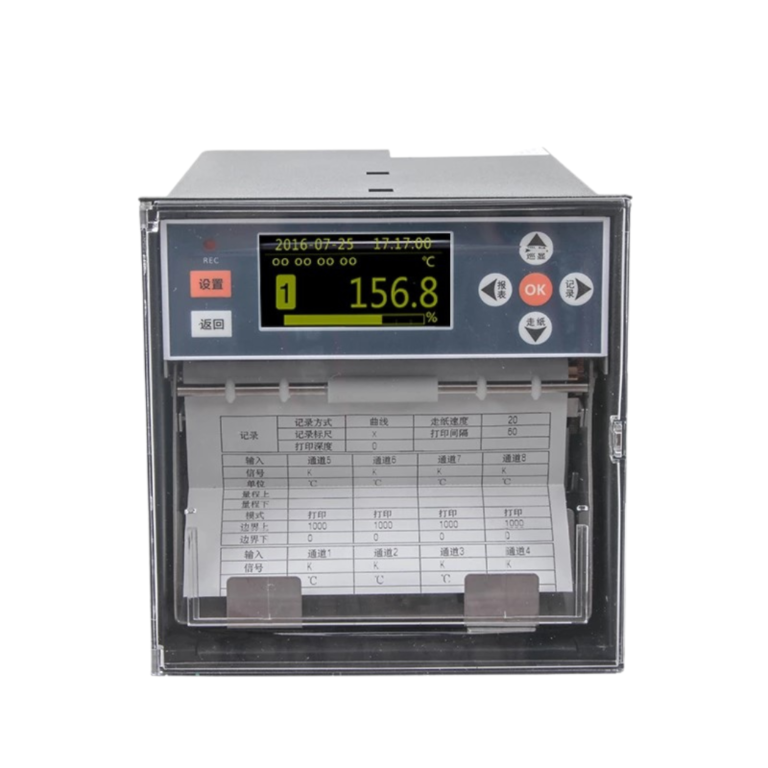

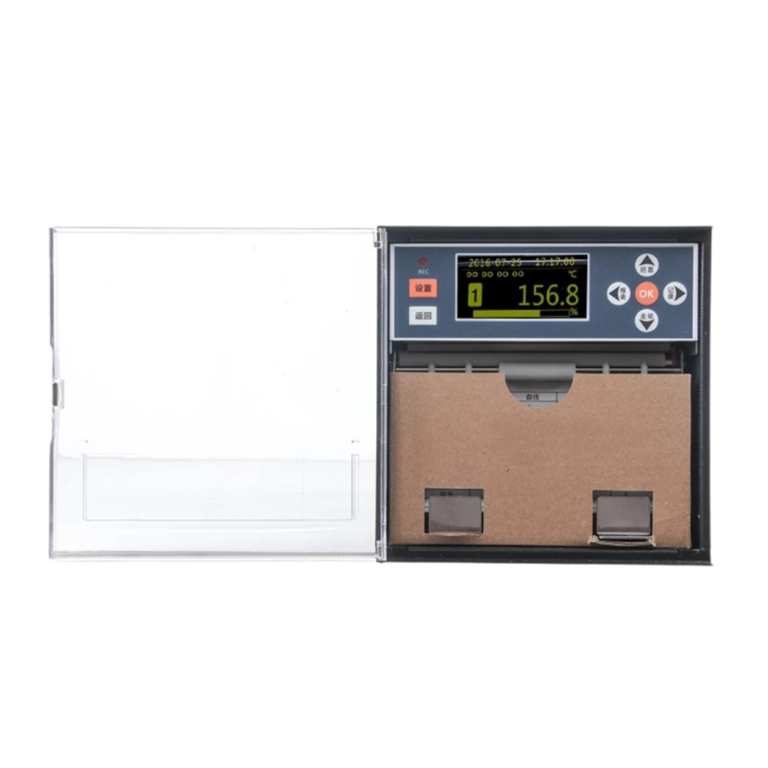

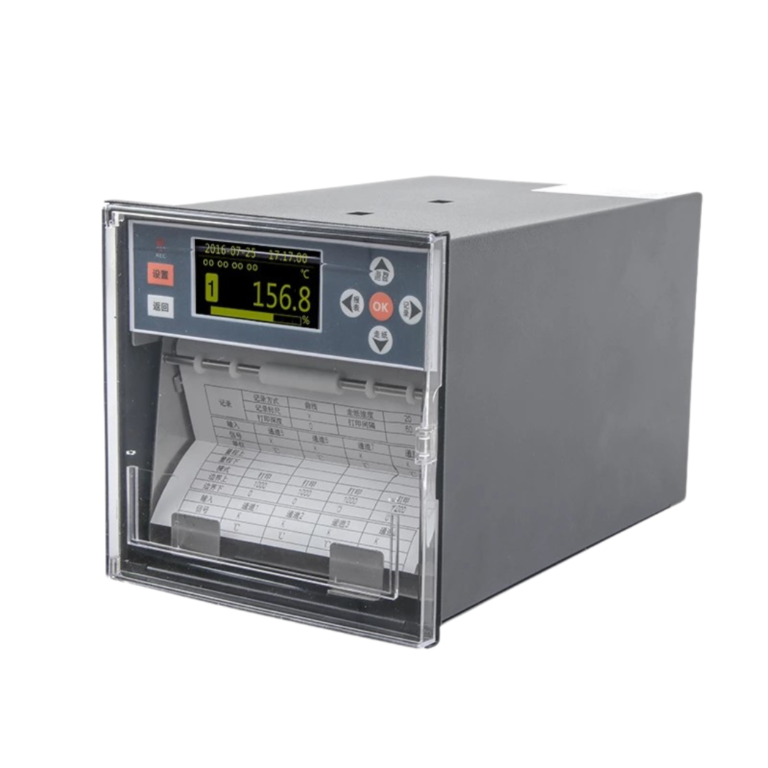

INATEC – R-1200 chart recorder is a precision measuring instrument with perfect definition, high precision, and reliable, multi-functions, easy operated by using unique heat-printing record and advanced technology of microprocessor controlling. It can be recorded and printed uninterrupted.

Characteristics

Inputs channel : Up to 8 channels of universal input.

Power supply : 100 – 240 VAC，47 – 63 Hz, maximum power＜40 W.

Output : Alarm output, RS485 output.

Chart speed : Free setting range of 10 – 2000 mm / h.

Dimensions : 144 * 144 * 233 mm.

Size : 138 mm * 138 mm.

Tokopedia

Introduction

INATEC – R-1200 Paper recorder embodies many functions, such as signal processing, display, printing, alarming and so on, and it is an ideal device to collect, analyze and store data and information in industrial processes. This device is mainly applied on the industrial spots like metallurgy, petrol, chemicals, building material, papermaking, food, medicine, heat or water treatment industry.

Description

Display : Rich information is presented simultaneously, such as timing, data, chart, and alarming and so on, two types of display : set-channel and circular.
Input function : A maximum of 8 universal channels, receiving many types of signals like current voltage, thermocouple and thermal resistance and so on.
Alarming : A maximum of 8 relay alarms.
Power supply : A maximum of 1 channel power output at 24 voltage.
Recording : The imported vibration-resistant thermal printer has 832 thermal printing points within 104 mm and it has zero consumption of pens or ink and no errors caused by the pen’s position; It records in the form of data or charts and for the latter form, it also prints scale label and channel tag.
Real-time timing : The high accurate clock can work normally when the power is shut down.
Separate channel charts : By setting up the recording margin, different channel charts are separated.
Chart speed : Free setting range of 10 – 2000 mm / h.

Specification

Information	Spesification
Product	Paperless Recorder
Model	INATEC - R-1200
Display	LCD display screen
Input	Voltage : (0 - 5) V / (1 - 5) V / (0 - 20) mV / (0 - 100) mV Electric current : (0 - 10) mA / (4 - 20) mA Thermocouple : B, E, K, S, T Thermal resistance : Pt 100, Cu 50, Cu 100
Output	Up to 2 current output channels (4 to 20 mA)
Sampling period	600 ms
Chart speed	10 mm / h -- 1990 mm / h
Communication	RS 232 / RS 485 (Need Customization)
Power supply	220 VAC, 24 VDC
Precision	0.2 % FS
Shorter mounting depth	144 mm
DIN panel cutout	138 * 138 mm
