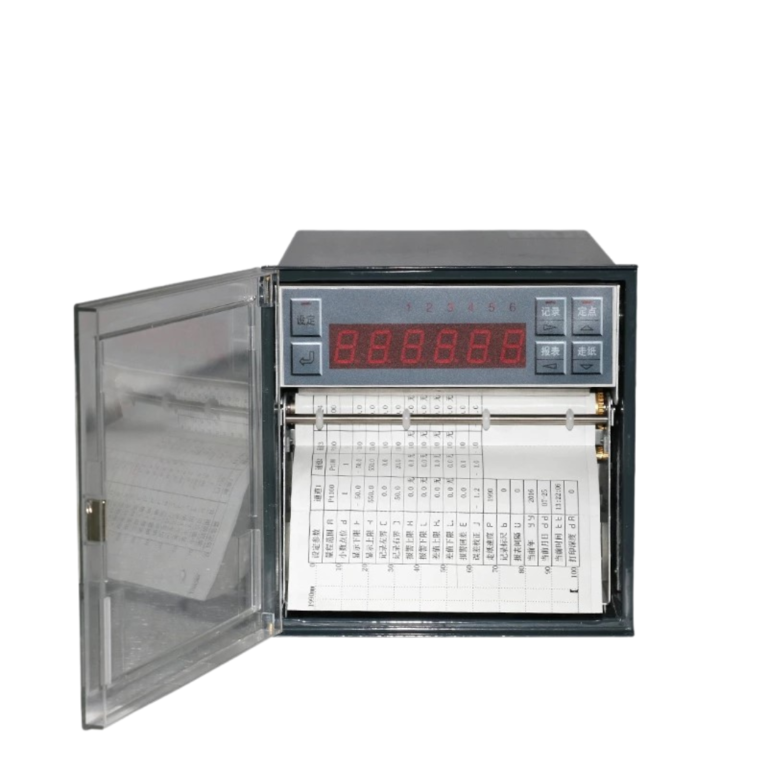

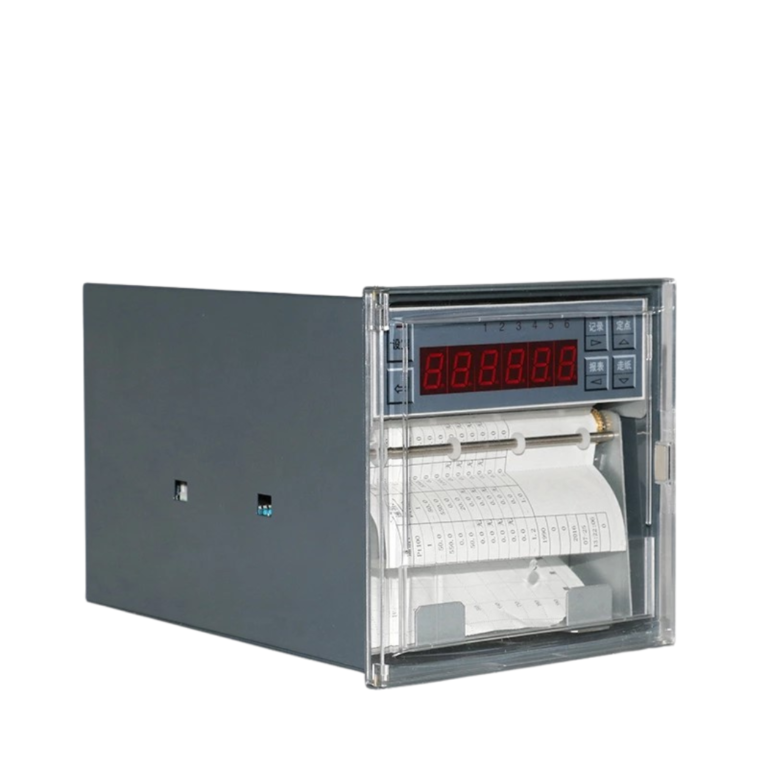

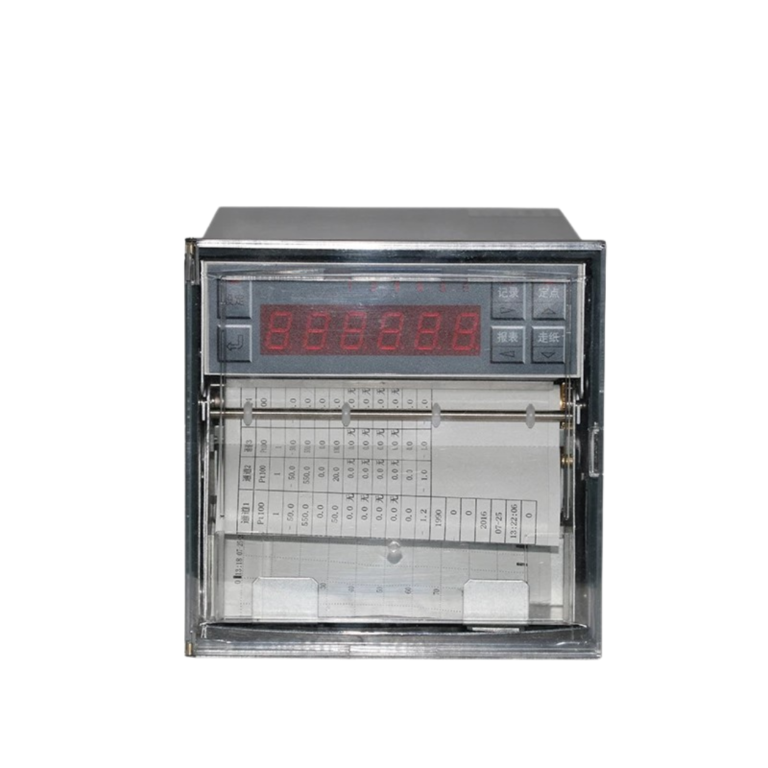

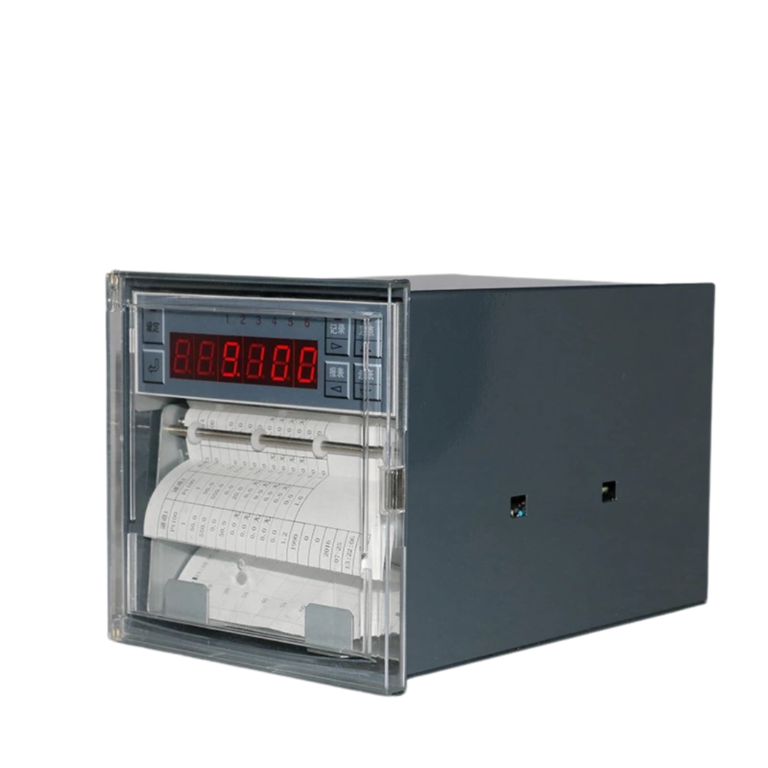

INATEC – R-1000 Chart Recorder

INATEC – R-1000 recorder is a precision measuring instrument with perfect definition, high precision, and reliable, multi-functions, easy operated by using unique heat-printing record and advanced technology of microprocessor controlling. It can be recorded and printed uninterrupted.

Characteristics

Inputs channel : Up to 8 channels.

Power supply : 24 VDC or 220 VAC.

Output : 4 – 20 mA output, RS485 or RS232 output.

Chart speed : 10 mm / h — 1990 mm / h.

Tokopedia

Advantages

Bringing you the highest reliability.
Full multi range.
Standard alarm display / Printing function.
Easy to Read.
Powerful Math Functions.
A Wealth of Recording and Printing Functions.
24 VDC / 220 VAC Power supply.

Specification

Information	Spesification
Product	LED display
Model	INATEC - R-1000
Channel	1 / 2 / 3 / 4 / 5 / 6 / 7 / 8
Input	Voltage : (0 - 5) V / (1 - 5) V / (0 - 20) mV / (0 - 100) mV Electric current : (0 - 10) mA / (4 - 20) mA Thermocouple : B, E, K, S, T Thermal resistance : Pt 100, Cu 50, Cu 100
Output	Up to 2 current output channels (4 to 20 mA)
Sampling period	600 ms
Chart speed	10 mm / h -- 1990 mm / h
Communication	RS 232 / RS 485 (Need Customization)
Precision	0.2 % FS
Maximum power consumption	Less than 30 w
Temperature range	0 ~ 50 C
Humidity range	0 ~ 85 % RH
Power source	220 VAC, 24 VDC
Dimensions	144 * 144 * 200 mm
Hole size	138 + 1 * 138 + 1 mm
