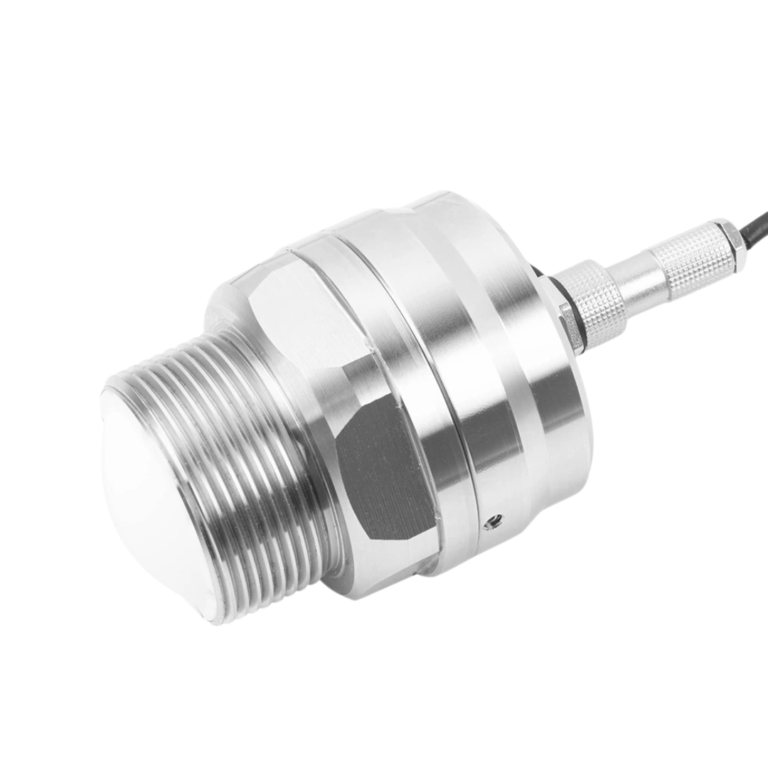

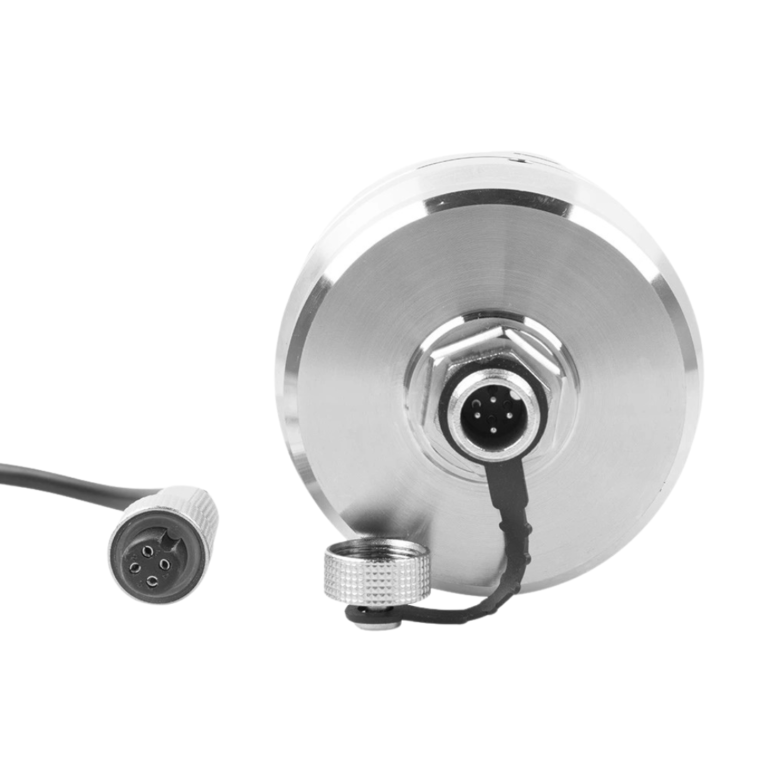

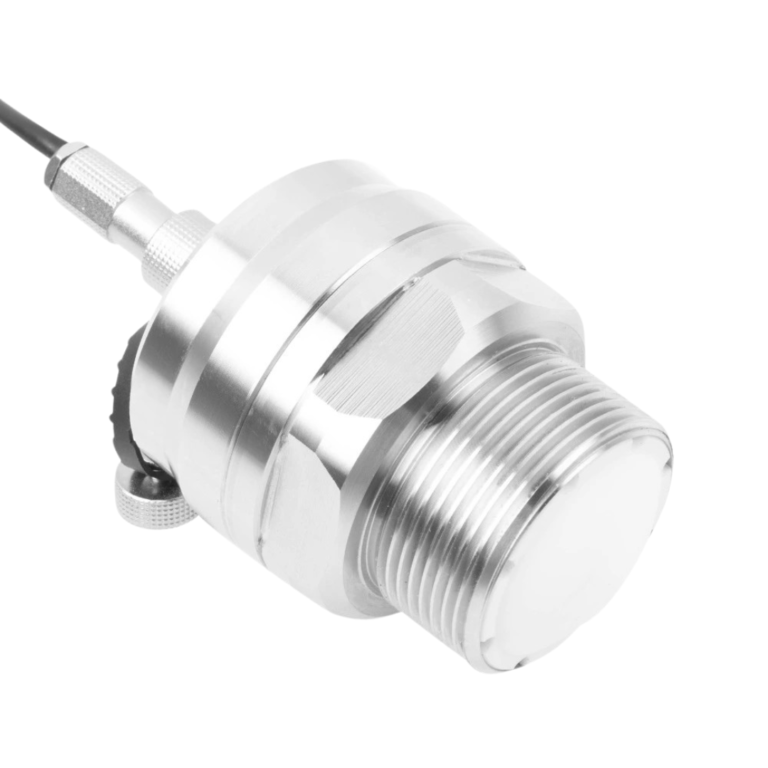

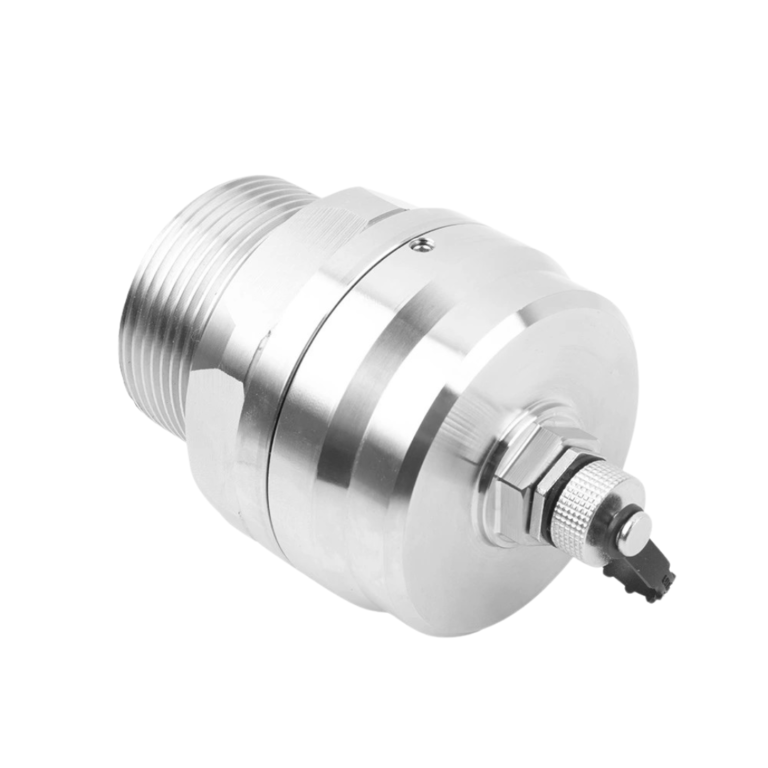

INATEC – WSR-300 60 G Radar Level Transmitter

Characteristics

Measure range : 0.1 m ~ 30 m.

Transmission frequency : 60 GHz ~ 64 GHz.

Blind zone : ≤ 0.10 m.

Accuracy : ± 3 mm.

Tokopedia

Introduction

This radar level transmitter is a frequency modulated continuous wave (FMCW) radar product working at (60 ~ 64) GHz, which can conduct non-contact continuous measurement of the height of liquid in closed or open containers in transmitter has a long detection distance and low beam energy, and can be installed in various metal and non-metal containers or pipelines. The radar level gauge has no harm to the human body and the environment, and has the advantages of not being affected by the specific gravity of the medium, not being affected by the change of the dielectric constant, and not requiring on-site calibration.

Features

Using 60 GHz FMCW technology, high resolution and stable detection performance.
04 GHz working bandwidth, higher measurement resolution and measurement accuracy.
The narrowest antenna beam angle is 6°, which makes the installation more convenient.
Integrated lens design, compact size.
Display controller and liquid level gauge adopt separate design, which can be customized.

Specification

Information	Spesification
Product	Radar Level Meter
Model	INATEC - WSR-300
Measure range	0.1 m ~ 30 m
Modulation waveform	FMCW
Transmission frequency	60 GHz ~ 64 GHz
Blind zone	≤ 0.10 m
Beam angle	± 6°
Accuracy	± 3 mm
Resolution	± 1 mm
Response time	500 ms
Ingress protection	IP67
Communication output	RS485
Power supply	(9 ~ 36) VDC
Power consumption	≤ 1 W
Cable	7 * 0.3 mm²
Dielectric constant	≥ 1.5
Process pressure	(-0.1 ~ 0.6) MPa
Process temperature	(- 40 ~ 85) ℃
