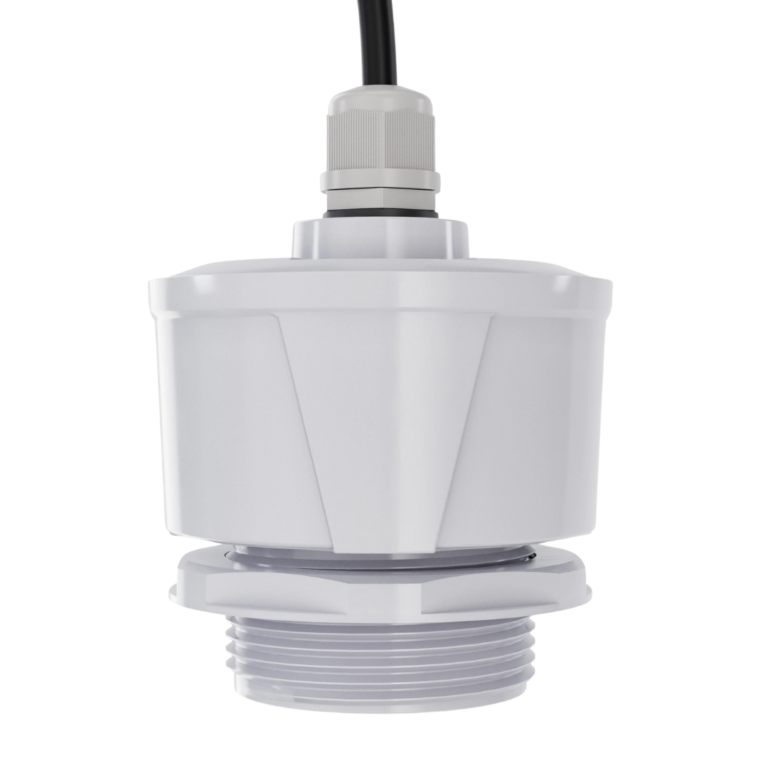

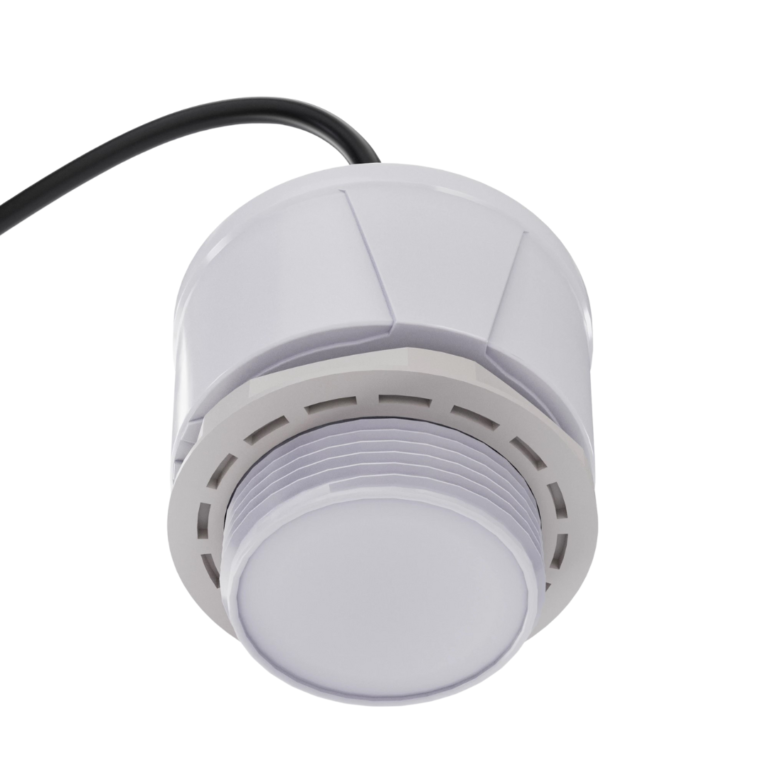

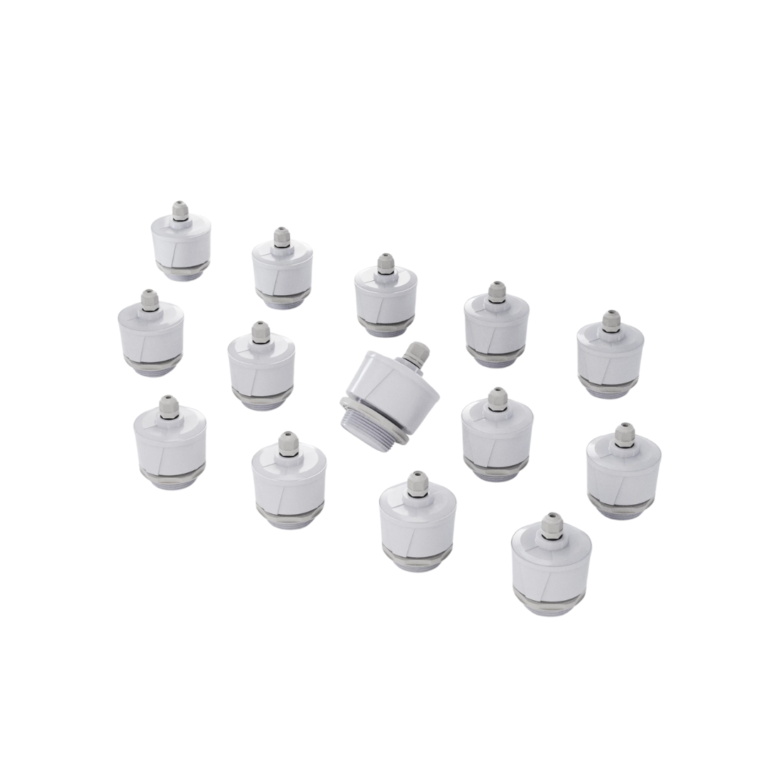

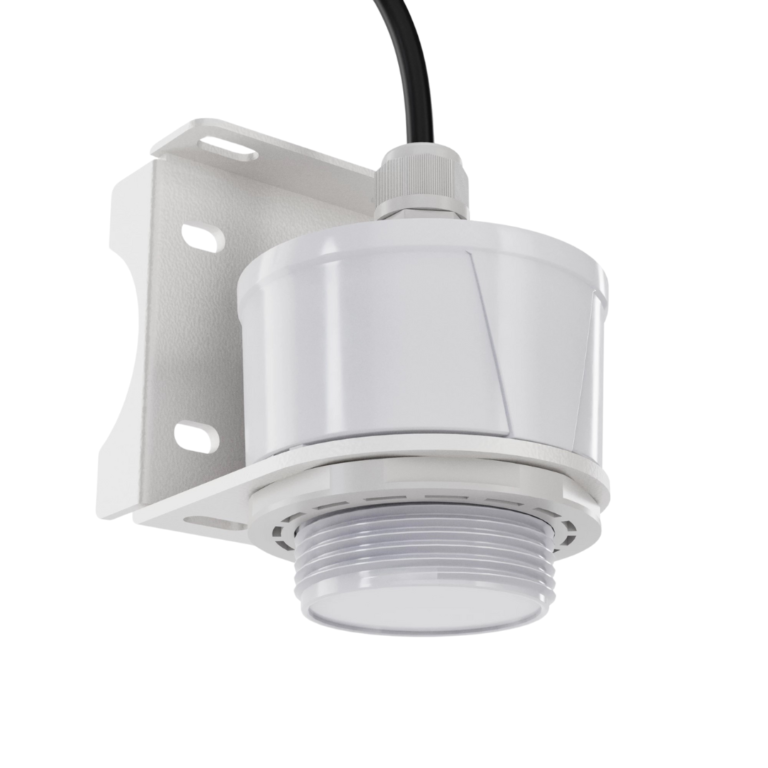

INATEC – WSR-200 80 G Radar Level Meter
The radar level meter has a long detection distance and low beam energy, and can be installed in various metal and non-metal containers or pipelines. It is suitable for occasions where dust, water mist, inert gas and steam exist. The radar level meter has no harm to the human body and the environment, and has the advantages of not being affected by the specific gravity of the medium, not being affected by the change of the dielectric constant, and not requiring on-site calibration.
Characteristics
Measure range : 8 m / 15 m.
Blind zone : ≤ 0.15 m.
Antenna Angle : ± 3°.
Accuracy : ± 5 mm.
Introduction
Radar level transmitter can perform non-contact continuous measurement of the height of liquids in closed or open containers in industrial production processes.
Radar level measurement is a highly reliable and accurate method for measuring the level of liquids or solids in a variety of industrial applications. This technology utilizes electromagnetic waves to determine the distance between the radar sensor and the surface of the material being measured. One of the key advantages of radar level measurement is its ability to provide accurate measurements even in harsh environments where other methods may fail. This includes applications where there are extreme temperatures, pressures, or levels of dust or vapors. Additionally, radar level measurement is not affected by the properties of the material being measured, making it suitable for use with a wide range of liquids and solids.
Another benefit of radar level measurement is its ability to provide continuous, real-time monitoring of material levels. This allows for more efficient and precise control of industrial processes, reducing waste and improving overall productivity. Additionally, radar level measurement can be integrated with other process control systems, providing a comprehensive solution for industrial monitoring and control.
Specification
| Information | Spesification |
|---|---|
| Product | Radar Level Meter |
| Model | WSR-200 |
| Measure range | 8 m / 15 m |
| Modulation waveform | FMCW |
| Transmission frequency | 79 GHz ~ 81 GHz |
| Blind zone | ≤ 0.15 m |
| Antenna angle | ± 3° |
| Accuracy | ± 5 mm |
| Repeatability | ± 2 mm |
| Refresh rate | ≥ 500 ms |
| Ingress protection | IP67 |
| Transmission output | (4 ~ 20) mA |
| Communication output | RS485 |
| Power supply | (9 ~ 36) VDC |
| Working current | ≤ 80 mA, 24 VDC |
| Power consumption | ≤ 1.9 W |
| Dielectric constant | ≥ 3 |
| Process pressure | (-0.1 ~ 0.3) MPa |
| Process temperature | (- 40 ~ 85) ℃ |
