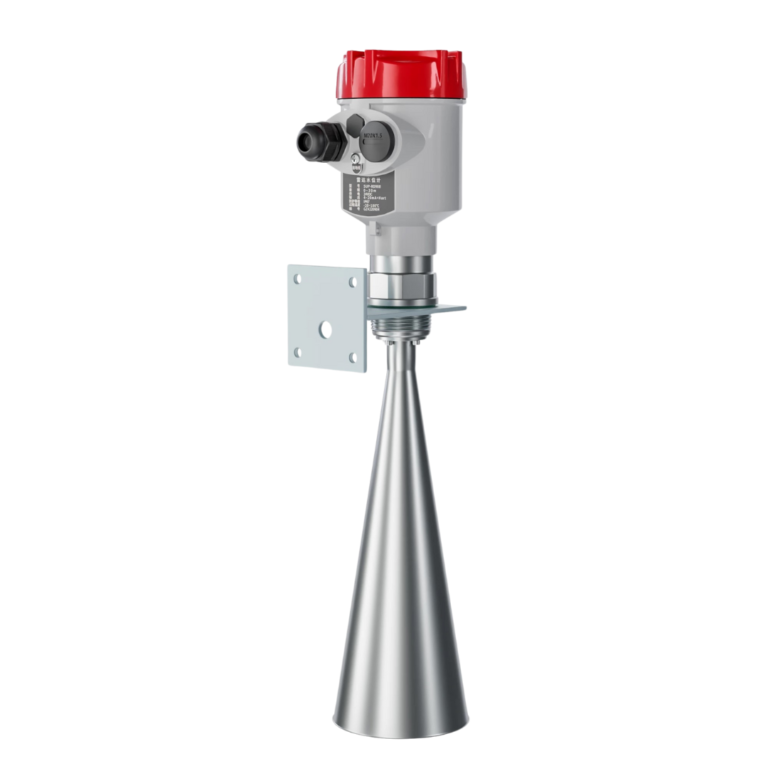

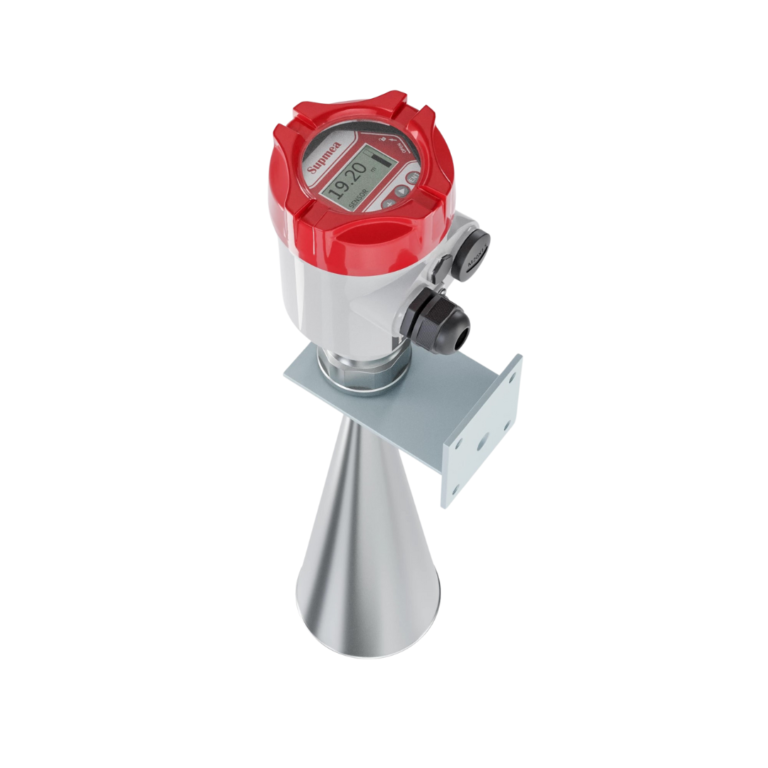

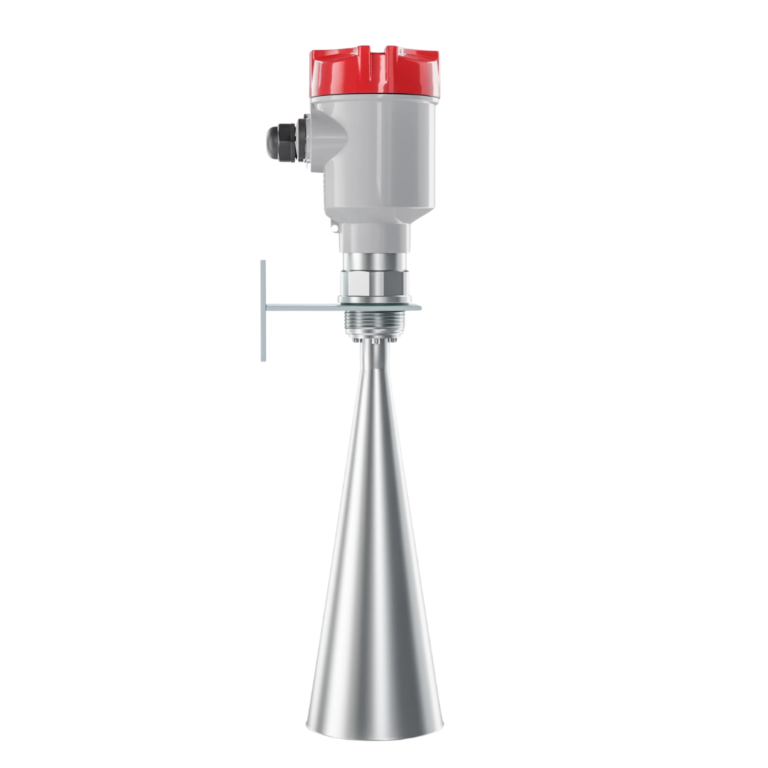

INATEC – RD-908 Radar Level Meter For River
INATEC – RD-908 Radar level meter with top-down installation of a Micropilot sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Characteristics
Range : 0 ~ 30 m.
Accuracy : ± 3 mm.
Application : Rivers, Lakes, Shoal.
Frequency Range : 26 GHz.
Introduction
INATEC – RD-908 Radar level meter is a safe solution even under extreme process conditions (pressure, temperature) and vapors. It can also be used in hygienic applications for non-contact level measurement. it versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry.
Specification
| Information | Spesification |
|---|---|
| Product | Radar Level Meter |
| Model | INATEC - RD-908 |
| Accuracy | ± 05 mm (Range 10 m) ± 10 mm (Range 30 m) |
| Application | Rivers, Lakes, Shoal |
| Process Connection | Thread G1½ A" / Frame / Flange |
| Medium Temperature | - 40 ℃ ~ 100 ℃ |
| Process Pressure | Normal pressure |
| Ingress protection | IP67 |
| Frequency Range | 26 GHz |
| Signal Output | 4 - 20 mA |
| RS485 / Modbus | |
| Power supply | DC (6 ~ 24 V) / Four-wire DC 24 V / Two-wire |
