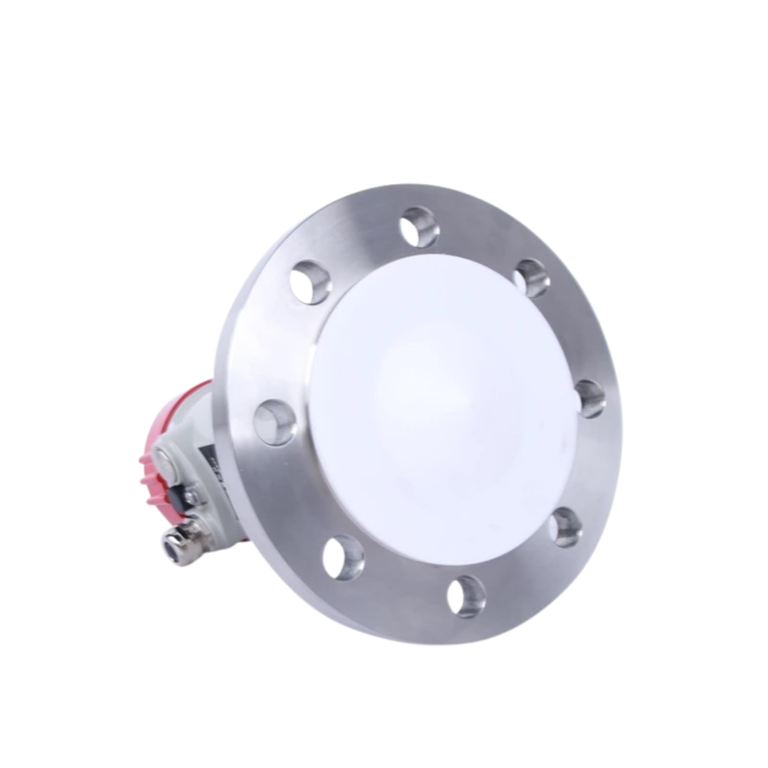

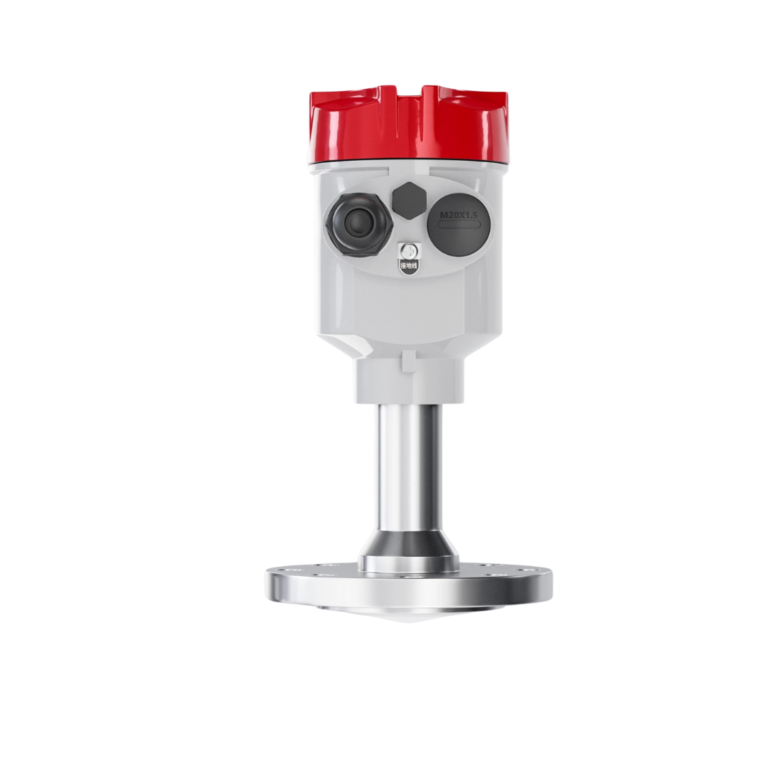

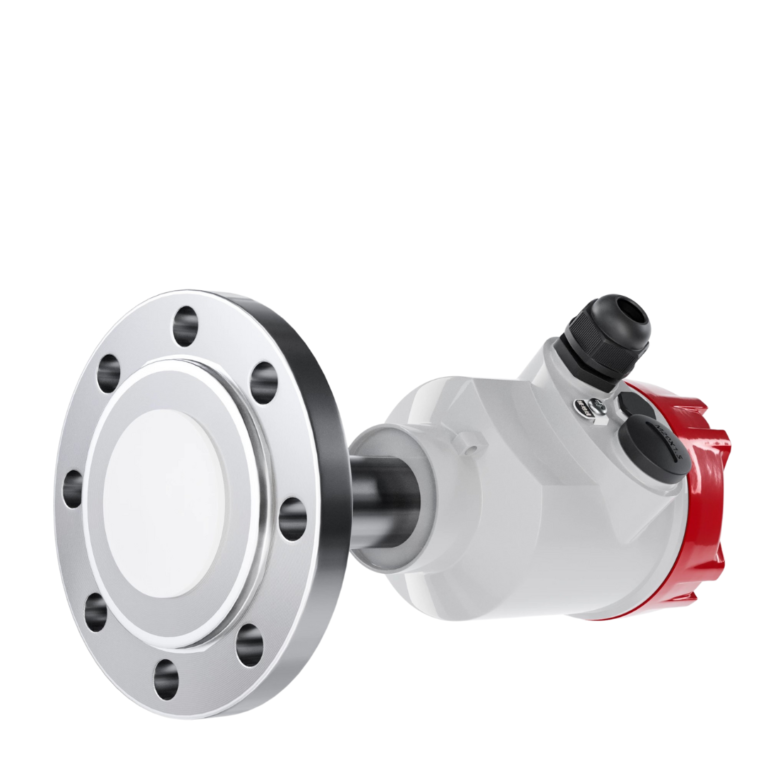

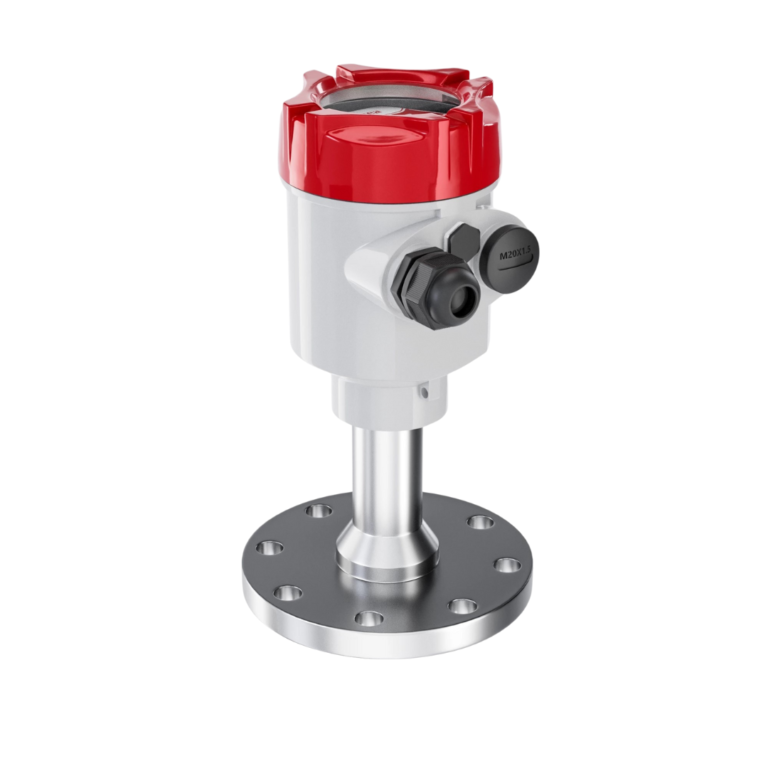

INATEC – RD-906 26 GHz Tank Radar Level Meter
INATEC – RD-906 26 GHz Tank radar level meter with high frequency, measurement of solid and low dielectric constant of the best choice.
Characteristics
Range : 0 ~ 20 m.
Accuracy : ± 03 mm.
Application : Tank.
Frequency Range : 26 GHz.
Specification
| Information | Spesification |
|---|---|
| Product | Radar Level Meter |
| Model | INATEC - RD-906 |
| Accuracy | ± 10 mm (Range 10 m) ± 15 mm (Range 20 m) |
| Application | Tank |
| Process Connection | Thread, Flange |
| Medium Temperature | (- 40 ~ 80) ℃ |
| Process Pressure | Normal pressure |
| Accuracy | ± 10 mm ~ ± 15 mm |
| Protection Grade | IP67 |
| Frequency Range | 26 GHz |
| Signal Output | 4 - 20 mA (Two-wire / Four) |
| RS485 / Modbus | |
| Power supply | DC (06 ~ 24 V) / Four-wire DC 24 V / Two-wire |
