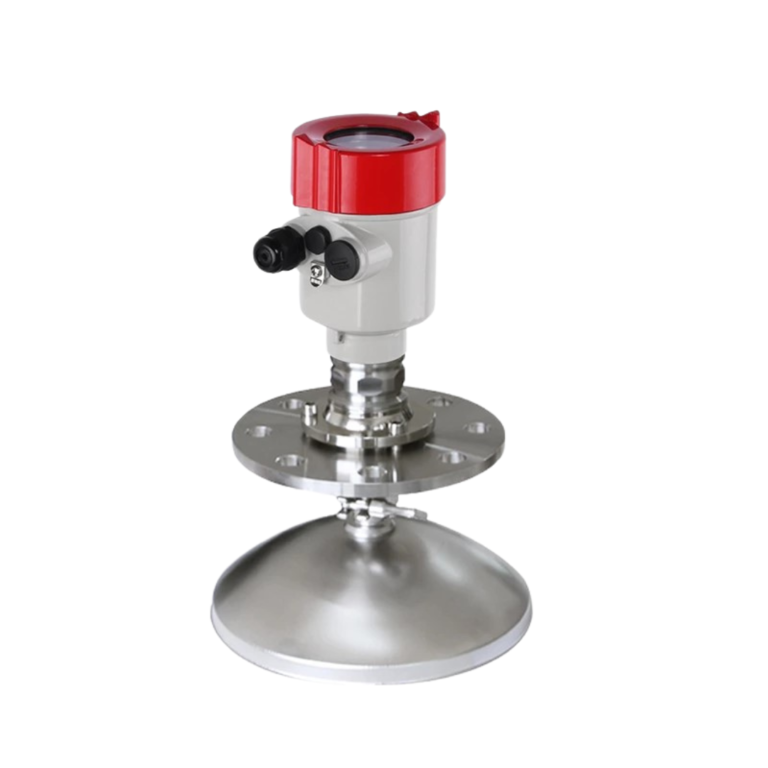

INATEC – RD-904 Solid Material Radar Level Meter
INATEC – RD-904 Solid material Radar level meter with high frequency, measurement of solid and low dielectric constant of the best choice.
Characteristics
Range : 0 ~ 80 mm.
Accuracy : ± 15 mm.
Application : Solid material, Strong dust, easy to crystallize, condensation occasion.
Frequency Range : 26 GHz.
Introduction
INATEC – RD-904 Radar level meter adopts a recommended industry emission frequency of 26GHz. The measurement range of up to 80 meters, covering a large reservoir water level measurement.
Specification
| Information | Spesification |
|---|---|
| Product | Radar Level Meter |
| Model | INATEC - RD-904 |
| Measure range | 0 - 80 meters |
| Application | Solid material, Strong dust, easy to crystallize, condensation occasion. |
| Process connection | Universal flange |
| Medium Temperature | (- 40～130) °C (Standard type) (- 40～230) °C (High temperature type) |
| Process pressure | - 0.1 ~ 0.3 MPa |
| Accuracy | ± 25 mm |
| Ingress protection | IP67 |
| Frequency range | 26 GHz |
| Signal output | 4 - 20 mA (Two-wire / Four) |
| RS485 / Modbus | |
| Power supply | DC (6 ~ 24 V) / Four-wire DC 24 V / Two-wire |
