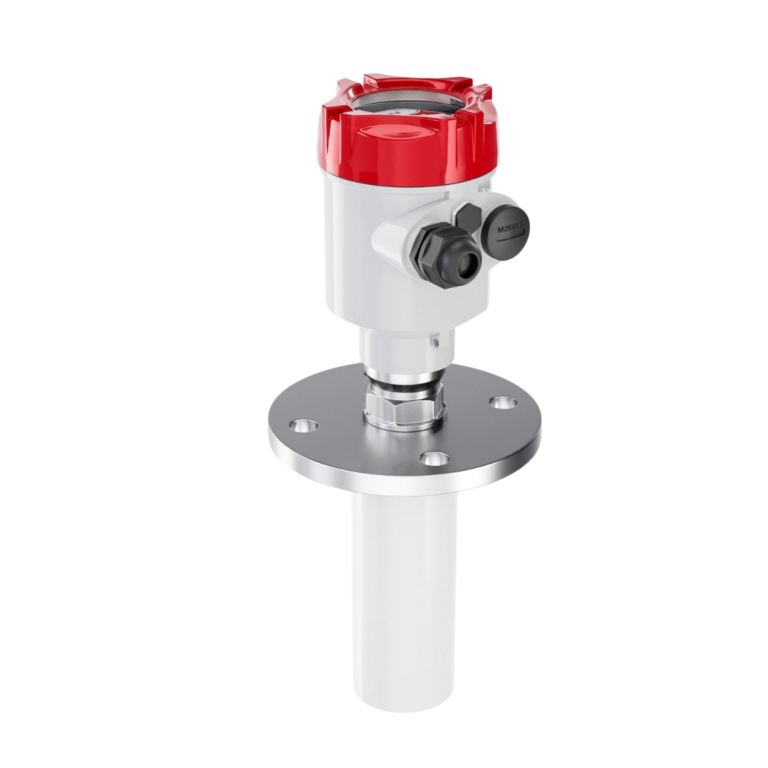

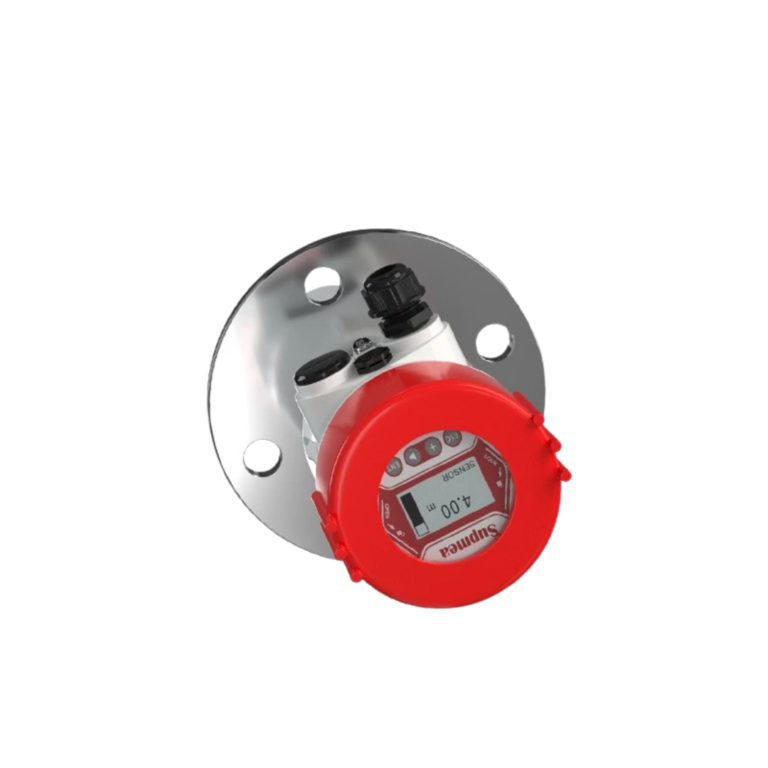

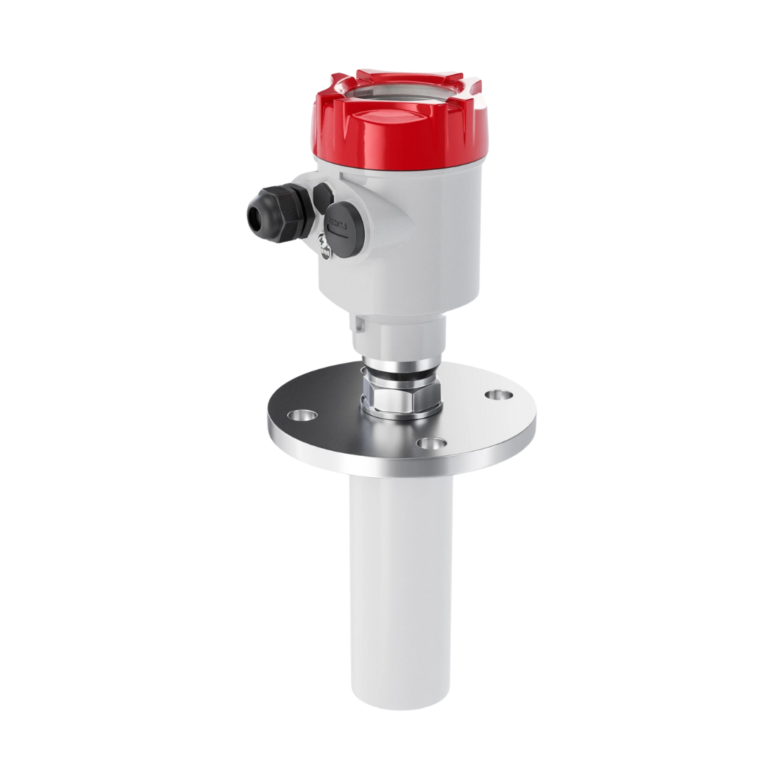

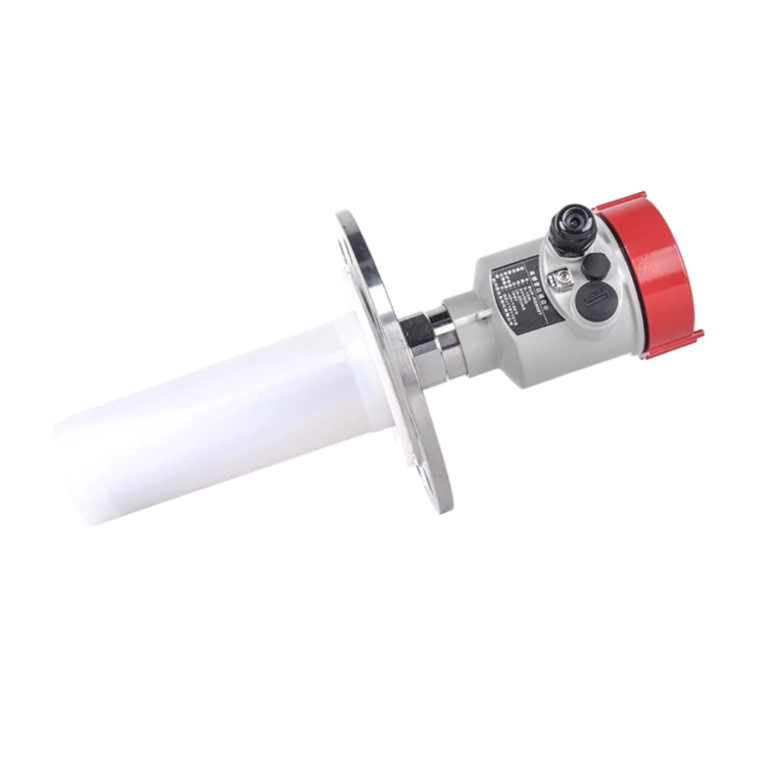

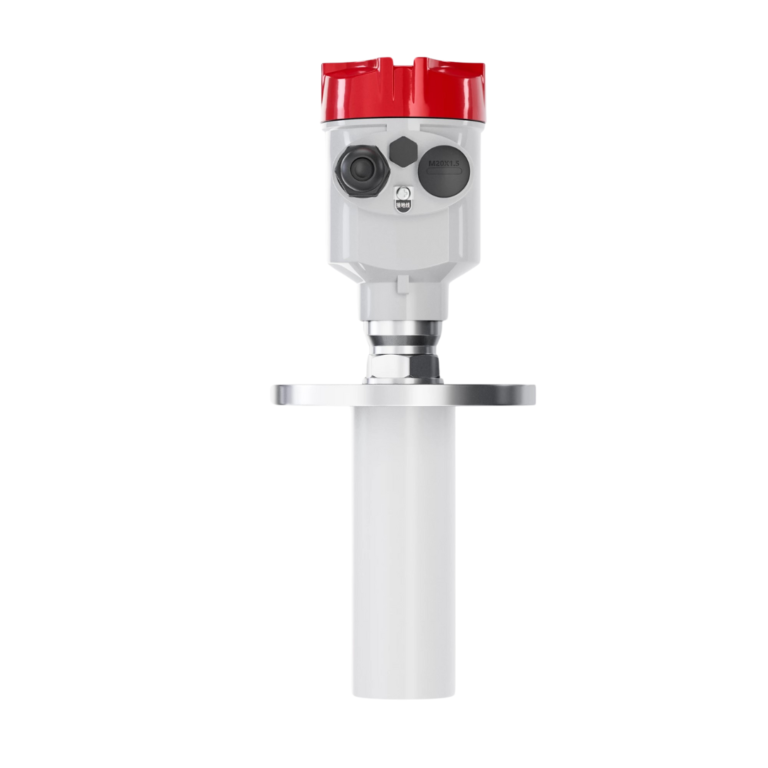

INATEC – RD-902-T 26 GHz Radar Level Meter
INATEC – RD-902-T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Characteristics
Range : 0 ~ 20 m.
Accuracy : ± 03 mm.
Application : Liquid.
Frequency Range : 26 GHz.
Introduction
INATEC – RD-902-T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Characteristics
1. Small antenna size, easy to install : non-contact radar, no wear, no pollution.
2. Almost no corrosion, bubble effect : almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
3. Serious dust environment on the high level meter work has little effect.
4. A shorter wavelength, the reflection of solid surface inclination is better.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. The measuring range is smaller, for a measurement will yield good results.
7. High signal noise ratio, the level fluctuation state can obtain a better performance.
8. High frequency measurement of solids and low dielectric constant of the medium.
Specification
| Information | Spesification |
|---|---|
| Product | Radar Level Meter |
| Model | INATEC - RD-902-T |
| Measure range | 0 - 20 meters |
| Application | Liquid |
| Process Connection | Thread, Flange |
| Medium Temperature | - 40 ℃ ~ 130 ℃ (Standard type), - 40 ℃ ~ 230 ℃ (High temp type) |
| Process Pressure | - 0.1 ~ 2.0 MPa |
| Accuracy | ± 10 mm |
| Protection Grade | IP67 |
| Frequency Range | 26 GHz |
| Signal Output | 4 - 20 mA |
| RS485 / Modbus | |
| Power supply | DC (6 ~ 24 V) / Four-wire DC 24 V / Two-wire |
