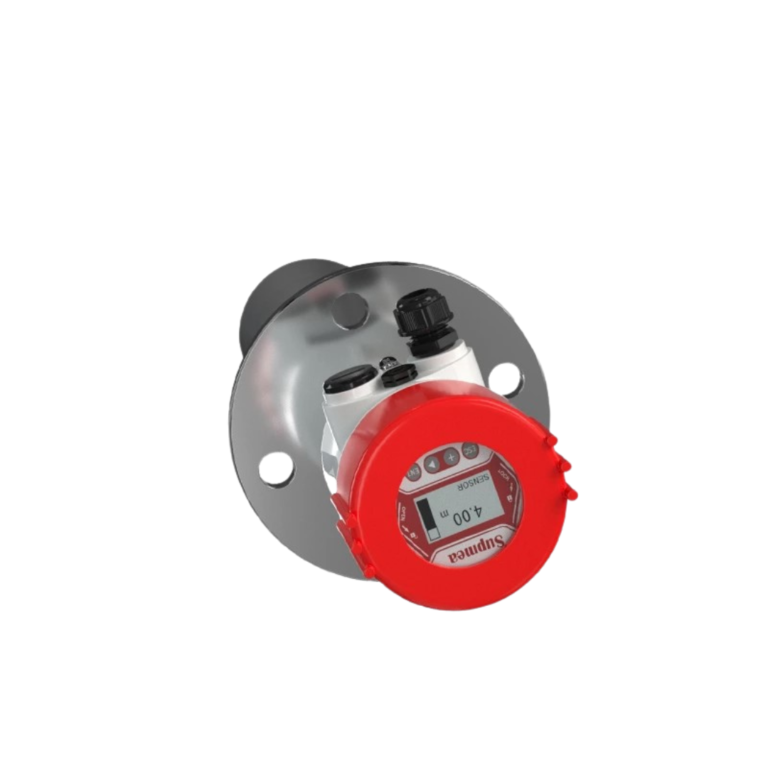

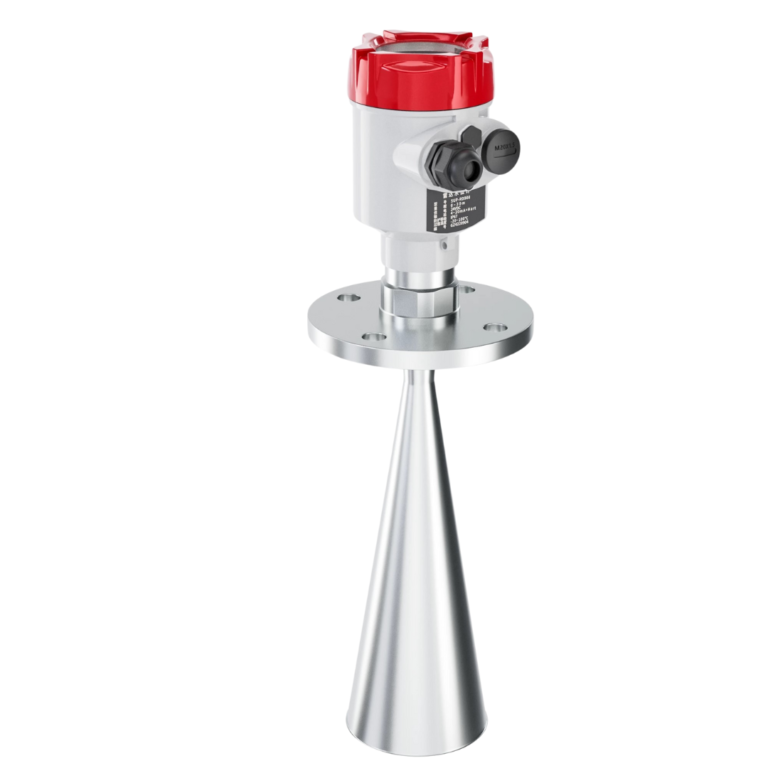

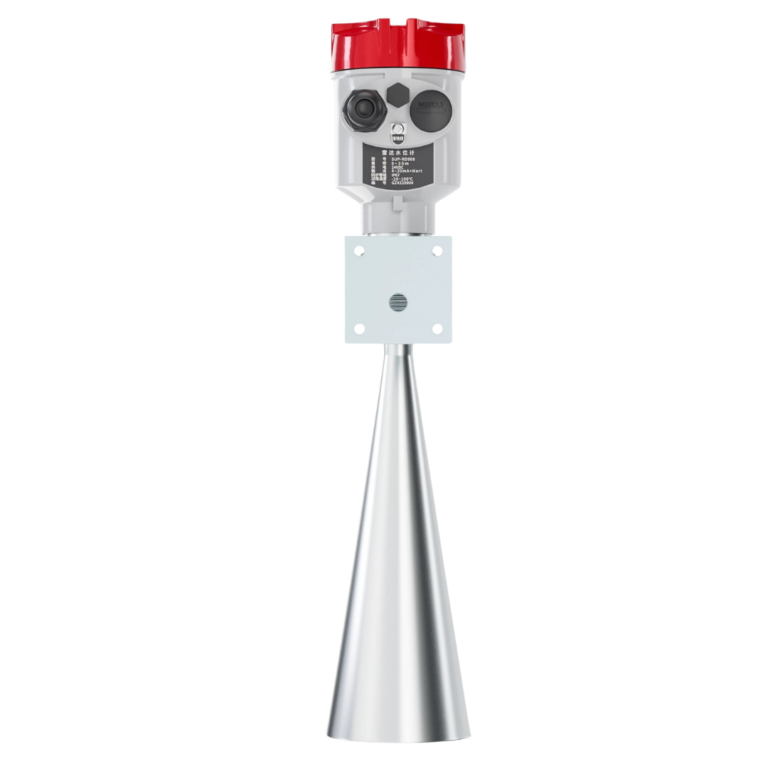

INATEC – RD-902 26 GHz Radar Level Meter
INATEC – RD-902 Non-contact radar level meter with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Characteristics
Range : 0 ~ 30 m.
Application : Liquid.
Frequency Range : 26 GHz.
Introduction
This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Specification
| Information | Spesification |
|---|---|
| Product | Radar Level Meter |
| Model | INATEC - RD-902 |
| Accuracy | ± 05 mm (Range 05 m) ± 10 mm (Range 20 m) ± 15 mm (Range 30 m) |
| Application | Liquid |
| Process Connection | Thread, Flange |
| Medium Temperature | - 40 ℃ ~ 130 ℃ (Standard type), - 40 ℃ ~ 250 ℃ (High temp type) |
| Process Pressure | - 0.1 ~ 4.0 MPa |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA/HART (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | DC (06 ~ 24 V)/ Four-wire DC 24 V / Two-wire |
