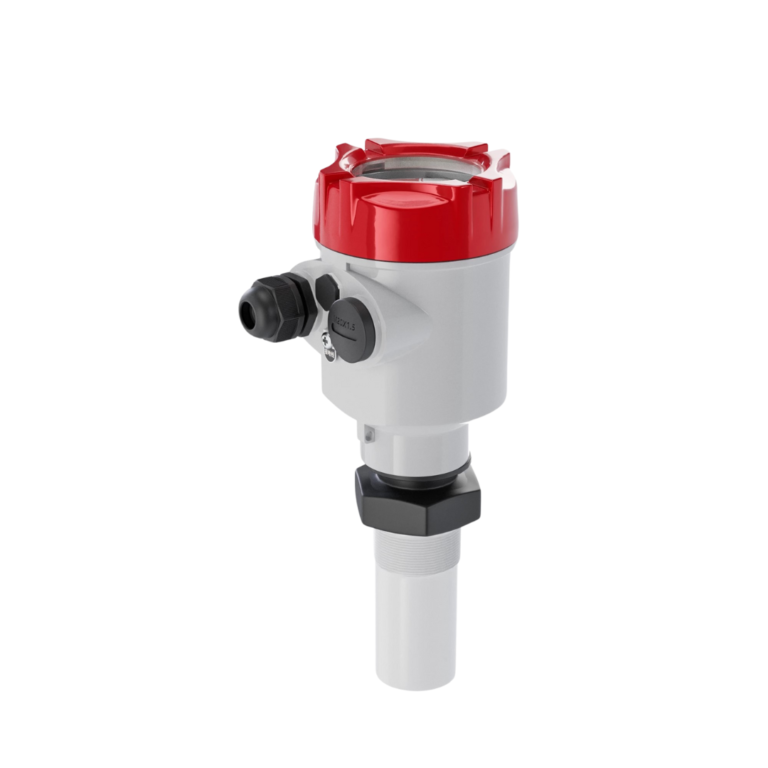

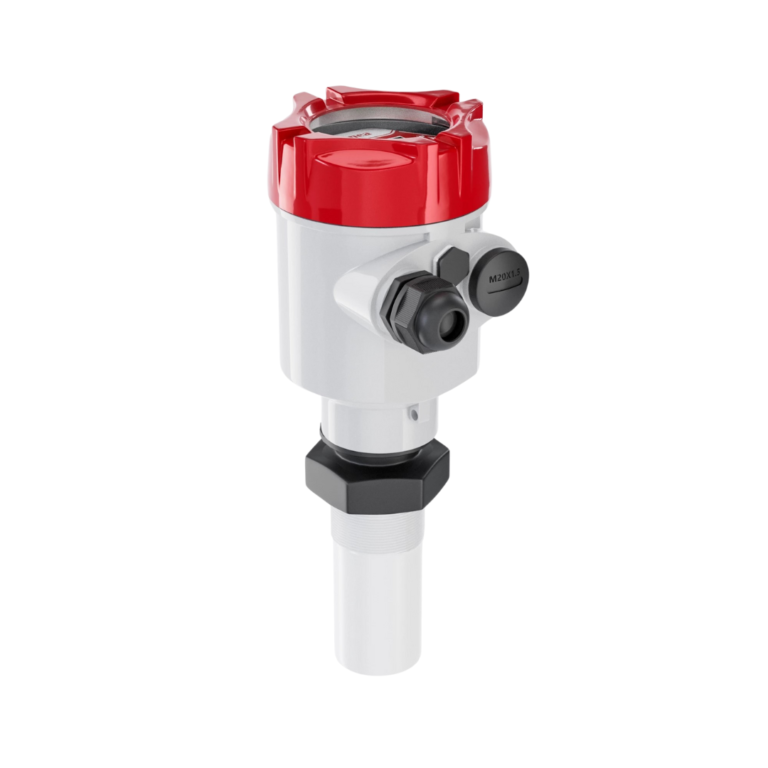

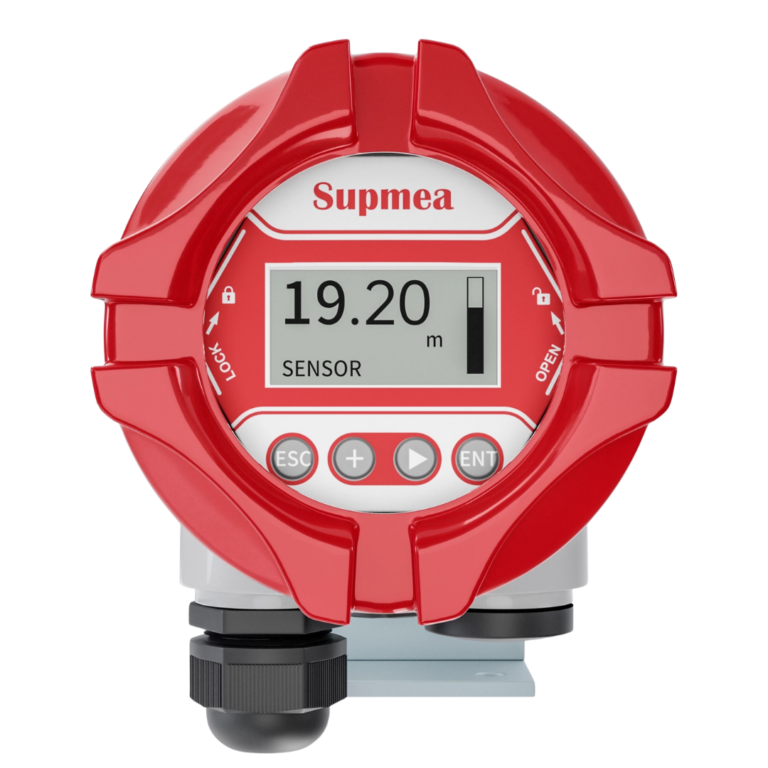

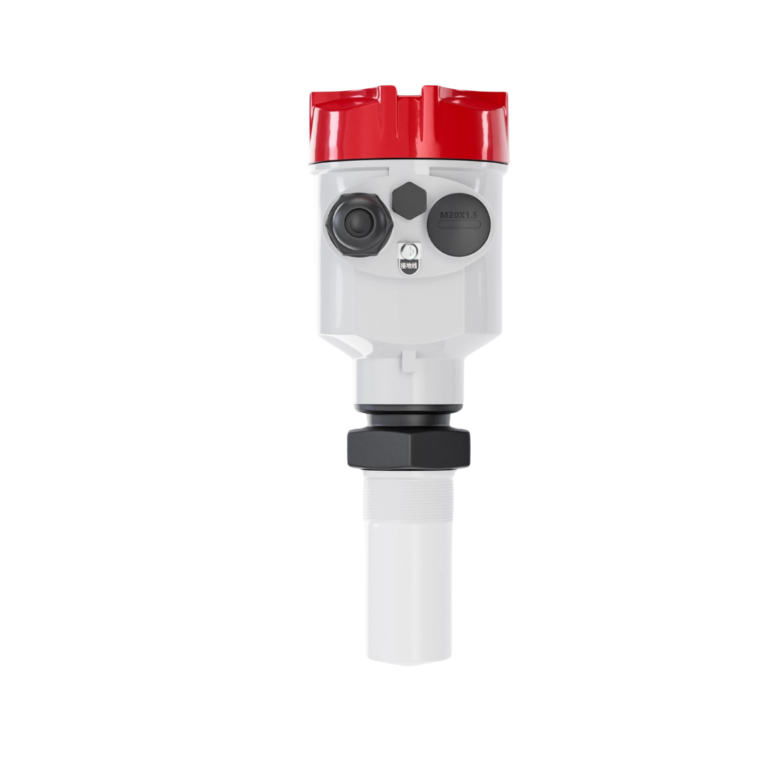

INATEC – RD-901 Radar Level Meter For Corrosive Liquid
INATEC – RD-901 Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Characteristics
Range : 0 ~ 10 m.
Application : Corrosive liquid.
Frequency range : 26 GHz.
Introduction
This series of radar level meter adopted 26 G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Specification
| Information | Spesification |
|---|---|
| Product | Radar Level Meter |
| Model | INATEC - RD-901 |
| Accuracy | ± 05 mm (Range 05 m) ± 10 mm (Range 10 m) |
| Application | Corrosive liquid |
| Process Connection | Thread, Flange |
| Medium Temperature | - 40 ℃ ~ 130 ℃ |
| Process Pressure | - 0.1 ~ 0.3 MPa |
| Protection Grade | IP67 |
| Frequency Range | 26 GHz |
| Signal Output | 4 - 20 mA |
| RS485 / Modbus | |
| Power supply | DC (06 ~ 24 V) / Four-wire DC 24 V / Two-wire |
