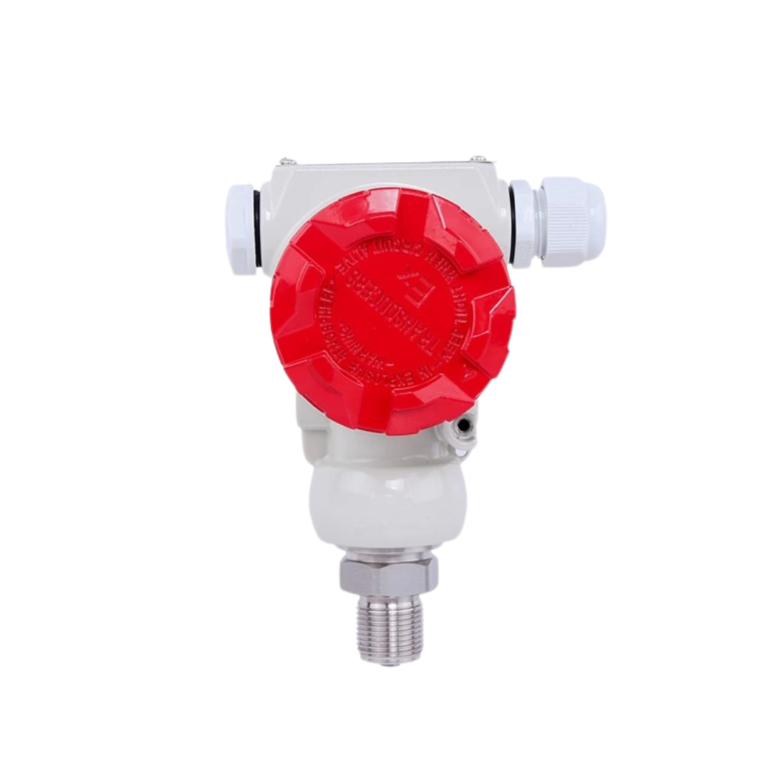

INATEC – PX-400 Pressure Transmitter

INATEC – PX-400 pressure transmitter take use of OEM all-welded pressure core body, miniature amplifier processing circuit. The products are widely used in industrial process control, petroleum, chemical, metallurgy and other industries.

Characteristics

Range : – 0.1 ~ 0 ~ 60 MPa.

Resolution : 0.5 % F.S, 0.3 % F.S optional.

Output signal : 4 ~ 20 mA.

Installation : Thread.

Power supply : 24 VDC (9 ~ 36 V).

Tokopedia

Introduction

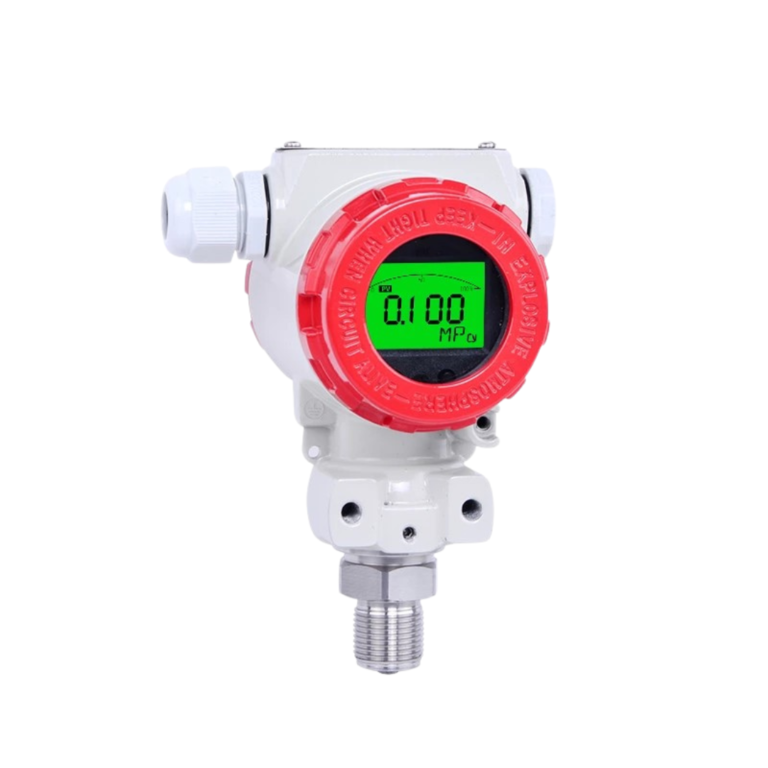

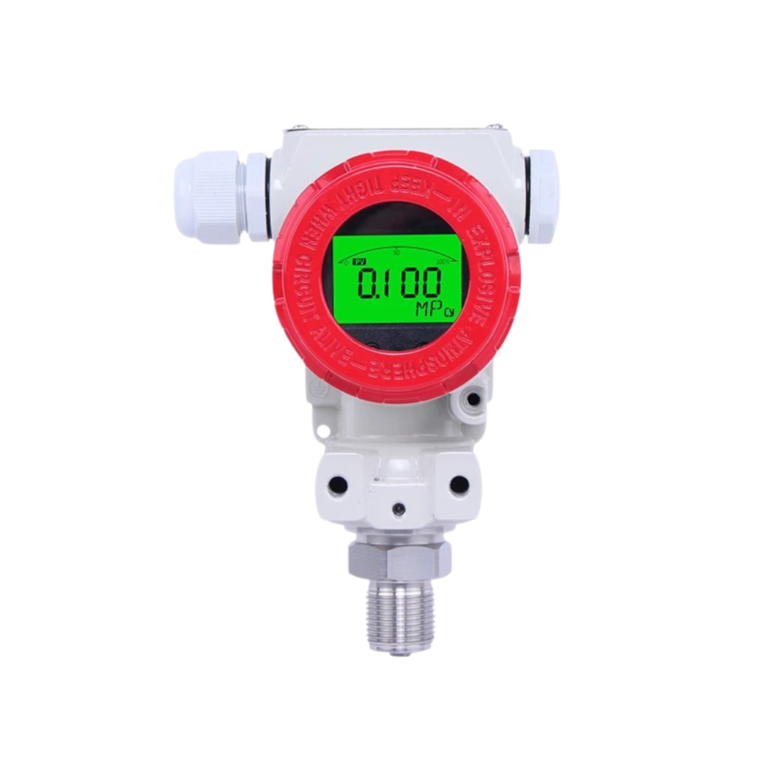

INATEC – P-400 Digital Smart LED / LCD display with shell industrial pressure transmitter.

Specification

Information	Spesification
Product	Pressure Transmitter
Model	INATEC - PX-400
Measure range	- 0.1... 0 / 0.01...60 Mpa
Pressure type	Gauge pressure, adiabatic pressure and sealed pressure
Accuracy	0.5 % F.S
Output signal	4 ~ 20 mA, 1 ~ 5 V, 0 ~ 10 V, 0 ~ 5 V, RS485
Temperature compensation	- 10 ~ 70 ℃
Working temperature	- 20 ~ 85 ℃
Medium temperature	- 20 ~ 85 ℃
Storage temperature	- 40 ~ 85 ℃
Overload pressure	(0.035 ~ 10) Mpa (150 % FS), (10 ~ 60) Mpa (125 % FS)
Long - term stability	± 0.2 % FS / year
Ingress protection	IP65
Power supply	24 VDC
