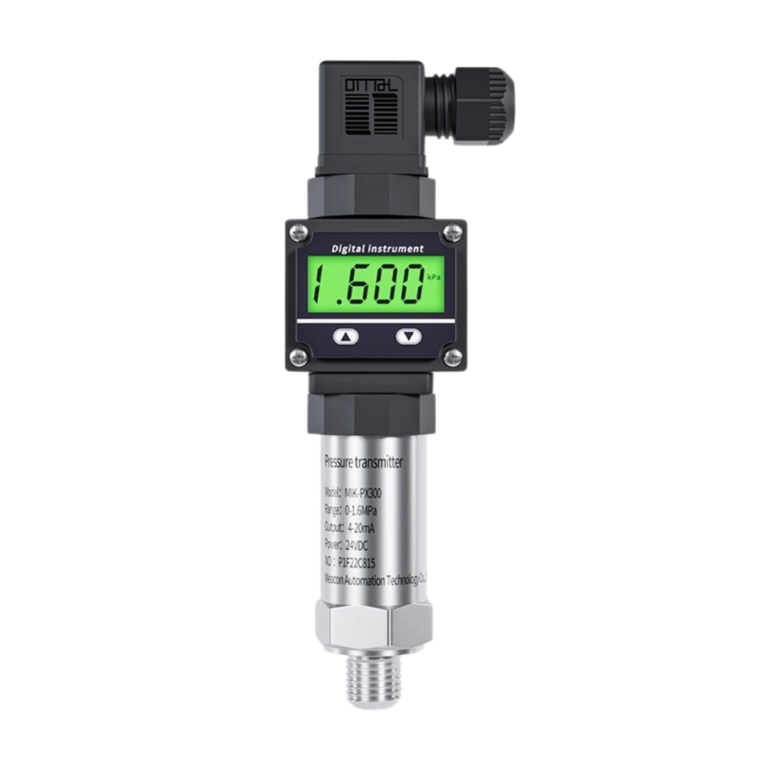

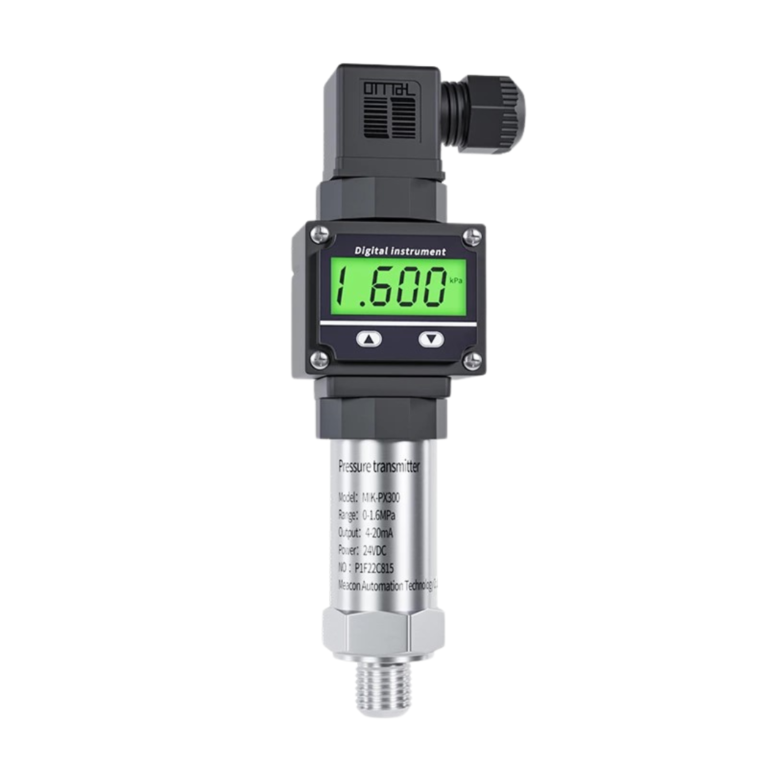

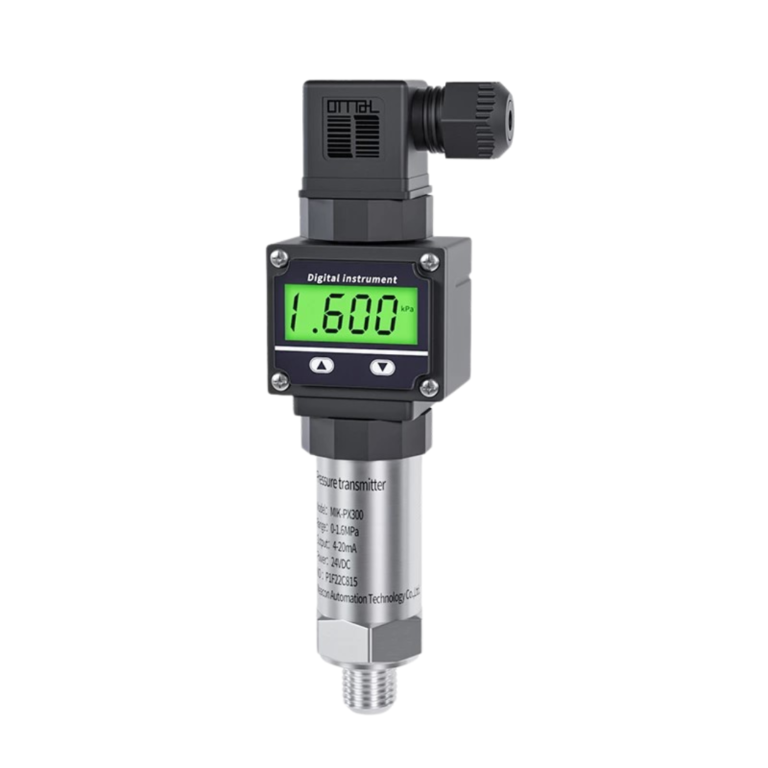

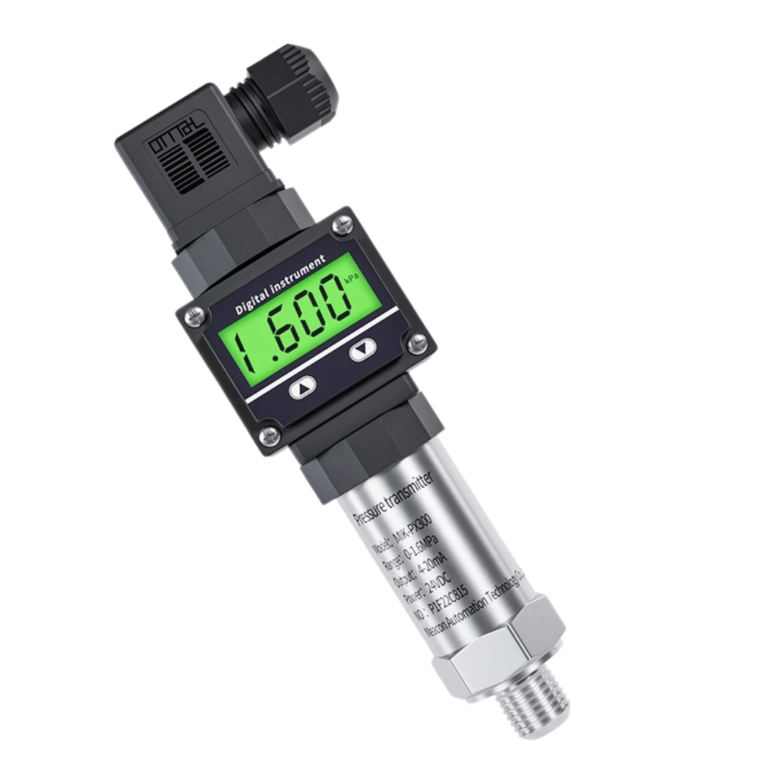

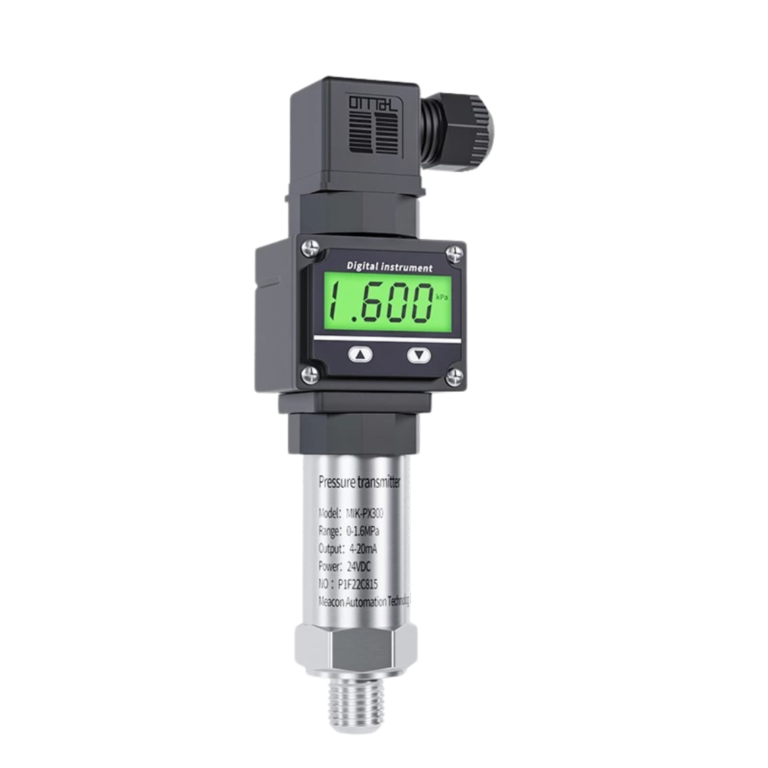

INATEC – PX-300 Pressure Transmitter With Display
Pressure transmitter is a common sensor in industrial. Widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter is used to measure the gas, steam’s level , density, and press. Then transform it into 4 – 20 mA DC signal connecting to PC, control instrument etc.
Characteristics
Range : – 0.1 ~ 0 ~ 60 MPa.
Resolution : 0.5 % F.S.
Output signal : 4 ~ 20 mA, 1 ~ 5 V, 0 ~ 10 V, 0 ~ 5 V, RS485.
Installation : Thread.
Power supply : 24 VDC (9 ~ 36 V)
Introduction
Pressure transmitter is a common sensor in industrial. Widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter is used to measure the gas, steam’s level , density, and press. Then transform it into 4 – 20 mA DC signal connecting to PC, control instrument, and etc.
Specification
| Information | Spesification |
|---|---|
| Product | Pressure Transmitter |
| Model | INATEC - PX-300 |
| Measure range | - 0.1…0 / 0.01…60 Mpa |
| Indication resolution | 0.5 % |
| Working temperature | - 20 - 85 °C |
| Output signal | 4 - 20 mA analog output |
| Pressure type | Gauge pressure, adiabatic pressure and sealed pressure |
| Measure medium | Liquid, Gas, Oil etc |
| Pressure overload | 0.035...10 MPa (150 % FS) 10...60 MPa (125 % FS） |
| Power | 10 - 32 V (4...20 mA),12 - 32 V (0...10 V), 8 - 32 V (RS485) |
