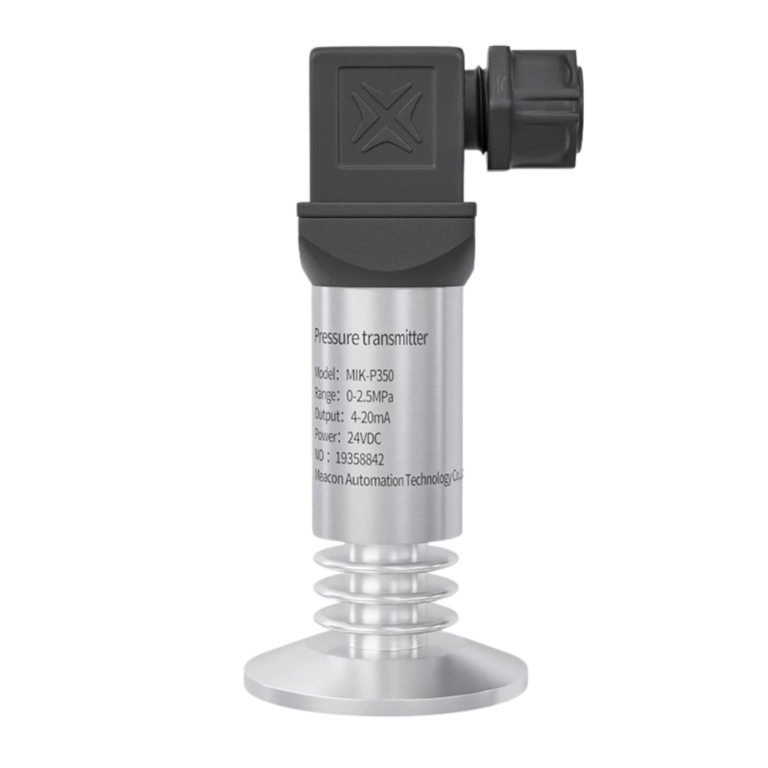

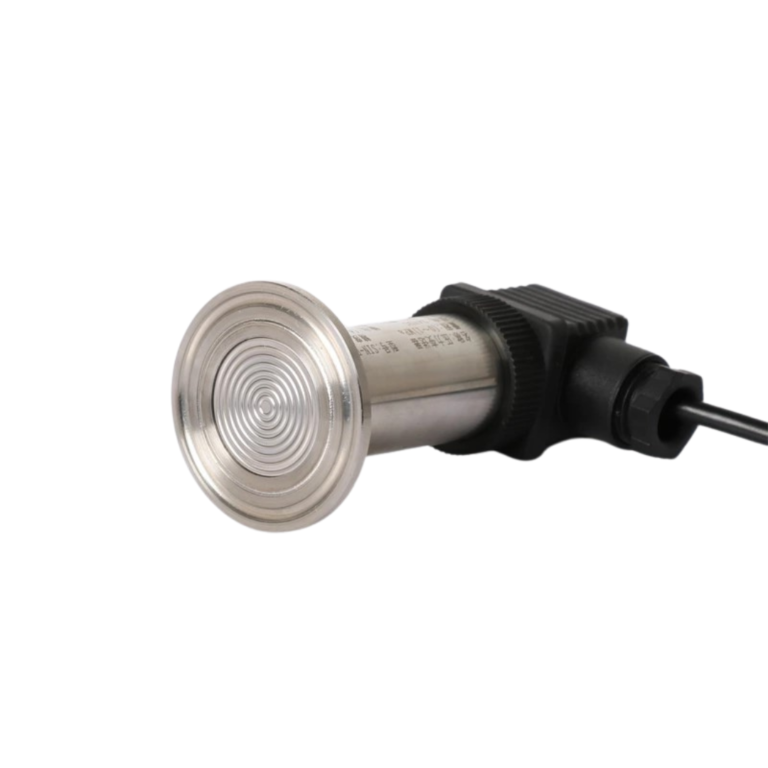

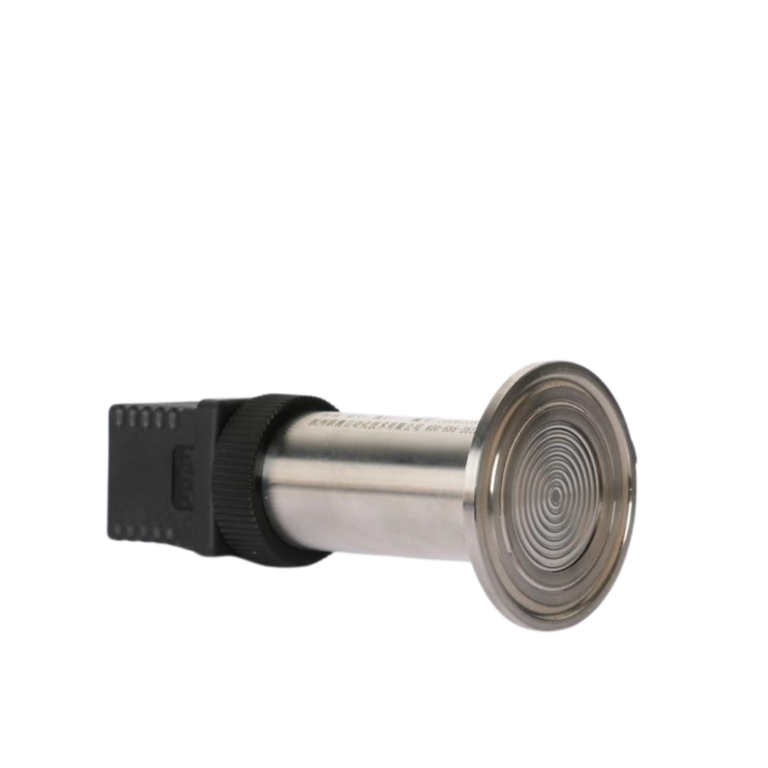

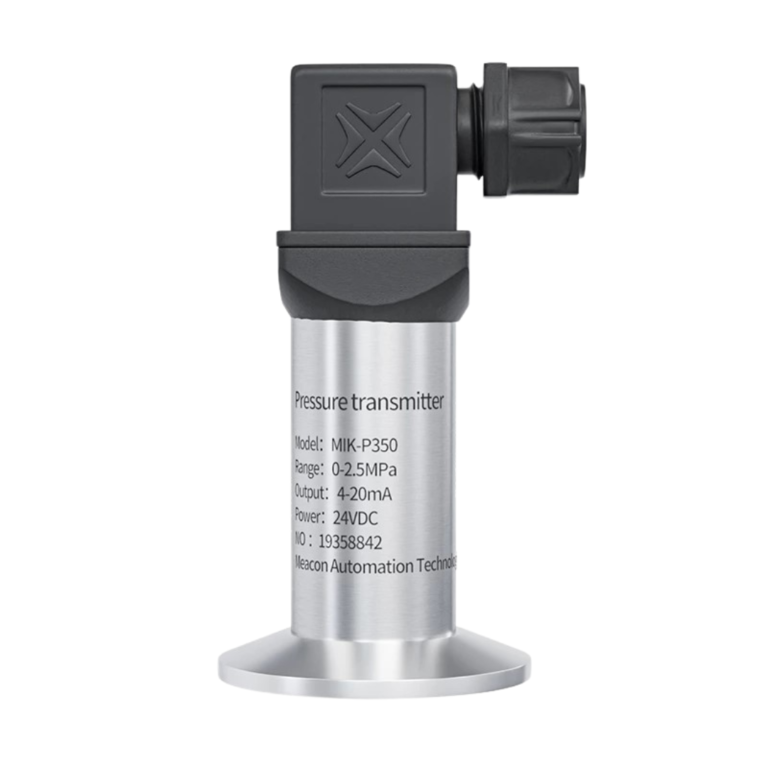

INATEC – P-350-K Hygienic Pressure Transmitter
INATEC – P-350-K is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4 – 20 mA signal output.
Characteristics
Range : – 0.1 ~ 0 ~ 40 MPa.
Resolution : 0.5 % F.S.
Output signal : 4 ~ 20 mA.
Installation : Clamp.
Power supply : 24 VDC (12 ~ 36 V).
Specification
| Information | Spesification |
|---|---|
| Product | Pressure Transmitter |
| Model | INATEC - P-350-K |
| Measure range | - 0.1...0...3.5 MPa |
| Indication resolution | 0.5 % |
| Ambient temperature | - 10 ~ 85 ℃ |
| Output signal | 4 - 20 mA analog output |
| Pressure type | Gauge pressure, Sealed pressure |
| Measure medium | Liquid, Gas, Oil etc |
| Pressure overload | 150 % FS |
| Power | 10 - 32 V (4...20 mA), 12 - 32 V (0...10 V), 8 - 32V (RS485) |
