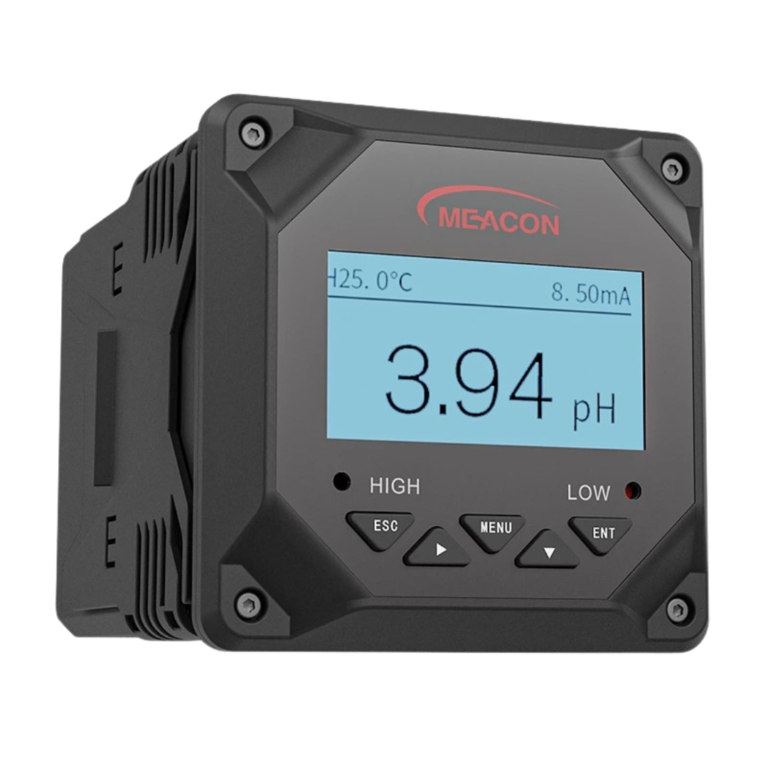

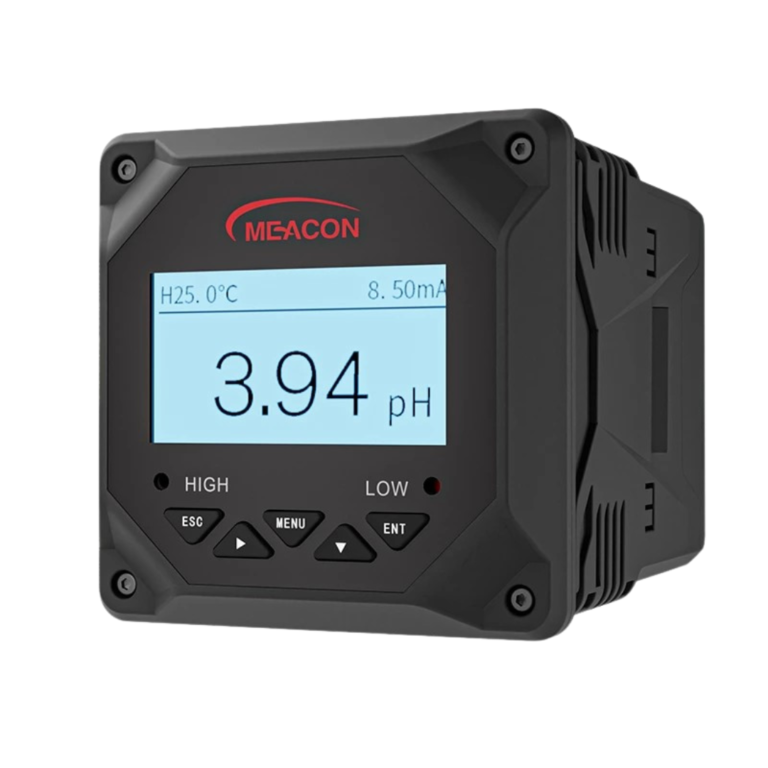

INATEC – PH-6.5 pH ORP Meter
INATEC – PH6.5 Online pH meter is a multivariable analyzer used for measuring/controlling the pH and ORP with different temperature. The function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. pH sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.
In terms of applications, the pH 6.0 online pH meters are commonly used in industrial settings where pH control is critical, such as in chemical processing plants, water treatment plants, and food and beverage production facilities. They are often used to monitor the pH of chemical solutions, wastewater streams, and food and beverage products to ensure that they meet specific pH requirements.
Characteristics
Measure range : pH: 0-14 pH, ± 0.02 pH; ORP : -2000 ~ 2000 mV, ± 1 mV.
Input Resistance : ≥ 1012 Ω.
Power supply : 220 V± 10%，50 Hz / 60 Hz.
Output : 4-20 mA, RS485, Modbus-RTU, Relay.
Introduction
pH / ORP meter is one of the intelligent online chemical analysis equipment, is a widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, Pharmaceutical, biochemical, food and tap water solution pH value or ORP value and temperature of the continuous monitor.
Continuous monitoring data through the transmission output connection recorder to achieve remote monitoring and recording, you can also connect the RS485 interface through the MODBUS-RTU protocol can be easily connected to the computer to achieve monitoring and recording.
- Characteristics

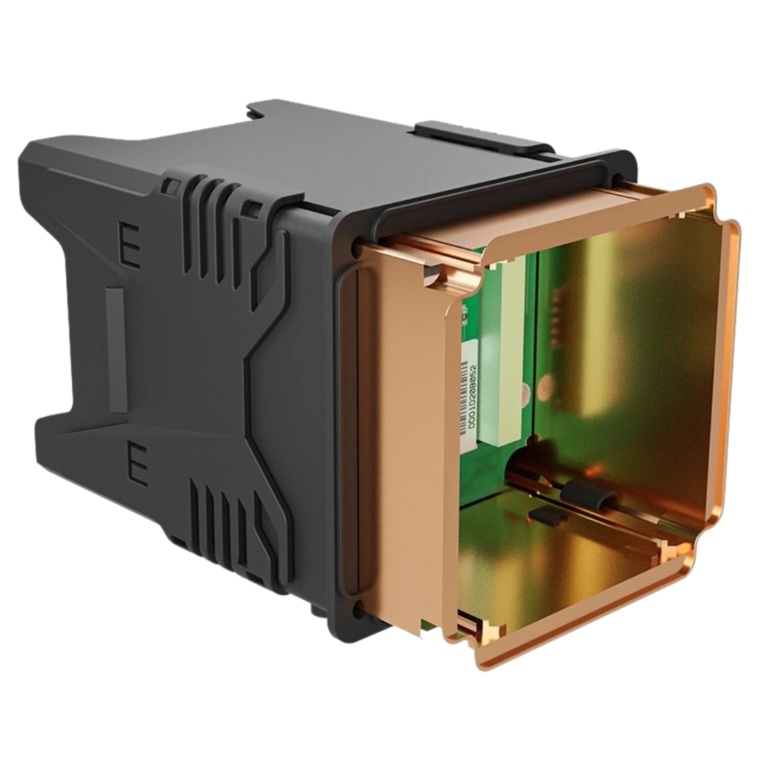

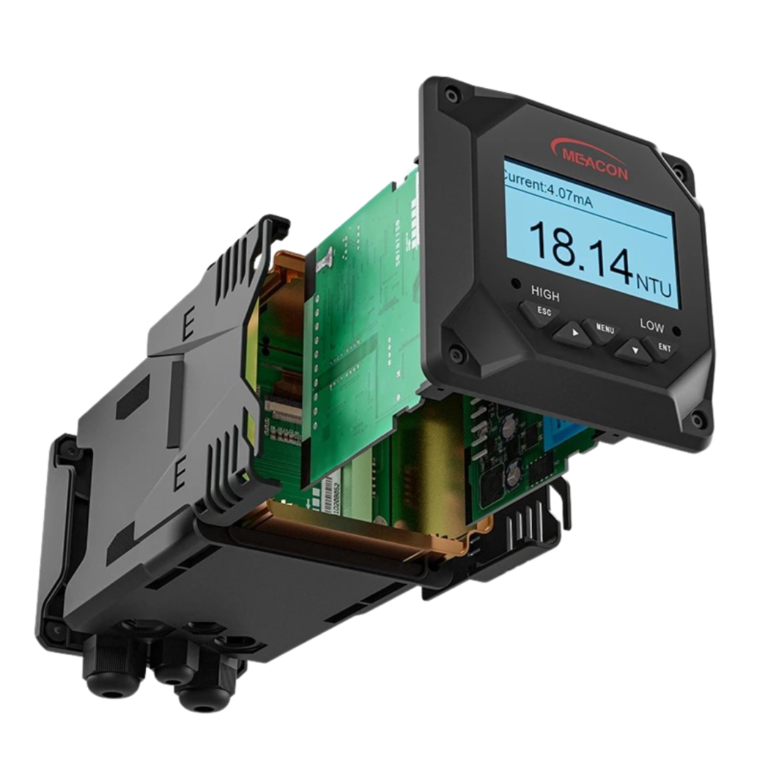

- Design of board card modularity, for convenience of assembly and configuration.
- 2.4 inches 128*64 lattice screen.
- Isolating transmitting output, with little interference.
- Isolating RS485 communication.
- Can be pH / ORP measurement, temperature measurement, upper and lower limit control, transmission output, RS485 communication.
- Configurable manual and auto temperature offset function.
- Configurable upper/lower limit warning and delay.
- Configurable hummer and LCD backlight switch.
Specification
| Information | Spesification |
|---|---|
| Product | pH meter, pH controller |
| Model | INATEC - PH6.5 |
| Measure range | pH : 0-14 pH, ± 0.02 pH |
| ORP : -2000 ~ 2000 mV, ± 1 mV | |
| Measuring medium | Liquid |
| Input Resistance | ≥ 1012 Ω |
| Temp compensation | Manual / Auto temperature compensation |
| Temperature range | -10 ~ 130℃, NTC10K or PT1000 |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20 mA, maximum loop 750 Ω, 0.2% FS |
| Power supply | 220 V ± 10%, 24 V ± 20%, 50 Hz / 60 Hz |
| Relay output | 250 V, 3A |
