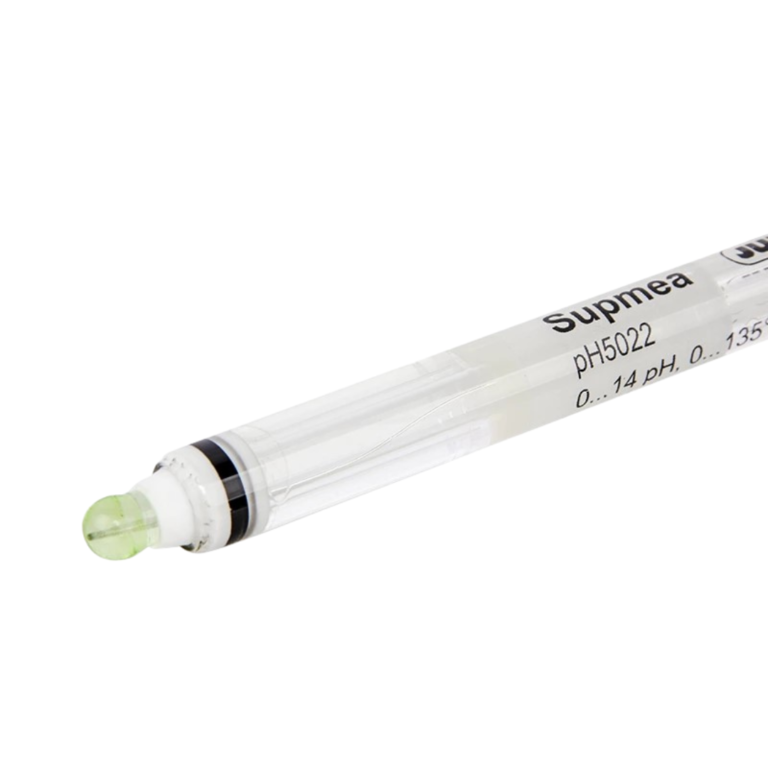

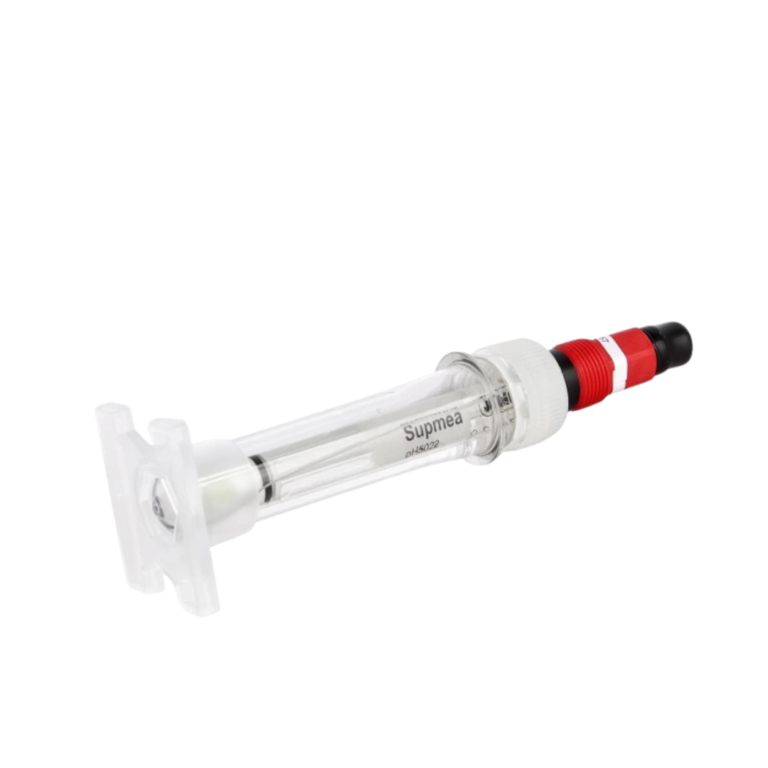

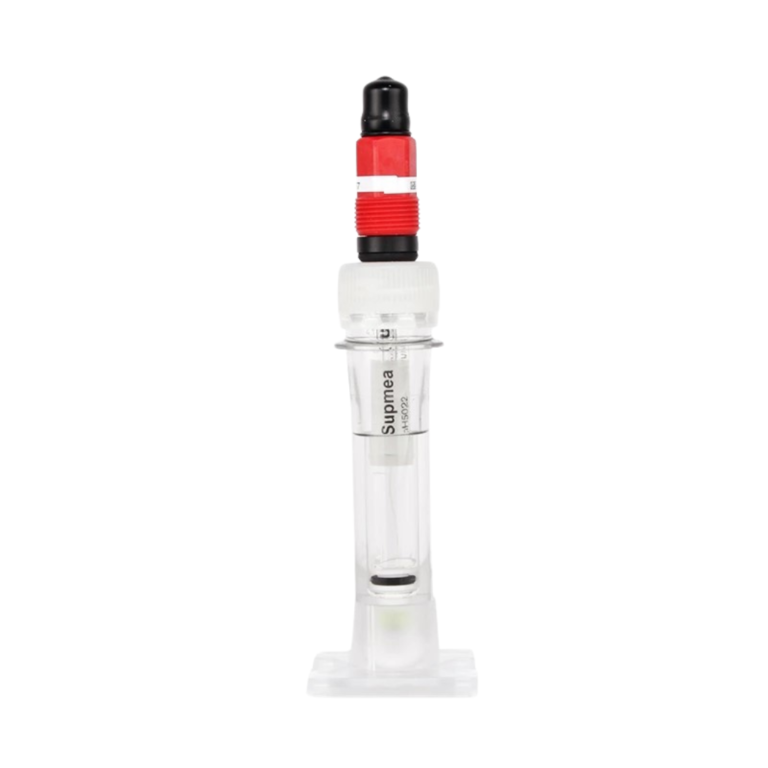

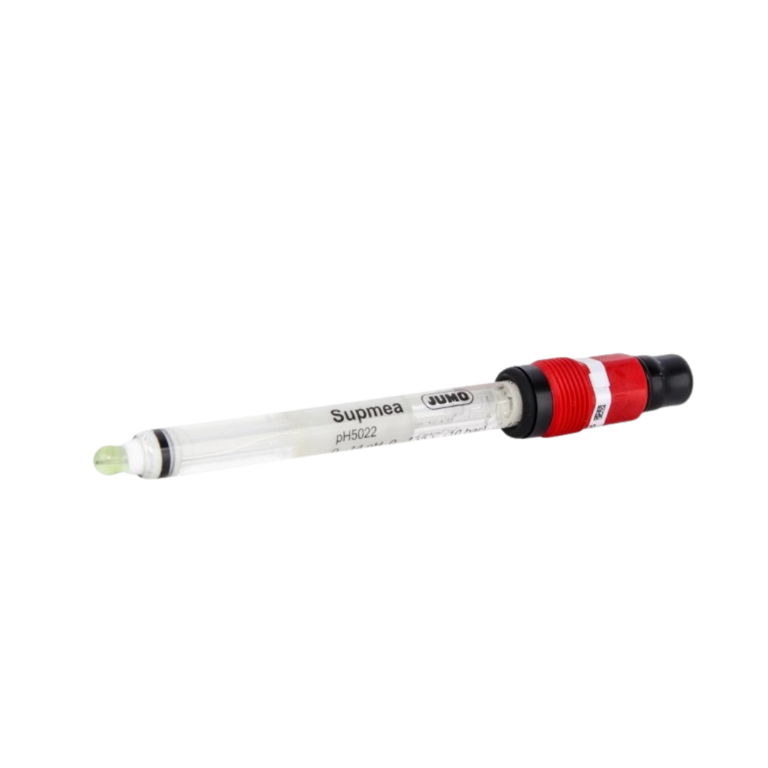

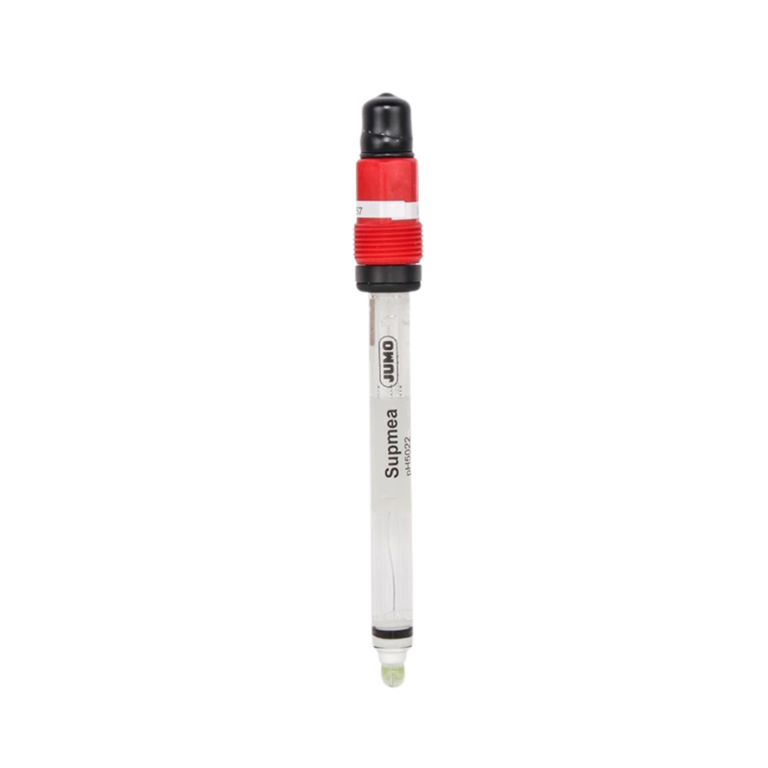

INATEC – PH-5022 Germany Glass pH Sensor
INATEC – 5022 tecLine electrodes are high-quality sensors for professional applications in process and industrial measurement technology. These electrodes are known for their use of top-quality materials and components. They are designed as combined electrodes (the glass or metal electrode and the reference electrode are combined in one shaft). A temperature probe can also be integrated as an option, depending on the type.
Characteristics
Zero potential point : 7 ± 0.5 pH.
Conversion coefficient : > 96%.
Installation size : Pg 13.5.
Pressure : 1 ~ 6 Bar at 25 ℃.
Temperature : 0 ~ 130℃ for general cables.
Application
Industrial wastewater engineering.
Process measurements, electroplating plants, paper industry, drinks industry.
Wastewater containing oil.
Suspensions, varnishes, media containing solid particles.
Two-chamber system for when electrode poisons are present.
Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF.
Specification
| Information | Spesification |
|---|---|
| Product | Glass pH Sensor |
| Model | INATEC - PH-5022 |
| Measurement range | 0 ~ 14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 96% |
| Practical response time | < 1 min |
| Installation size | Pg 13.5 |
| Heat resistance | 0 ~ 130℃ |
| Pressure resistance | 1 ~ 6 Bar |
| Connection | K8S Connector |
