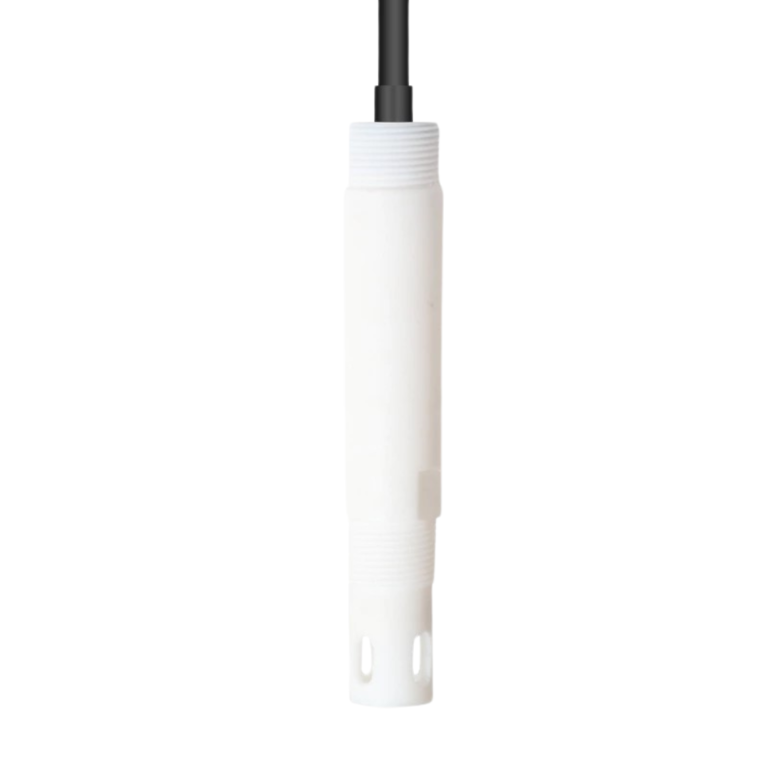

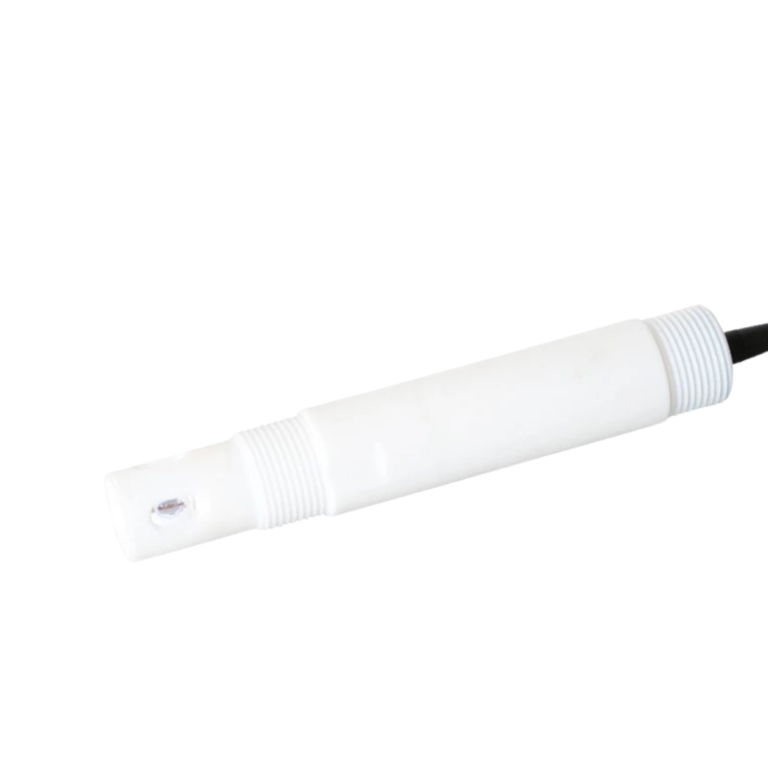

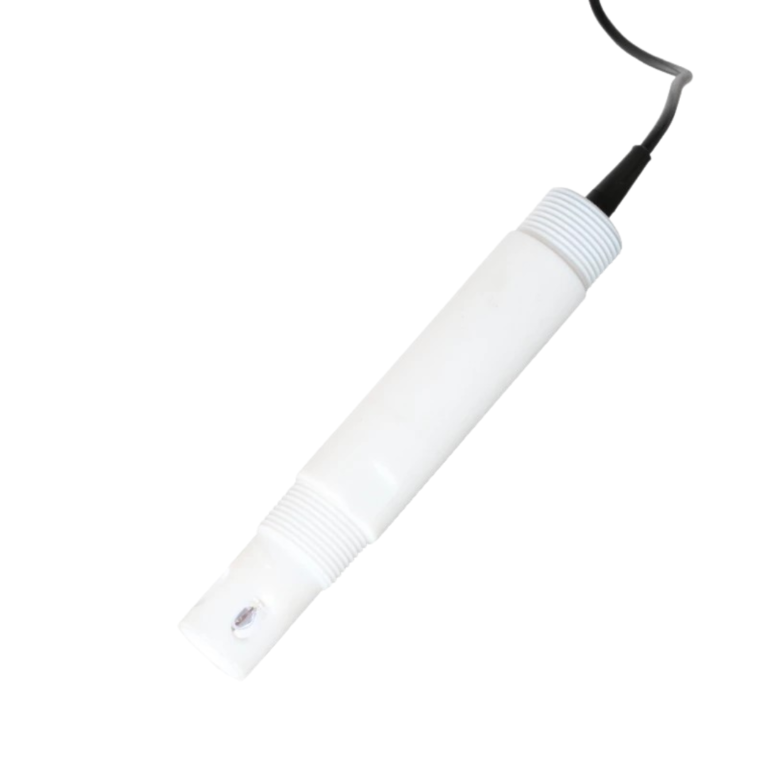

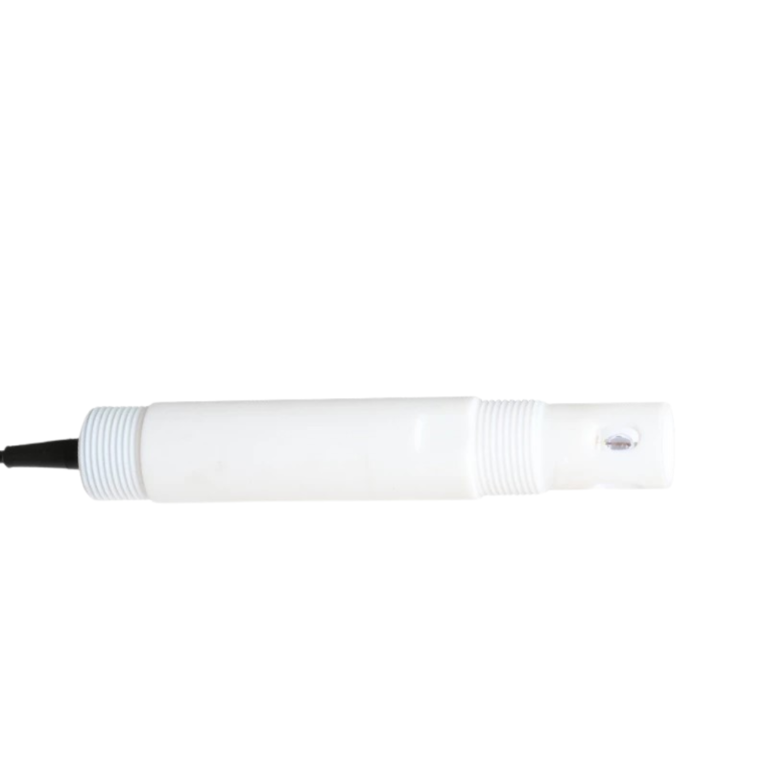

INATEC – PH-5013A PTFE pH Sensor For Corrosive Medium
INATEC – pH-5013A pH sensor used in PH measurement is also called primary cell. The primary battery is a system whose function is to convert chemical energy into electrical energy. The voltage of this battery is called electromotive force (EMF). This electromotive force (EMF) consists of two half-cells.
Characteristics
Zero potential point : 7 ± 0.5 pH.
Conversion coefficient : > 95 %.
Installation size : 3/4 NPT.
Pressure : 1 ~ 4 Bar at 25 ℃.
Temperature : 0 ~ 60 ℃ for general cables.
Application
Industrial wastewater engineering.
Process measurements, electroplating plants, paper industry, drinks industry.
Wastewater containing oil.
Suspensions, varnishes, media containing solid particles.
Two-chamber system for when electrode poisons are present.
Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF.
Specification
| Information | Spesification |
|---|---|
| Product | PTFE pH sensor |
| Model | INATEC - PH-5013A |
| Measurement range | 0 ~ 14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 95 % |
| Internal impedance | 150 - 250 M Ω (25 ℃) |
| Practical response time | < 1 min |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| Temp compensation | NTC10K Ω / Pt100 / Pt1000 |
| Heat resistance | 0 ~ 60℃ for general cables |
| Pressure resistance | 3 bar at 25 ℃ |
| Connection | Low-noise cable |
