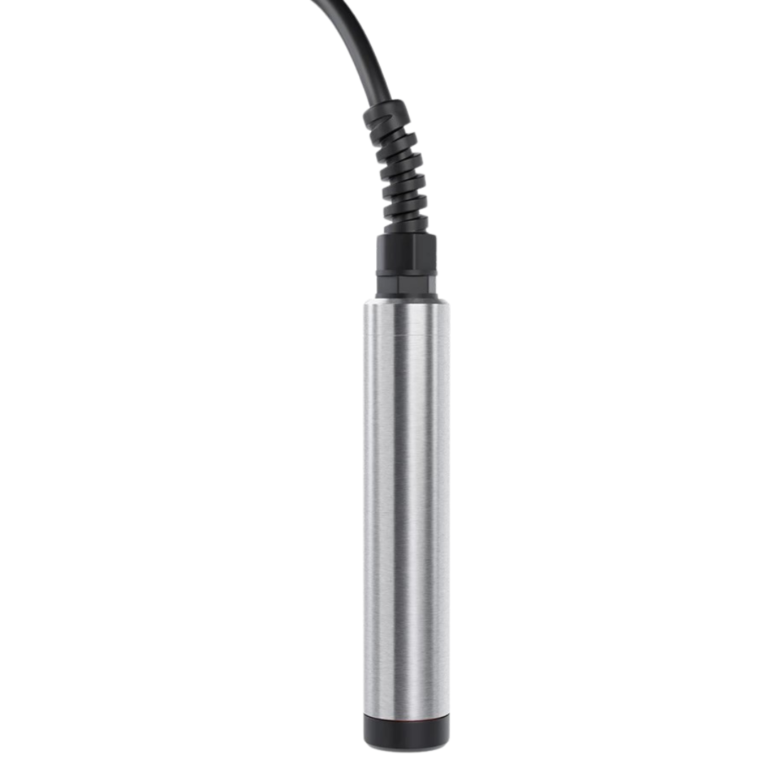

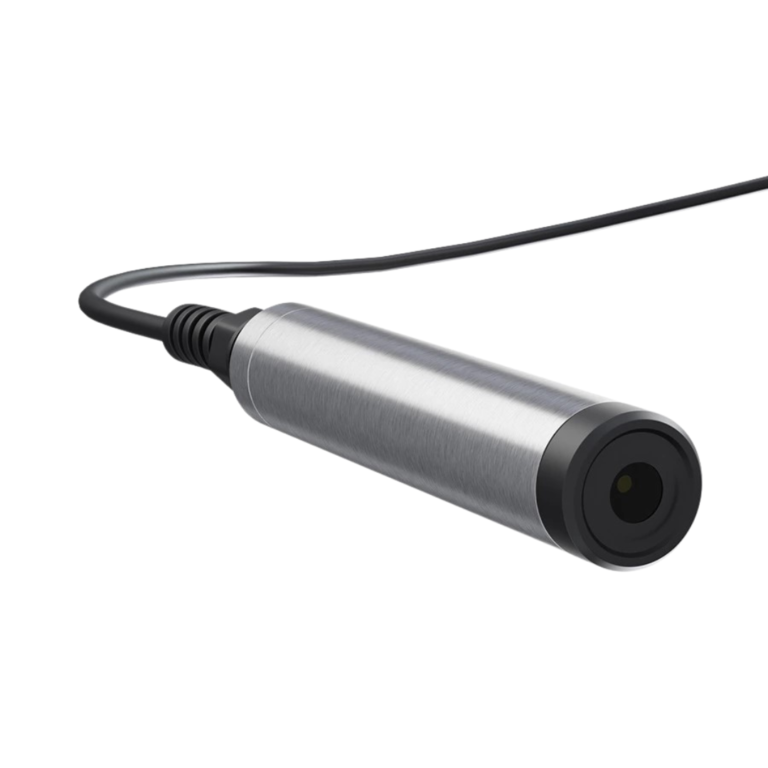

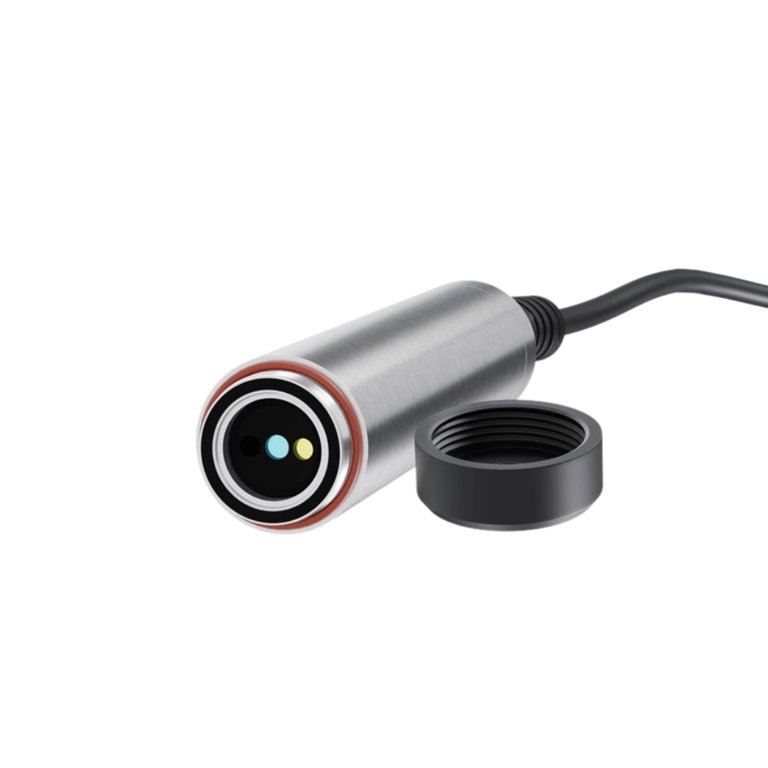

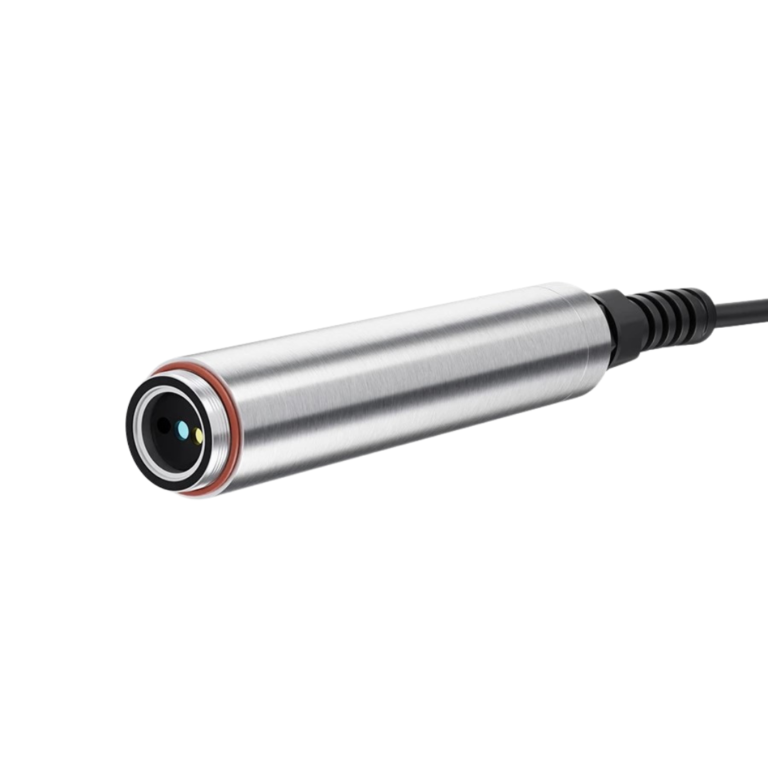

INATEC – DO-7017 Optical Dissolved Oxygen Sensor
INATEC – DO-7017 Optical dissolved oxygen sensor is widely used in DO on-line monitoring of various technological processes such as regulating pools, biochemical ponds, and effluent in sewage treatment plants; DO on-line monitoring in waterworks, surface water, water in various industrial production processes, aquaculture and other industries.
Characteristics
Range : 0.00 to 20.00 mg/L.
Accuracy : 3%.
Resolution : 0.01.
Signal interface : Modbus RS-485.
Introduction
INATEC – DO-7017 Optical dissolved oxygen sensor is widely used in DO on-line monitoring of various technological processes such as regulating pools, biochemical ponds, and effluent in sewage treatment plants; DO on-line monitoring in waterworks, surface water, water in various industrial production processes, aquaculture and other industries.
Specification
| Information | Spesification |
|---|---|
| Product | Dissolved Oxygen Sensor |
| Model | INATEC - DO-7017 |
| Accuracy | Dissolved oxygen : measured value ± 3 % or ± 0.3 mg/L Temperature : ± 0.5 ℃ |
| Measure range | Dissolved oxygen : (0 ~ 20) mg/L or 0 ~ 200% saturation Temperature: (0 ~ 45) ℃ |
| Resolution | 0.01 |
| Power supply | (10 - 25) VDC |
| Operating temperature | 0°C to 45°C (Unfrozen) |
| Stocking temperature | -15°C to + 60°C |
| Signal interface | Modbus RS-485 |
| Repeatability | ± 0.3 |
| Ingress protection | IP68 / NEMA6P |
| Material | Stainless steel 316L |
| Maximum pressure | 0.1 MPa |
| Cable | 10 m (Standard),100 m(Optional) |
