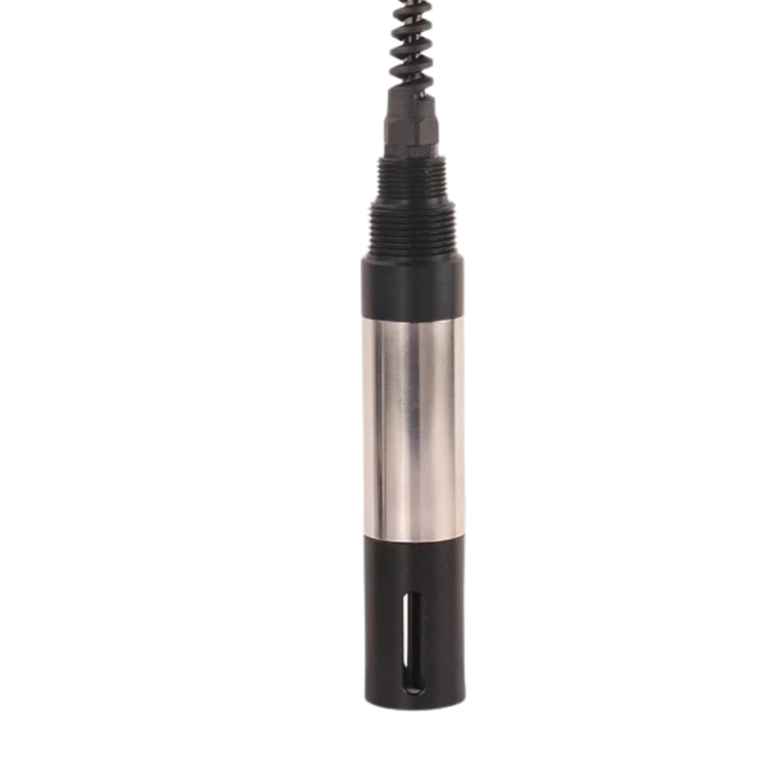

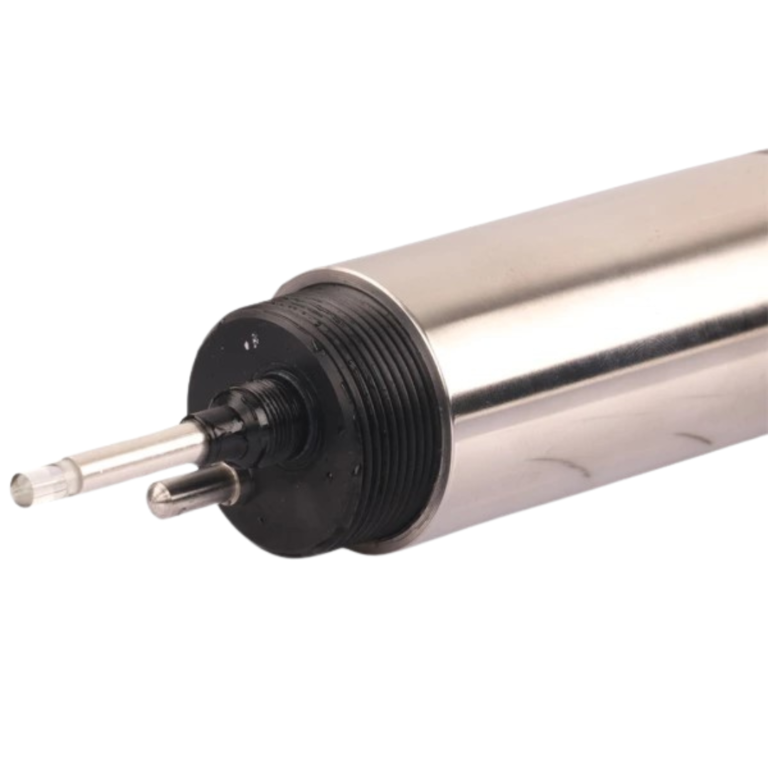

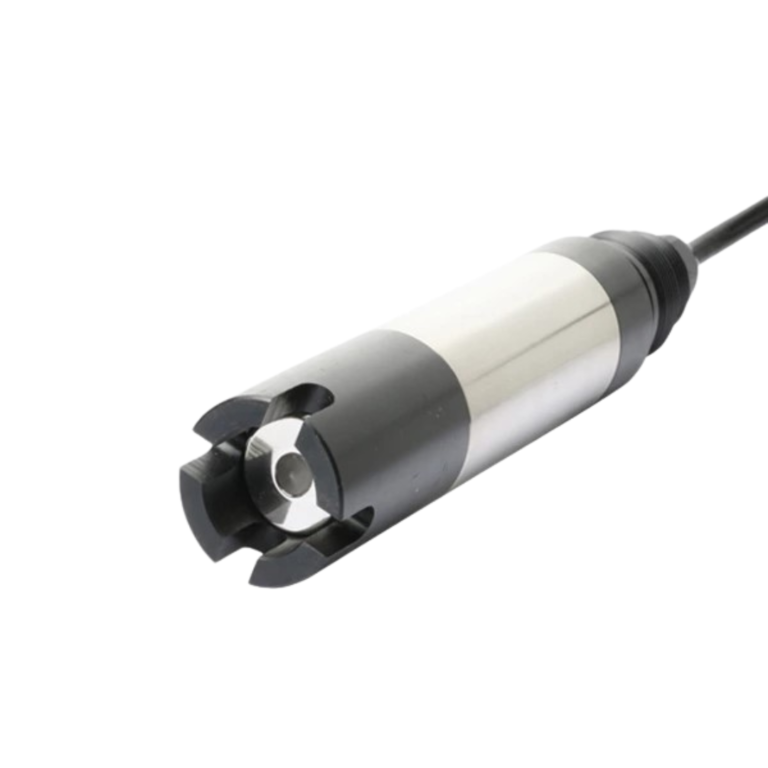

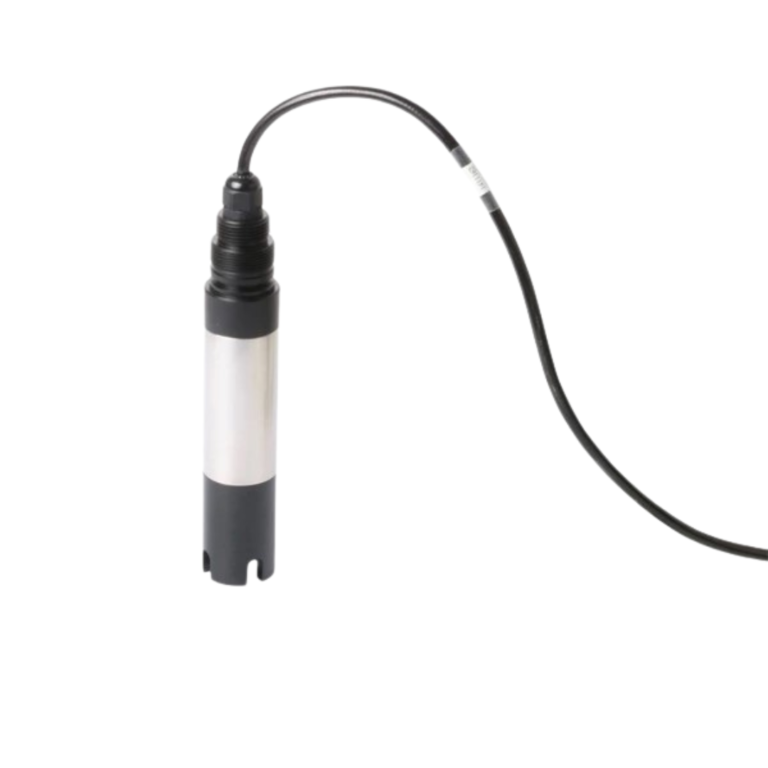

INATEC – DO-7011 Membrane Dissolved Oxygen Sensor
INATEC – DO-7011 Membrane type dissolved oxygen sensor is the measure of oxygen dissolved in an aqueous solution. Polarographic measurement principle, the dissolution value depends on the temperature of the aqueous solution, pressure and salinity in solution.
Characteristics
Range : DO : 0 – 20 mg/L, 0 – 20 ppm, Temperature : 0 – 45 ℃.
Resolution : DO : ± 3 % of the measured value, Temperature ：± 0.5 ℃.
Output signal : 4 ~ 20 mA.
Temperature Type : NTC 10 K / PT1000.
Specification
| Information | Spesification |
|---|---|
| Product | Dissolved Oxygen Sensor |
| Model | INATEC - DO-7011 |
| Measure range | DO : 0 - 20 mg/L, 0.6 MPa, Temperature : 0 - 60 ℃ |
| Accuracy | DO : ± 3 % of the measured value, Temperature : ± 0.5 ℃ |
| Temperature Type | NTC 10 K / PT1000 / 2.252 K |
| Output Type | 4 - 20 mA output |
| Weight | 1.85 Kg |
| Cable length | Standard : 10m, The maximum may be extended to 100 m |
