INATEC

This product is a general-purpose controller for water quality,suitable for use with various water quality series digital sensors of our company.It is used to monitor water quality parameters including pH, ORP, conductivity, dissolvedoxygen, turbidity, sludge concentration and other water quality parameters.Through RS485 or current transmission output to the monitoring room for record keeping.

Characteristics

Range : pH : (0 ～ 14) pH.

ORP : (-2000 ～ 2000) mV.

DO : (0 ～ 40) mg/L.

TDS : (0 ～ 600) mS/cm.

Turbidity : (0 ～ 4000) NTU.

Suspended solids : (0 ～ 120000) mg/L.

Output signal : 4 ~ 20 mA, Relay, RS485.

Power supply : AC : (100 ～ 240) VAC, DC : 24 VDC (Optional).

Tokopedia

Introduction

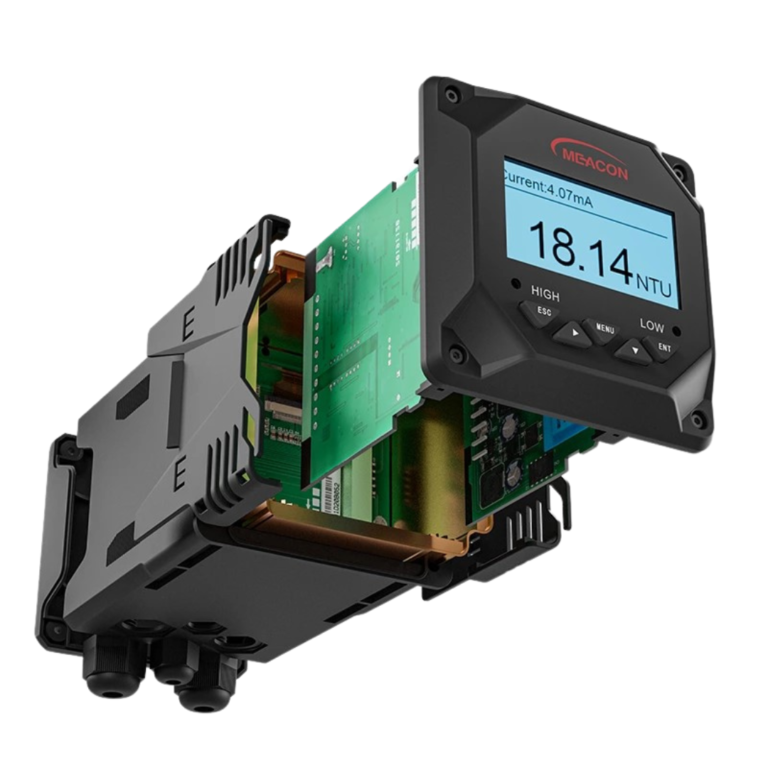

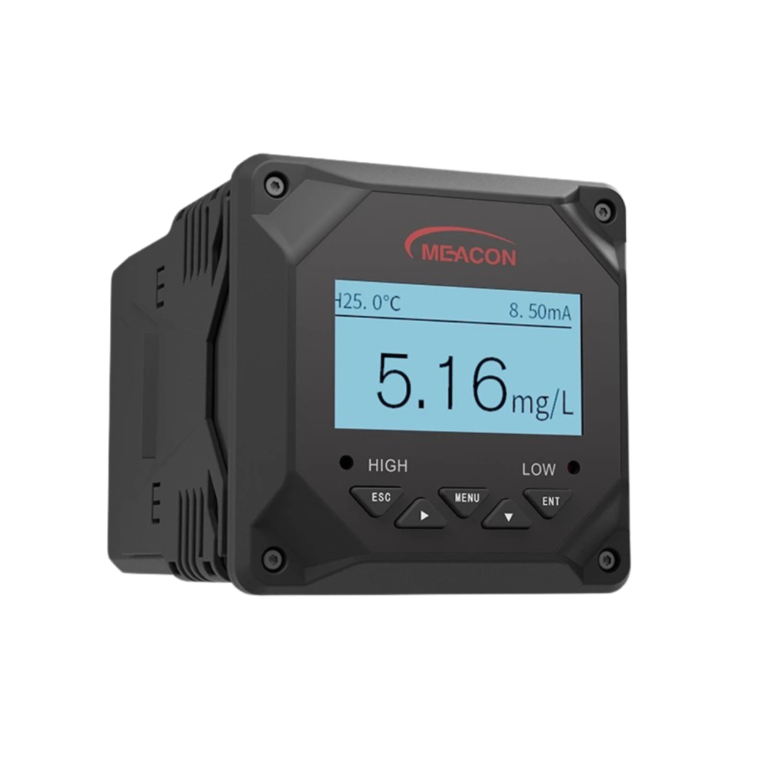

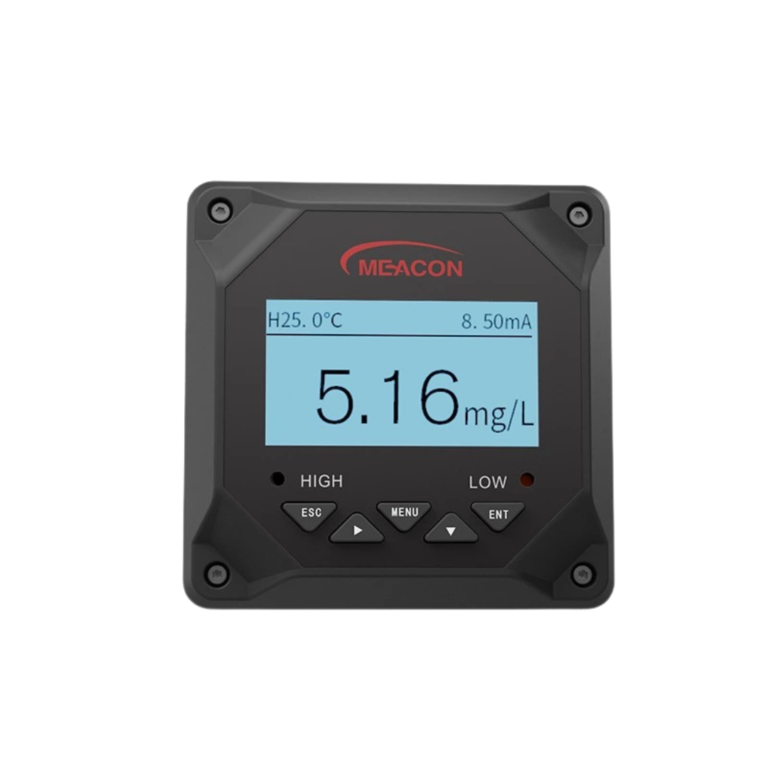

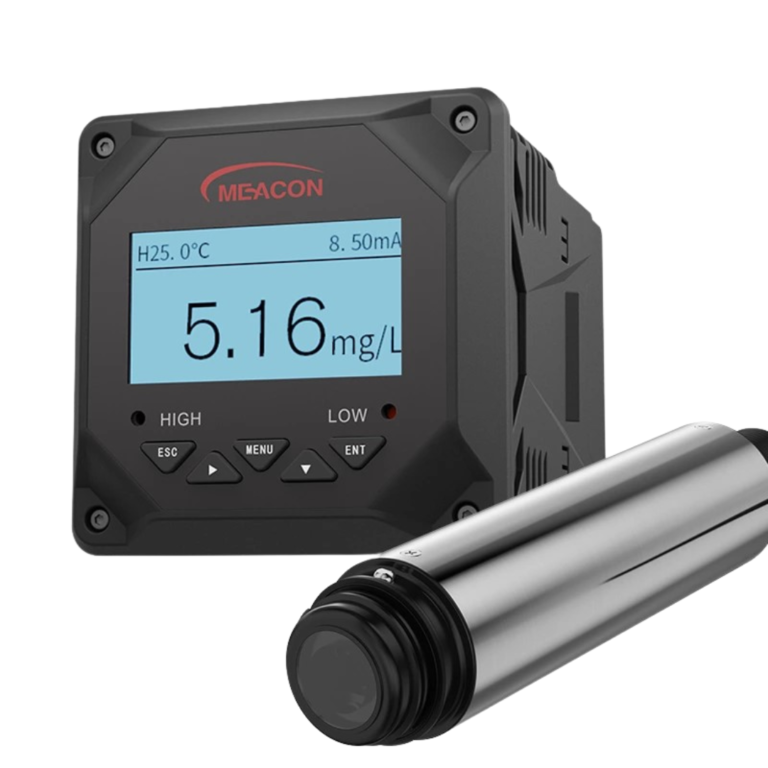

INATEC – DC-2000 Digital analyzer monitor is a general-purpose water quality controller. It is suitable for use with Meacon’s multiple water quality series digital sensors. It is used to monitor water quality parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, etc.

Advantages

Isolating transmitting output, with little interference.

Isolating RS485 communication.

EC/TDS measurement, temperature measurement, top/bottom limit control, transmitting output, RS485 communication.

Configurable manual and auto temperature offset function.

Configurable upper/lower limit warning and delay.

Configurable hummer and LCD backlight switch.

Addition of universal password.

Industrial controlled door keep, to avoid instrument halted.

Specification

Information	Spesification
Product	Digital Analyzer Monitoring
Model	INATEC - DC-2000
Diameter nominal	100 mm * 100 mm * 150 mm
Range	pH : (0 - 14) pH ORP : (-2000 - 2000) mV DO : (0 - 40) mg/L TDS : (0 - 600) mS/cm Turbidity : (0 - 4000) NTU Suspended solids : (0 - 120000) mg/L
Relative humidity	(10 - 85) %
Temperature range	(0 - 60) ℃
Communication	RS485, Modbus - RTU
Signal output	4 - 20 mA, maximum loop 500 Ω, 0.2 % FS
Power supply	AC : (100 - 240) VAC DC : 24 VDC (Optional)
Relay output	250 VAC, 3 A
