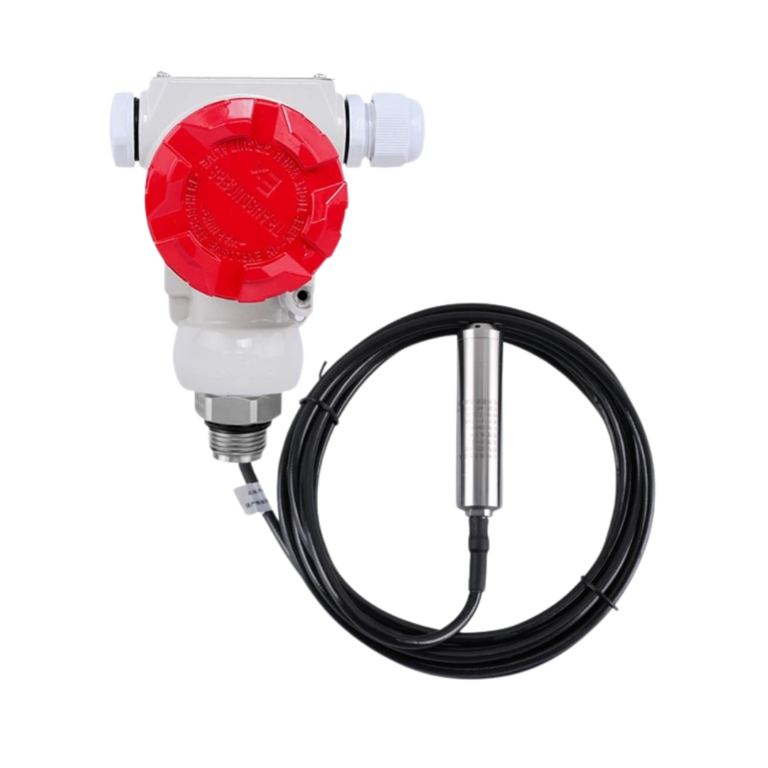

INATEC – PX-261 Submersible Level Meter

INATEC – PX-261 series water level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater leverl and so on, common accracy is 0.5 % FS, with voltage or 04 – 20 mA output signals.

Characteristics

Range : 0 ~ 100 m.

Resolution : 0.5 % F.S.

Output signal : 04 ~ 20 mA, 0 ~ 10 V, 0 ~ 5 V

Power supply : 24 VDC, 12 VDC.

Tokopedia

Advantages

Compact shape, accurate measurement. According to fluid mechanics, the use of cylindrical arc shape, the effective media to the impact of the probe down to reduce the impact of probe shaking on the measurement stability
Multiple waterproof and dustproof.
With display function, support on-site liquid level data monitoring without supporting liquid level detector.

Specification

Information	Spesification
Product	Level Transmitter
Model	INATEC - PX-261
Measure range	0 ~ 1 m, 0 ~ 3 m, 0 ~ 5 m, 0 ~ 10 m (Max 100 m）
Indication resolution	0.5 %
Ambient temperature	-10 ~ 85 ℃
Output signal	04 - 20 mA
Pressure overload	150 % FS
Power supply	24 VDC, 12 VDC, Custom (09 - 32 V)
Medium temperature	- 40 ℃ ~ 60 ℃
Overall material	Core : 316 L, Shell : 304 material
