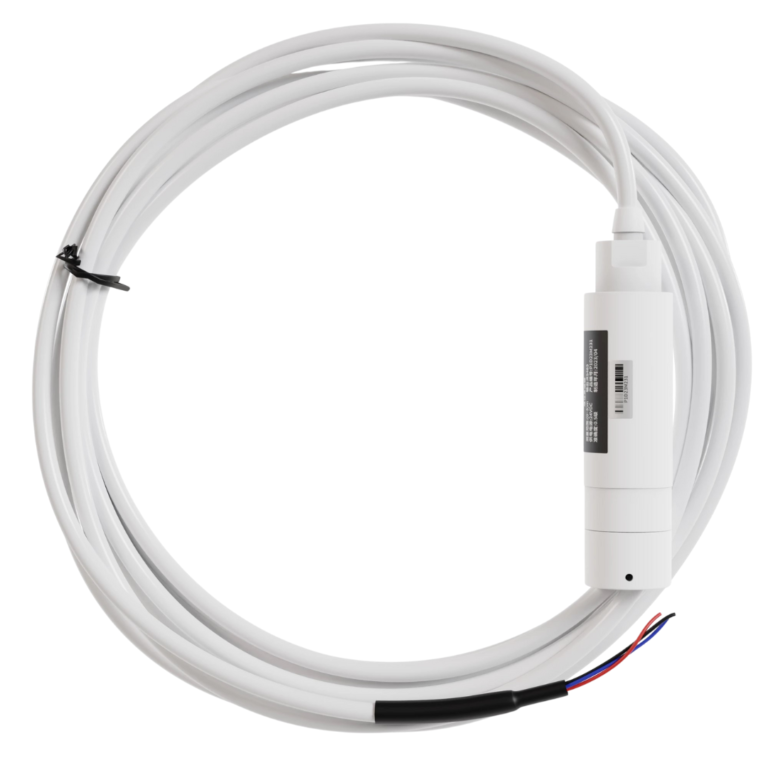

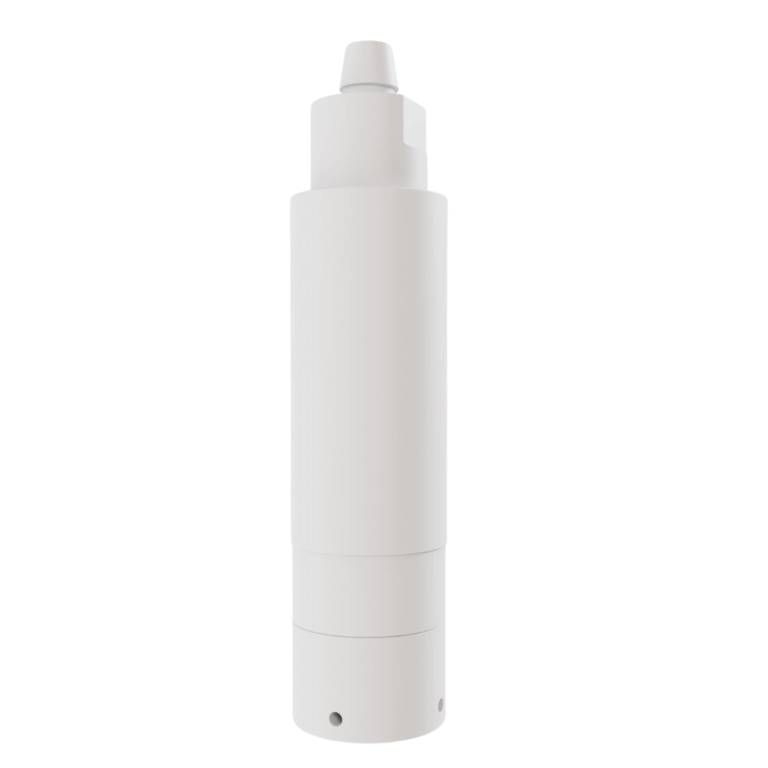

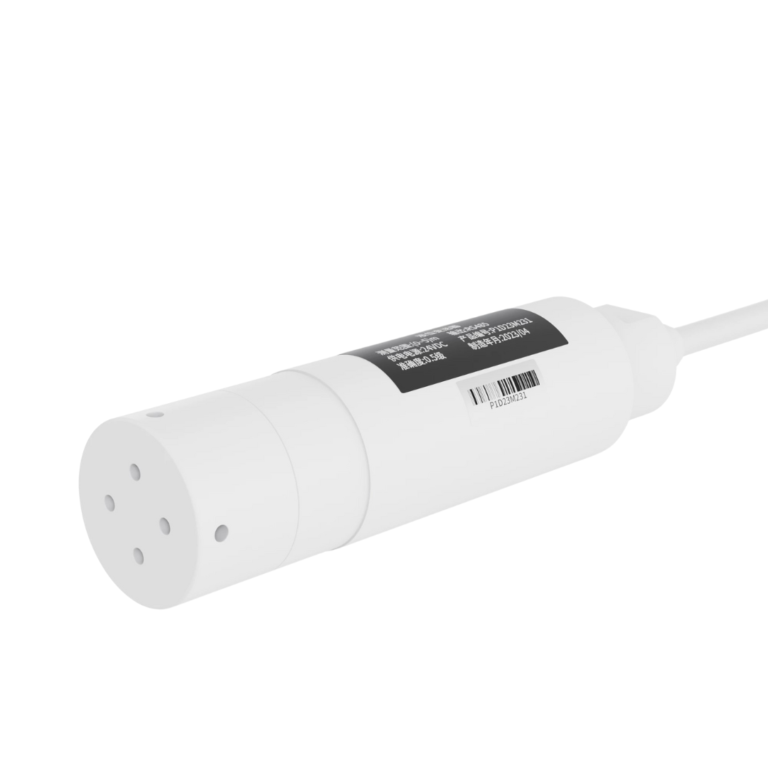

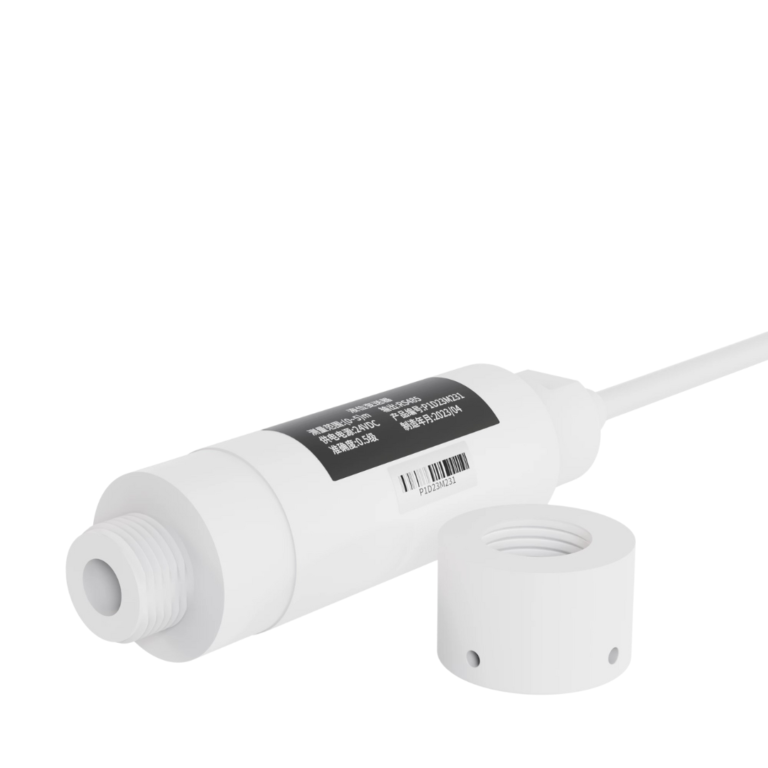

INATEC – P-262-B PTFE Submersible Level Meter
The anti-corrosion input liquid level transmitter uses a high-performance ceramic pressure sensor as a measuring element to accurately measure the hydrostatic pressure proportional to the liquid level depth, and convert it into a standard current, voltage or RS485 signal output through a signal conditioning circuit , establish a linear correspondence between the output signal and the liquid level depth, and realize the measurement of the liquid depth. The product is made of polytetrafluoroethylene anti-corrosion material, which has excellent corrosion resistance and is widely used in liquid level measurement of acid, alkali and other corrosive media in chemical plants.
Characteristics
Pressure type : Gauge pressure.
Measuring range : 0 ~ 1 m – 200 m water column.
Accuracy : 1 %, 0.5 % (range ≥ 5 meters).
Introduction
The anti-corrosion input liquid level transmitter uses a high-performance ceramic pressure sensor as a measuring element to accurately measure the hydrostatic pressure proportional to the liquid level depth, and convert it into a standard current, voltage or RS485 signal output through a signal conditioning circuit , establish a linear correspondence between the output signal and the liquid level depth, and realize the measurement of the liquid depth. The product is made of polytetrafluoroethylene anti-corrosion material, which has excellent corrosion resistance and is widely used in liquid level measurement of acid, alkali and other corrosive media in chemical plants.
Specification
| Information | Spesification |
|---|---|
| Product | Submersible Level Meter |
| Model | INATEC - P-262-B |
| Pressure type | Gauge pressure |
| Measuring range | 0 ~ 1 m - 200 m water column |
| Accuracy | 01 %, 0.5 % (Range ≥ 5 meters) |
| Output and power supply range | (04 ~ 20) mA output (10 ~ 32) V (0 ~ 10) V output (12 ~ 32) V RS485 output (8 ~ 32) V |
| Compensation temperature | (0 ~ 70) ℃ |
| Medium temperature | (- 40 ~ 125) ℃ |
| Storage temperature | (- 40 ~ 85) °C |
| Overload pressure | 200 % FS |
| Long-term stability | ± 0.5 % FS / year |
| Response time | Current, voltage output type pressure ≤ 10 ms (Up to 90% FS) RS485 output type pressure ≤ 100 ms (Up to 90 % FS) |
| Insulation resistance | 20 M Ω / 250 VDC |
| Ingress protection | IP68 |
| Load resistance | (04 ~ 20) mA output : load resistance ≤ (U - 10 V) / 0.02 A, U is the supply voltage Voltage output: load resistance ≥ 5 k Ω |
