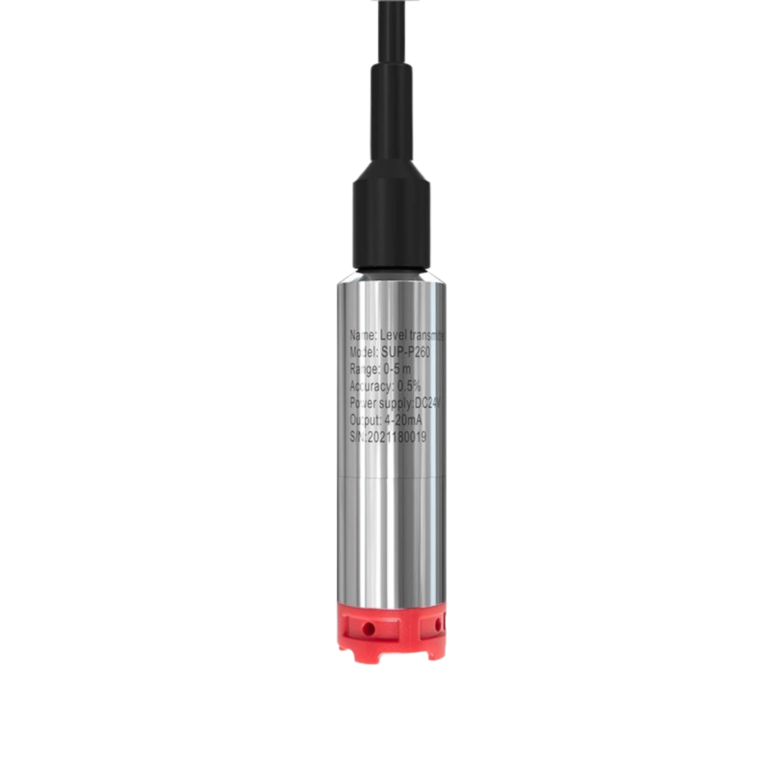

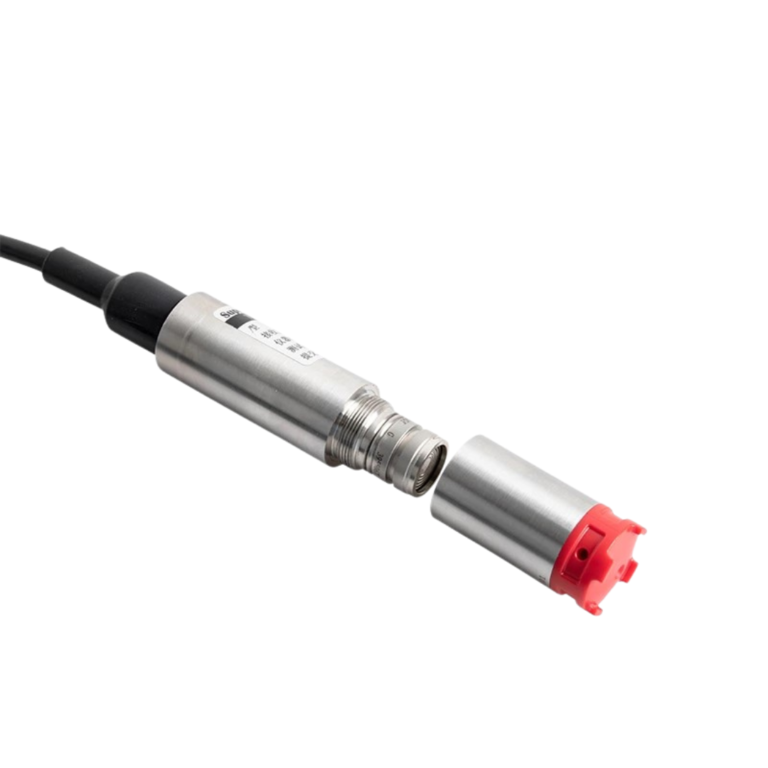

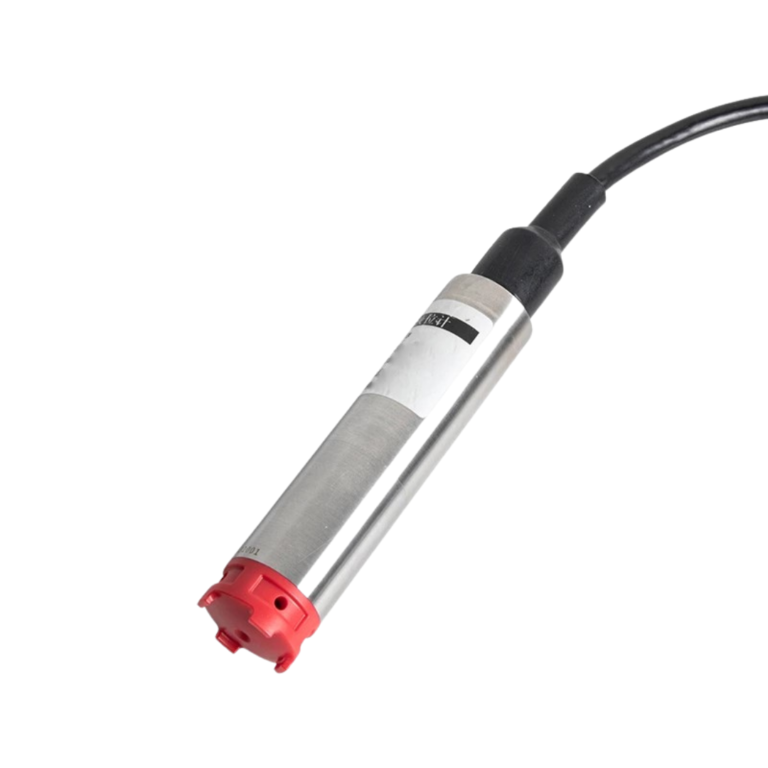

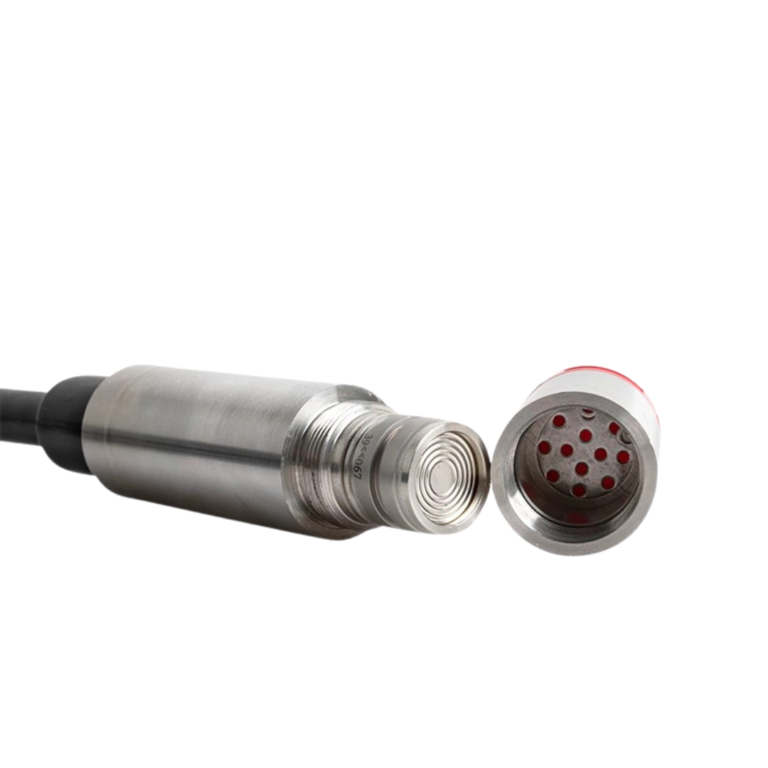

INATEC – P-260 Submersible Level Meter
INATEC – P-260 series submersible level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater level and so on type, common accuracy is 0.5%FS,with voltage or 4-20mA output signals
Characteristics
Range : 0 ~ 0.5 m – 200 m.
Accuracy : 0.5 % F.S.
Output signal : 04 ~ 20 mA, 0 ~ 10 V, 0 ~ 5 V.
Power supply : 24 VDC, 12 VDC.
Specification
| Information | Spesification |
|---|---|
| Product | Level Transmitter |
| Model | INATEC - P-260 |
| Measuring range | 0 ~ 1 m - 200 m |
| Accuracy | 0.5 % FS |
| Pressure type | G (Gage pressure) |
| Compensation temperature | - 10 ℃ ~ 70 ℃ |
| Medium temperature | - 10 ℃ ~ 65 ℃ |
| Storage temperature | - 20 ℃ ~ 65 ℃ |
| Output signal | 04 - 20 mA, 01 ~ 5 V, 0 ~ 10 V, 0 - 5 V, RS485 |
| Pressure overload | 150 % FS |
| Stability | ± 0.2 % FS / year |
| Power supply | (04 ~ 20) mA output (10 ~ 32) V (0 ~ 10) V output (12 ~ 32) V RS485 output (08 ~ 32) V |
| Ingress protection | IP68 (Sensor), IP65 (2088 wire part) |
