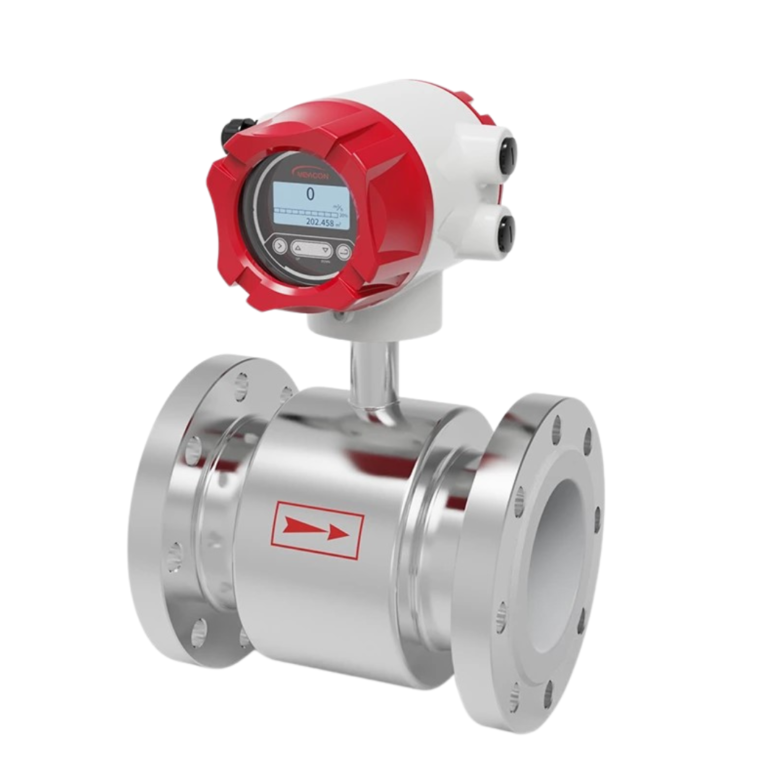

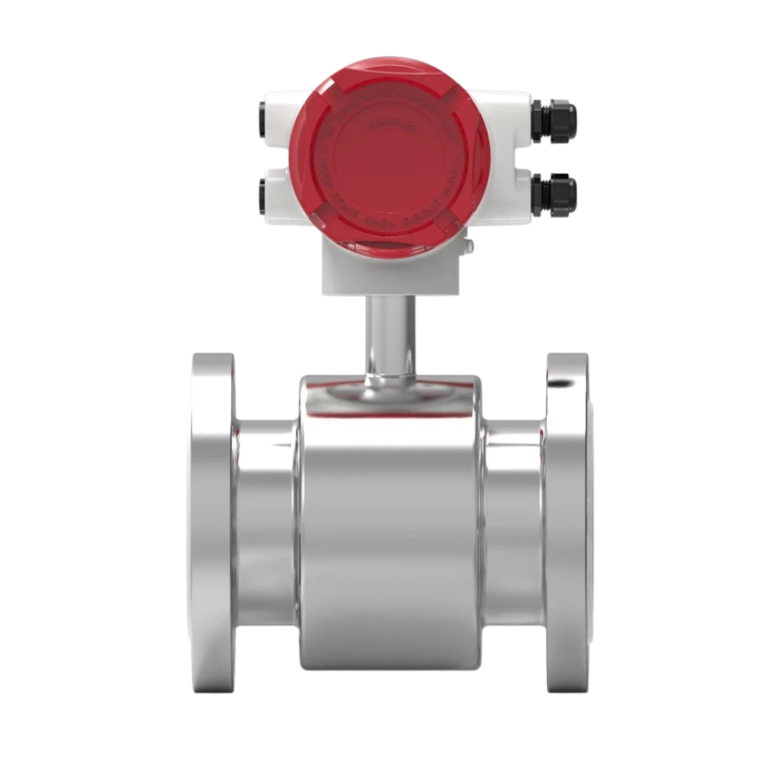

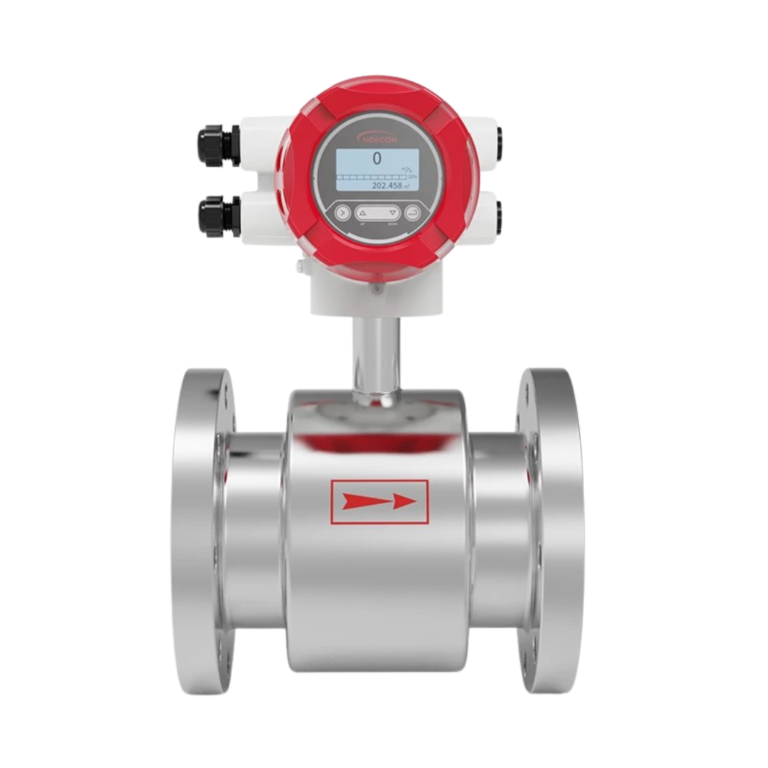

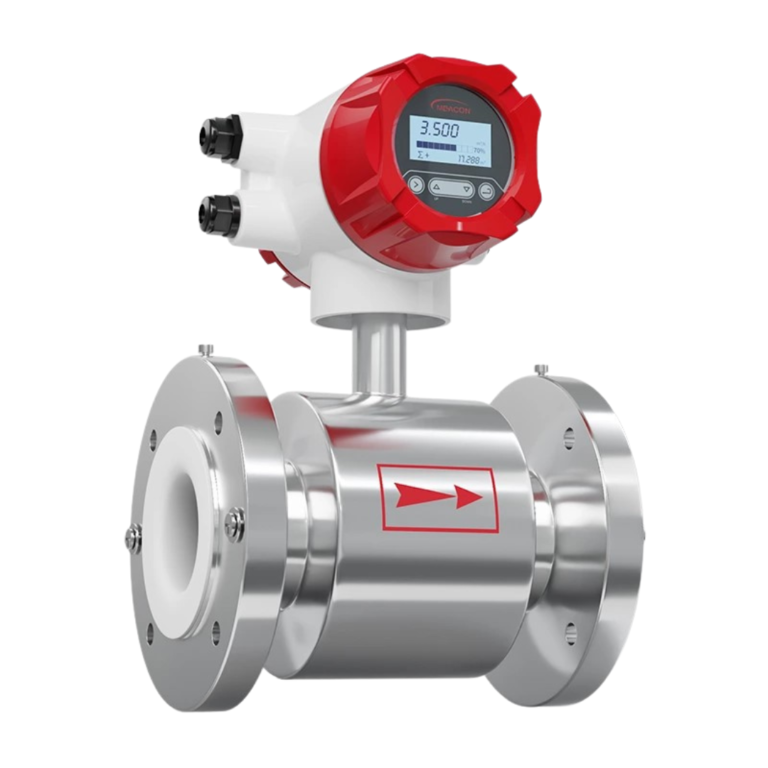

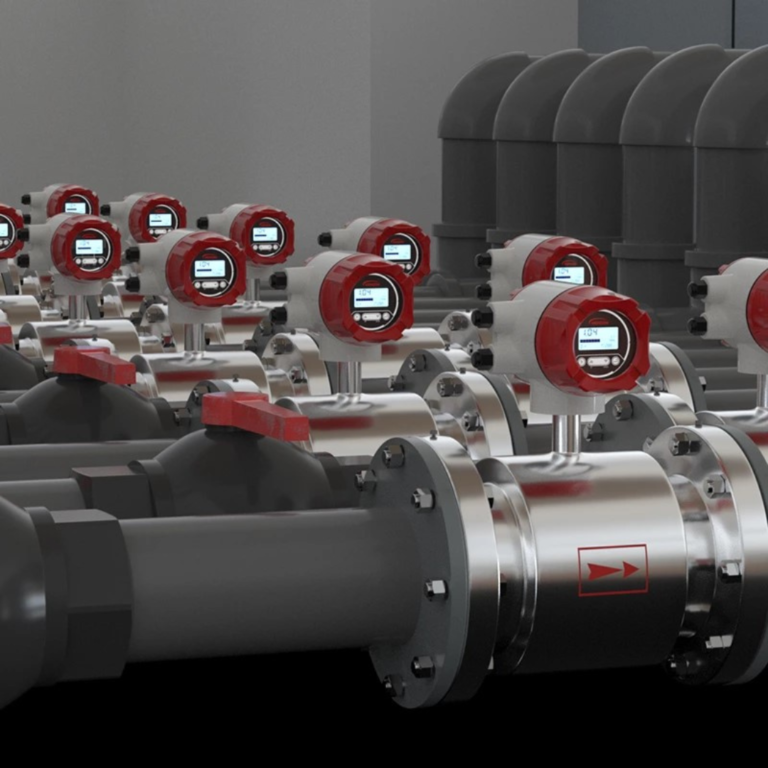

INATEC – LDG Stainless Steel Body Electromagnetic Flowmeter

Magnetic flow meters operate under the principle of Faraday’s Law of Electromagnetic Induction to measure liquid velocity. Following Faraday’s Law, magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. In order of usage, magnetic flowmeter use in water/wastewater industry, chemical, food and beverage, power, pulp and paper, metals and mining, and pharmaceutical application.

Characteristics

Accuracy : ± 0.5 %, ± 2 mm/s (Flowrate < 1 m/s).

Theoretical value : Water: Min. 20 μS/cm, Other liquid: Min. 5 μS/cm,
Recommended value: ＞30 μS/cm.

Flange : ANSI / JIS / DIN DN 10…600.

Ingress protection : IP65.

Tokopedia

Measuring Principle

Mag meter works based on Faraday’s law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s. An electromagnetic flow meter is a volumetric Flowmeter that measures the flow velocity of a liquid through a pipe.

The measurement principle of magnetic flow meters can be described as follows: when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v :

E = K × B × V × D

Where :
E－Induced electromotive force
K－Meter constant
B－Magnetic induction density
V－Average flow speed in cross-section of measuring tube
D－Inner diameter of measuring tube

Specification

Information	Spesification
Product	Electromagnetic Flowmeter
Model	INATEC - LDG
Diameter nominal	DN 15 ~ DN 1000
Nominal pressure	0.6 ~ 4.0 MPa
Accuracy	± 0.5 %, ± 2 mm/s (Flowrate < 1 m/s)
Liner material	PFA, F46, Neoprene, PTFE, FEP
Electrode material	Stainless steel SUS316L, Hastelloy C, Titanium
	Tantalum Platinum - Iridium
Medium temperature	Integral type : - 10℃ ~ 80℃
	Split type : - 25℃ ~ 180℃
Ambient Temperature	- 10℃ ~ 60℃
Electrical conductivity	Water 20 μS/cm other medium 5 μS/cm
Structure type	Tegral type, Split type
Ingress protection	IP65
Product standard	JB/T 9248 - 1999 Electormagnetic Flowmeter
