INATEC – LDG Battery Powered Electromagnetic Flowmeter

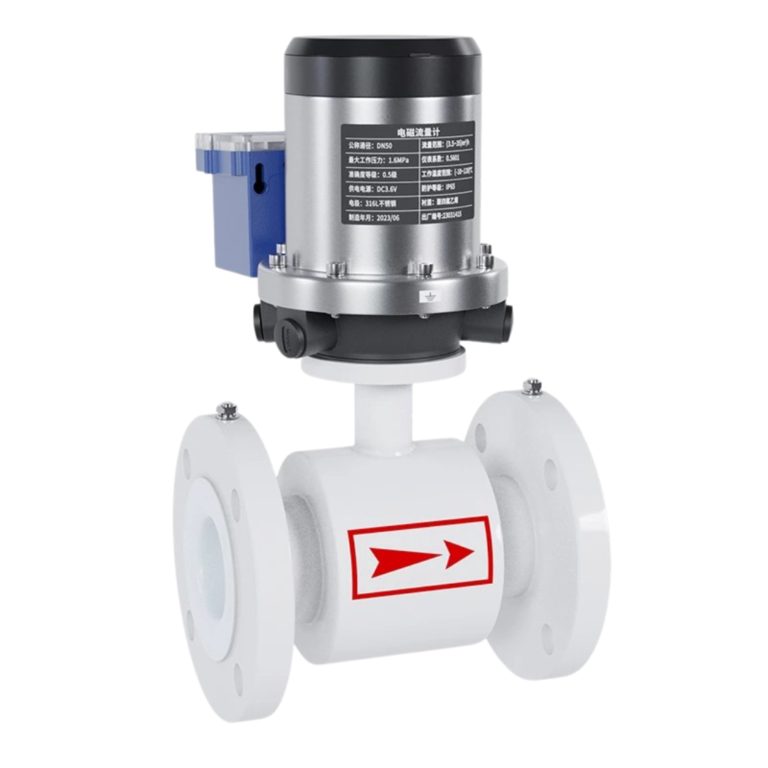

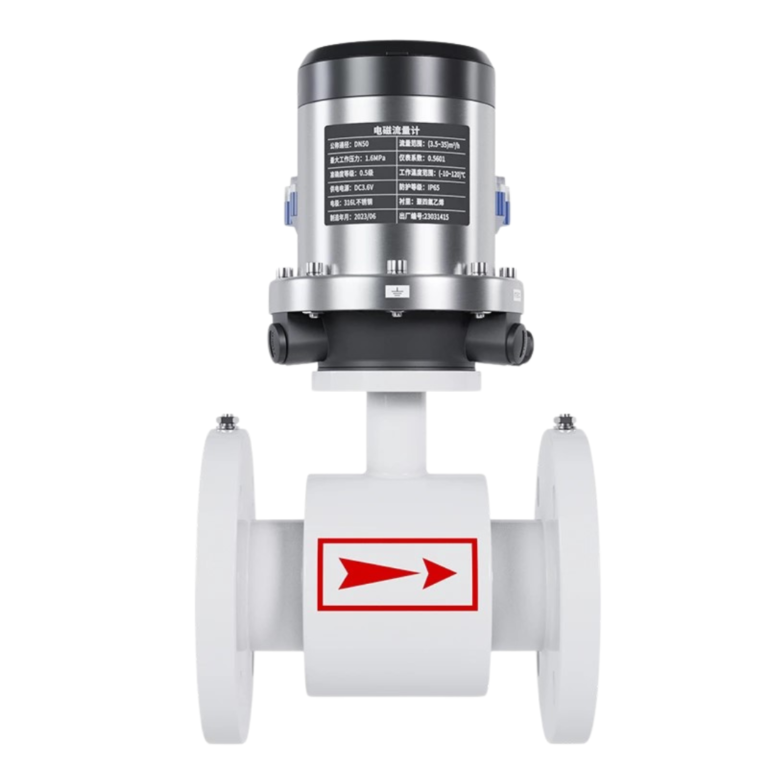

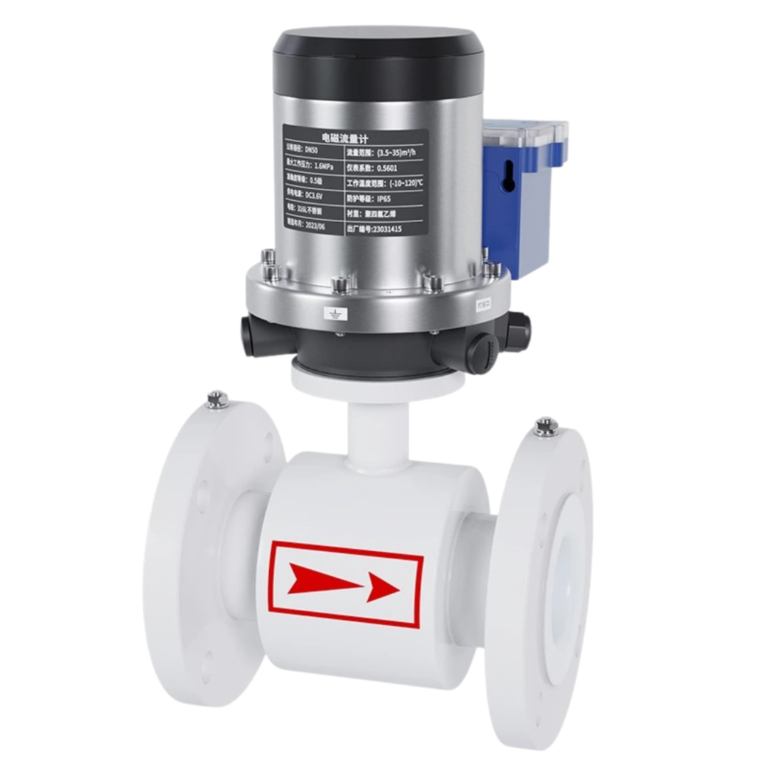

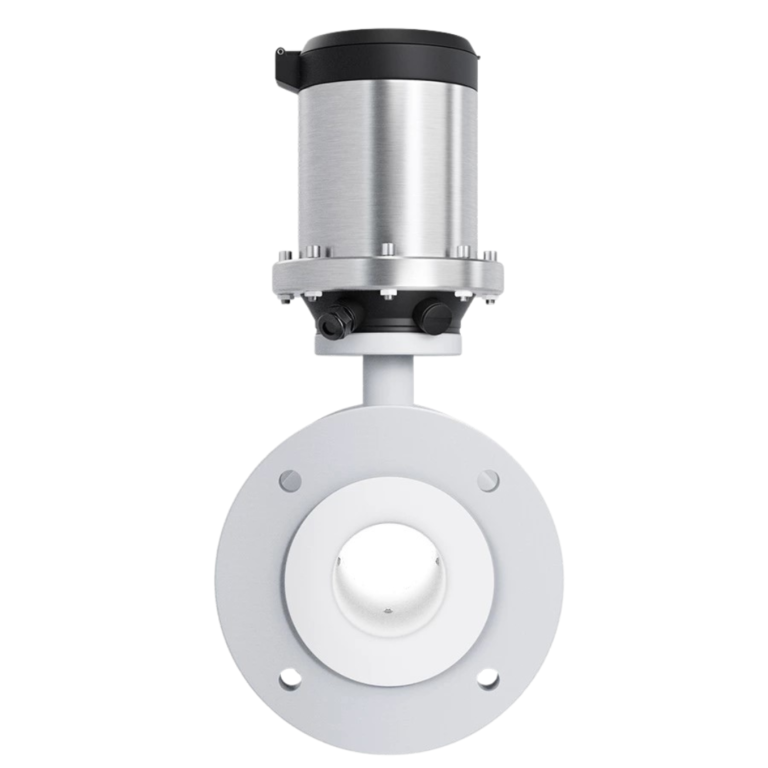

The battery-powered electromagnetic flow meter converter adopts internal battery power supply without external power supply. It is suitable for working conditions where the field power grid cannot be reached and the power grid is difficult to lay. It is especially suitable for the monitoring, metering and settlement of the tap water supply system.

Characteristics

Diameter : DN 03 – DN 2100.

Accuracy : 0.5 %.

Environmental temperature : – 20℃ ~ 50℃.

Ingress protection : IP65, IP68 (Optional)

Tokopedia

Measuring Principle

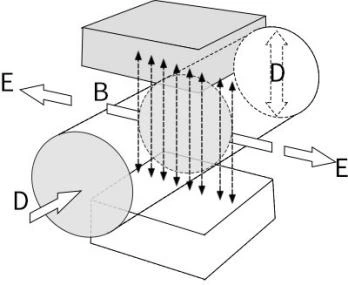

Mag meter works based on Faraday’s law, when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v :

E = K × B × V × D

Where :
E－Induced electromotive force
K－Meter constant
B－Magnetic induction density
V－Average flow speed in cross-section of measuring tube
D－Inner diameter of measuring tube

Specification

Information	Spesification
Product	Electromagnetic Flowmeter
Model	INATEC - LDG
Diameter nominal	DN 03 ~ DN 2100
Accuracy	0.5 %
Environmental temperature	-20℃ - 50℃
Relative humidity	≦ 95 ％
Lining material	PTFE, PFA, F46, Neoprene, Polyurethane rubber, High temperature rubber
Flow range	0 - 15 m/s
Conductivity	Clean water > 20 μs/cm

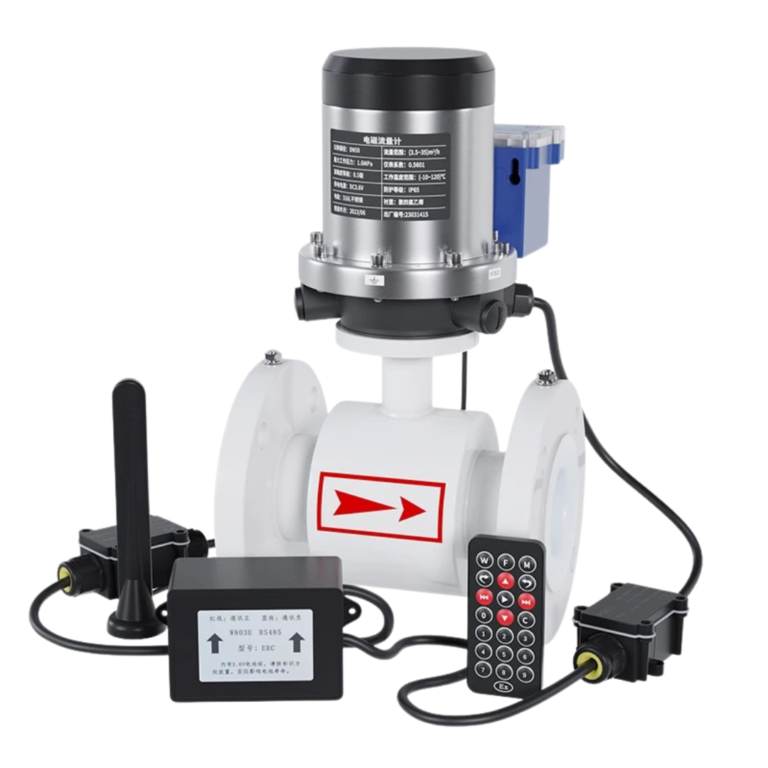

Communication	RS485 (Modbus protocol), GPRS
Electrode material	SS316, Hastelloy B/C, Titanium, Tantalum, Platinum - Iridium alloy, Tungsten carbide
Electrode type	Standard , Scraper, Replaceable
Connection	Flange, Plug - in, Clamp, Clip - on
Medium temperature	- 20℃ ～ + 60℃
Nominal pressure	0.6 ～ 4.0 Mpa (Other can be customized)
Measurement parameter	Instantaneous flow, Instantaneous flow rate
Record parameter	Accumulated total flow
Detection and alarm parameters	Fluid empty pipe detection alarm, Excitation current detection alarm
Test mode output signal	Unit volume flow pulse
