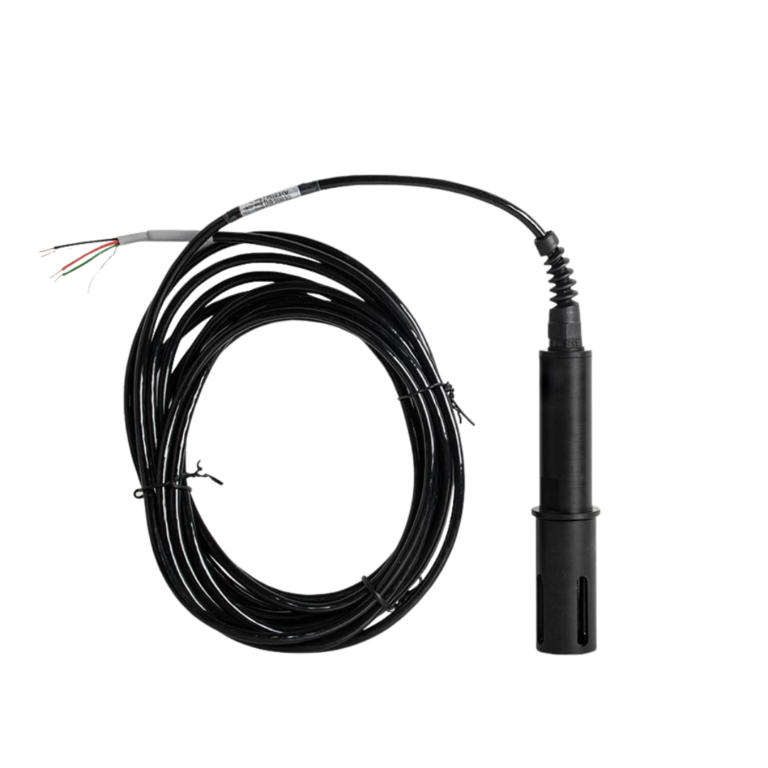

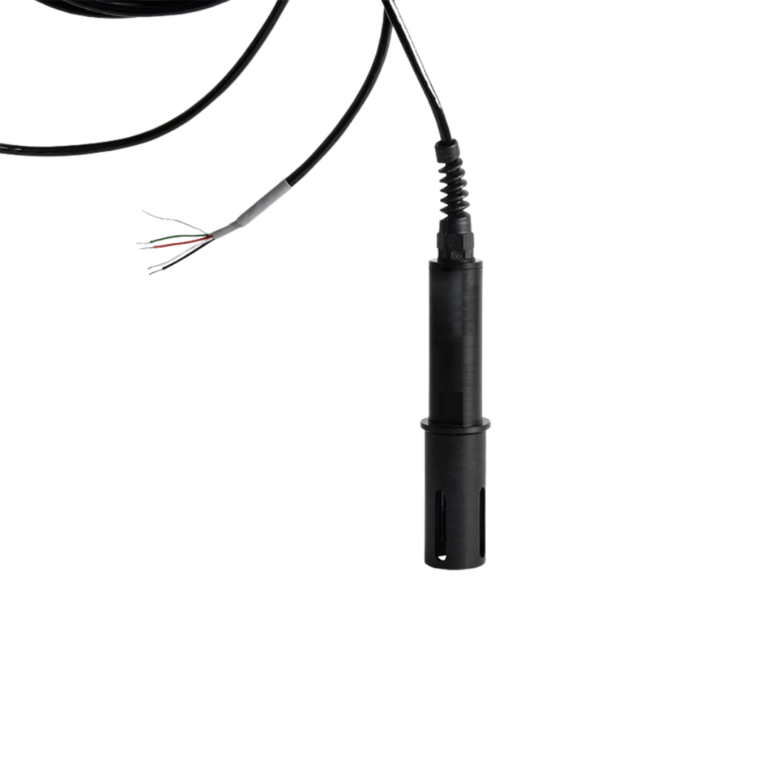

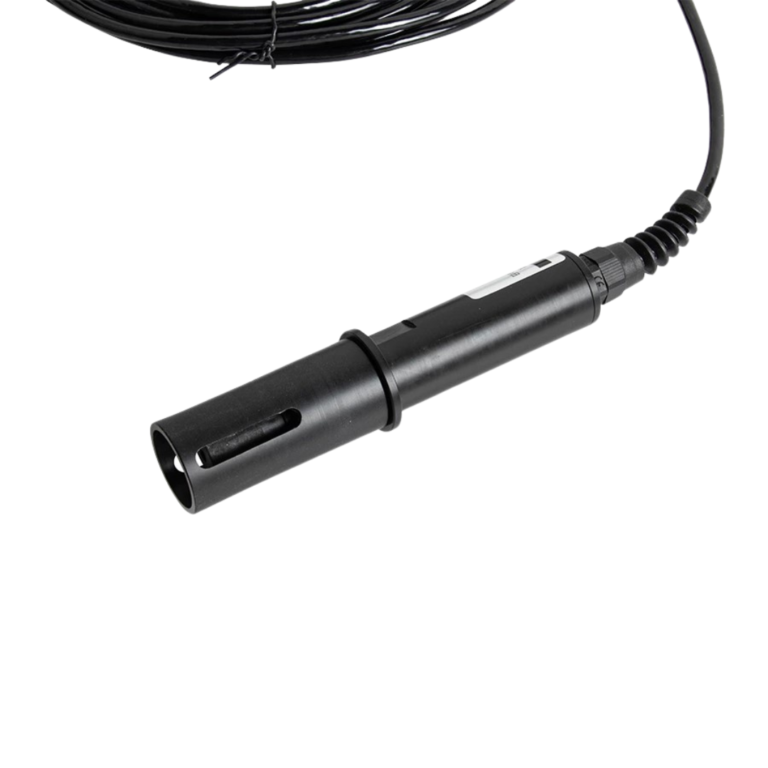

INATEC – TDS-7003 Conductivity Sensor
Due to its excellent electrical conductivity and corrosion resistance, graphite is very suitable for conductivity measurement in various occasions, especially for some corrosive sewage and production process water. Compared with the traditional metal electrode, the bipolar graphite electrode made of graphite material has a wider measurement range: 0.1 us/cm ~ 70 ms/cm.
Characteristics
Range : 0.1 us/cm ~ 70 ms/cm.
Resolution : ± 1 % FS.
Thread : G3/4/NPT3/4.
Pressure : 3 bar.
Introduction
Due to its excellent electrical conductivity and corrosion resistance, graphite is very suitable for conductivity measurement in various occasions, especially for some corrosive sewage and production process water. Compared with the traditional metal electrode, the bipolar graphite electrode made of graphite material has a wider measurement range : 0.1 us/cm ~ 70ms/cm.
Features
- Integrated parallel graphite structure, stable and accurate constant. Simple structure, easy to clean.
- Multiple temperature compensation choices include: NTC22K and other temperature compensation options.
- K = 1.0. Conductivity measurements from pure water to seawater can be covered.
Application
- Pure water, wastewater treatment, mariculture, semiconductor, power.
Specification
| Information | Spesification |
|---|---|
| Product | TDS Sensor Graphite Conductivity Electrode |
| Model | INATEC - TDS-7003 |
| Range | 0.1 us/cm ~ 70 ms/cm |
| Accuracy | ± 1 % FS |
| Elecreode constant | 1.0 |
| Pressure | 3 bar |
| Material | PPS + POM + Graphite |
| Installation | G3 / 4 / NPT3 / 4, Pipeline / Flow-through / Submerged installation |

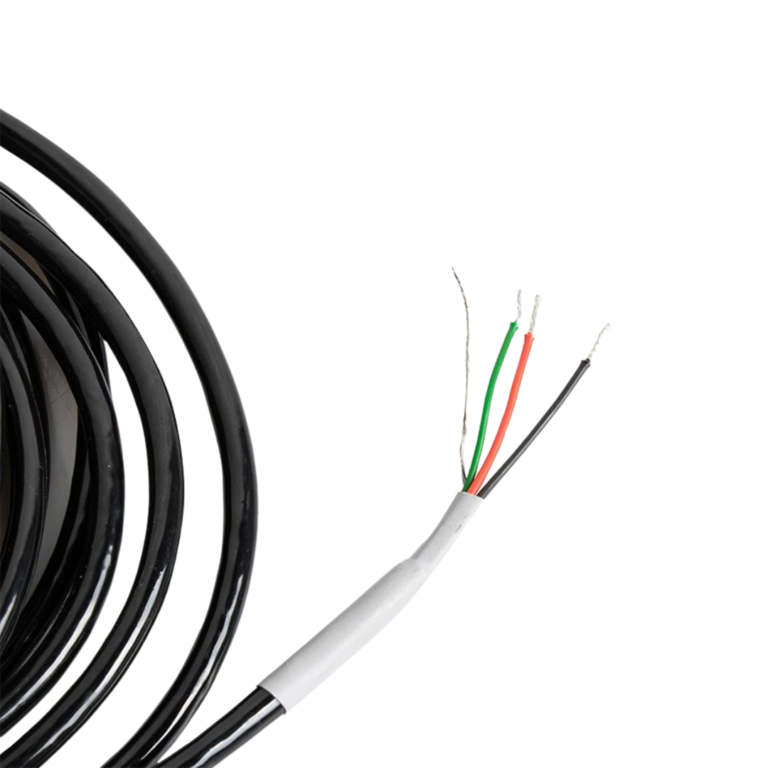

| Cable | Electrode cable length 5 m (Other lengths can be customized) |
