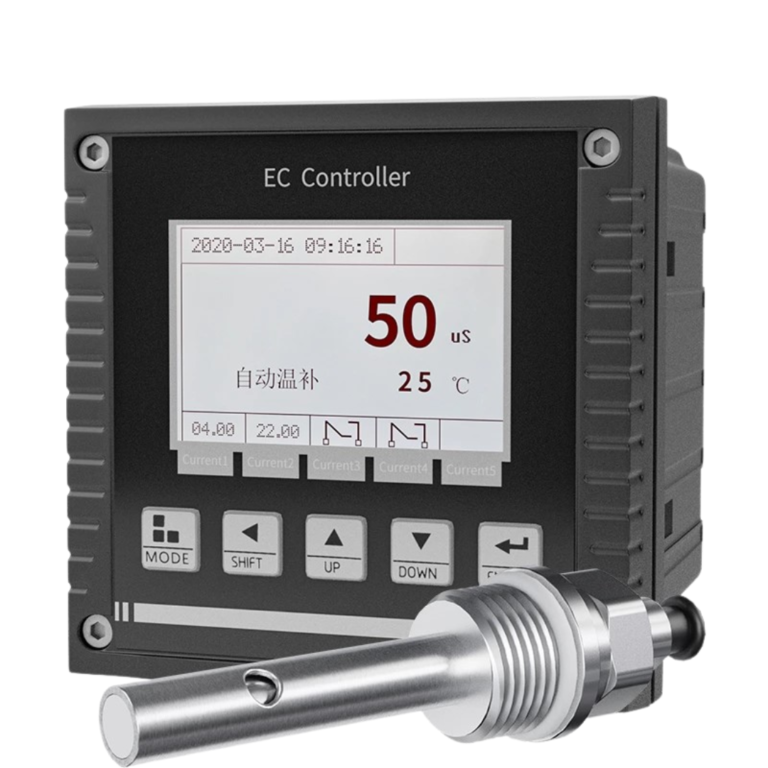

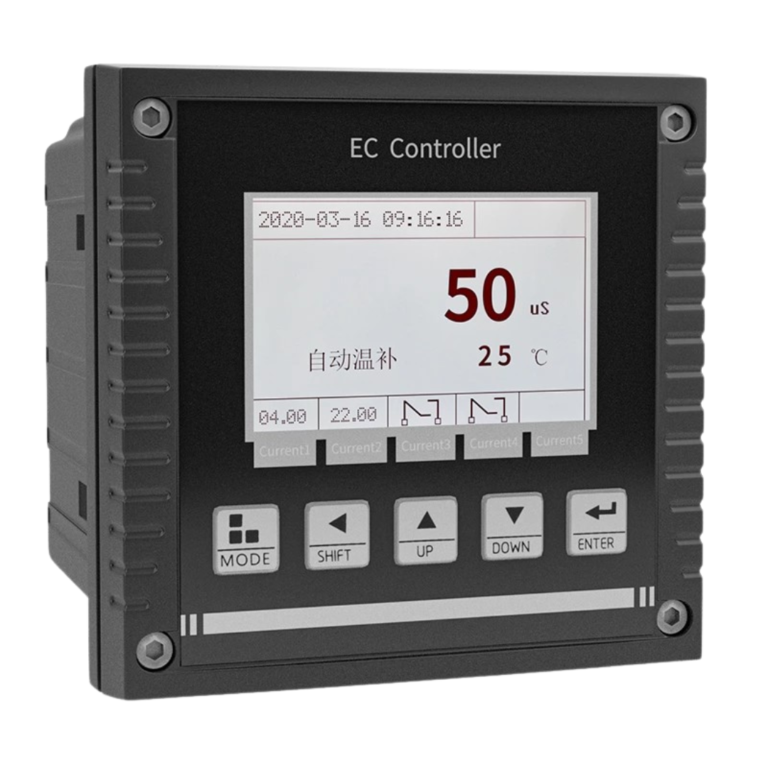

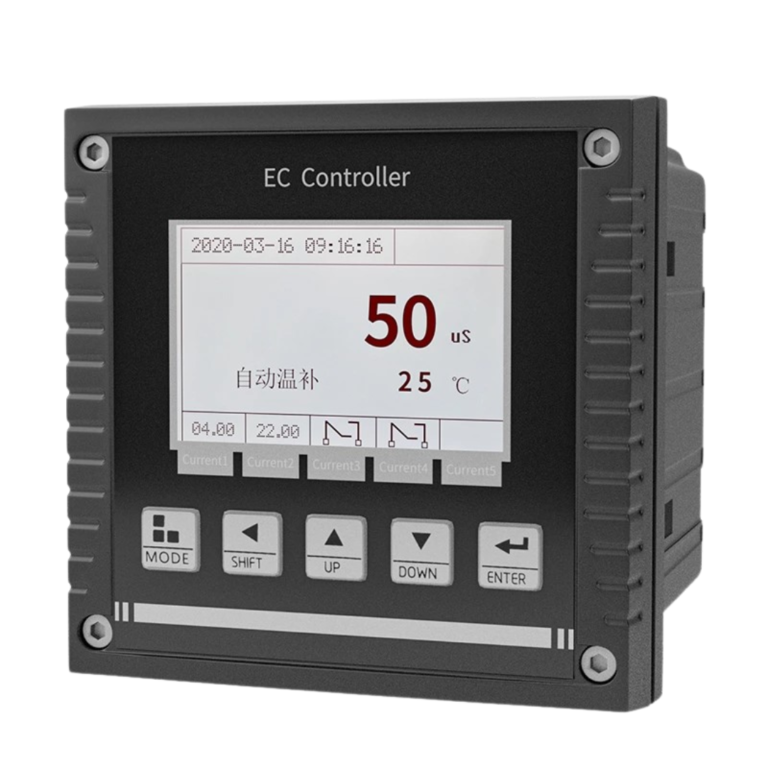

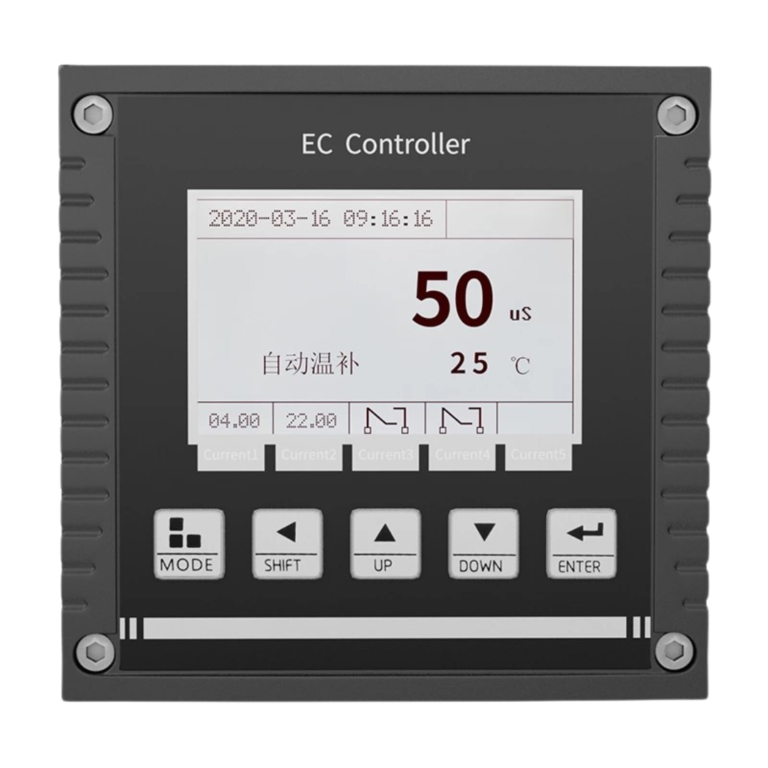

INATEC – EC-8.0 Conductivity Meter
INATEC – EC-8.0 conductivity meter is an intelligent online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or ER value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.
Characteristics
Range : 0.01 electrode : 0.00 uS/cm ～ 2000 mS/cm.
Resolution : ± 1 % FS.
Output signal : 4 ~ 20 mA, Relay, RS485.
Power supply : 90 to 260 VAC.
Introduction
INATEC – EC-8.0 Industrial conductivity meter is widely applied for continuous monitoring and measurement of EC value or TDS value or EC value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.
Specification
| Information | Spesification |
|---|---|
| Product | Industrial Conductivity Meter |
| Model | INATEC - EC-8.0 |
| Measure range | 0.00 uS/cm - 2000 mS/cm |
| Accuracy | ± 1 % FS |
| Measuring medium | Liquid |
| Input resistance | ≥ 1012 Ω |
| Temp compensation | Manual/ Auto temperature compensation |
| Temperature range | -10 - 130 ℃, NTC30K or PT1000 |
| Temperature resolution | 0.1 ℃ |
| Temperature accuracy | ± 0.2 ℃ |
| Communication | RS485, Modbus-RTU |
| Signal output | 4 - 20 mA, maximum loop 500 Ω |
| Power supply | 90 to 260V AC |
| Weight | 0.85 Kg |
