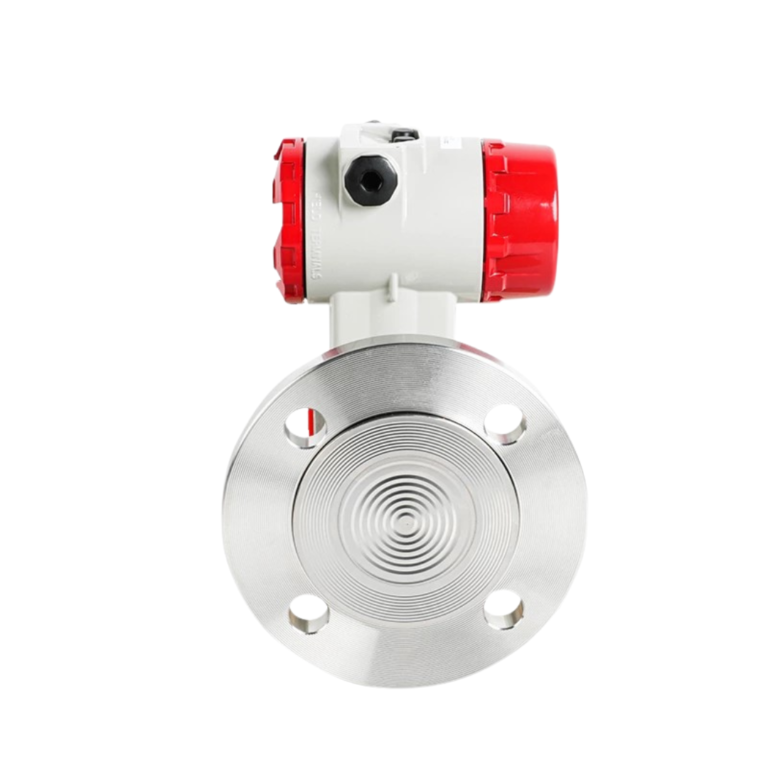

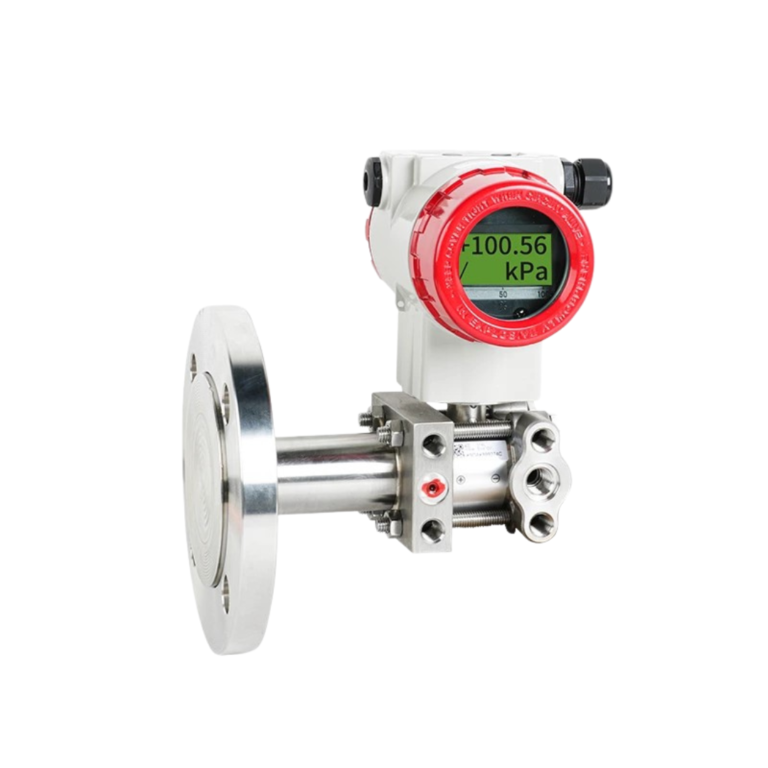

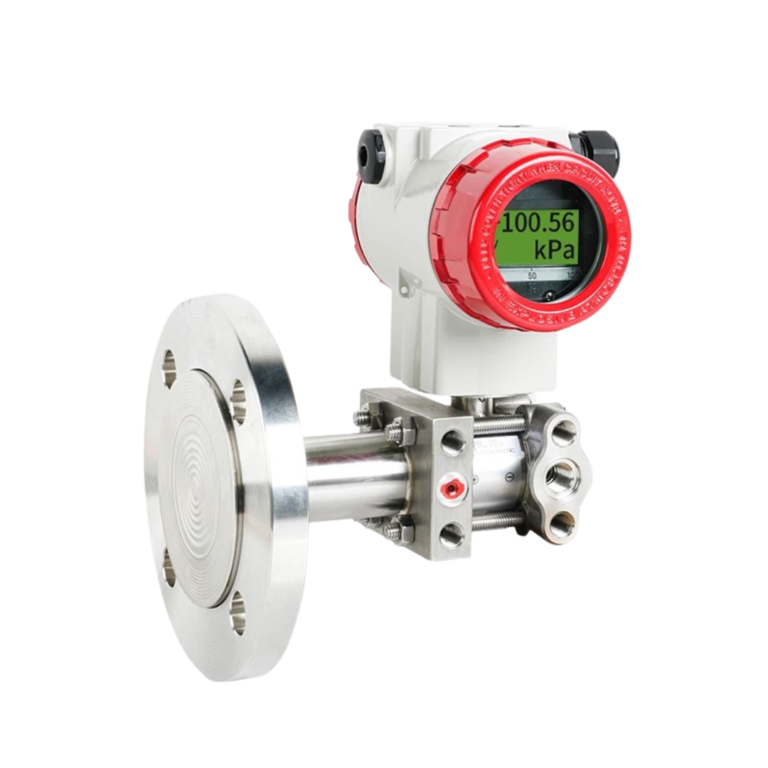

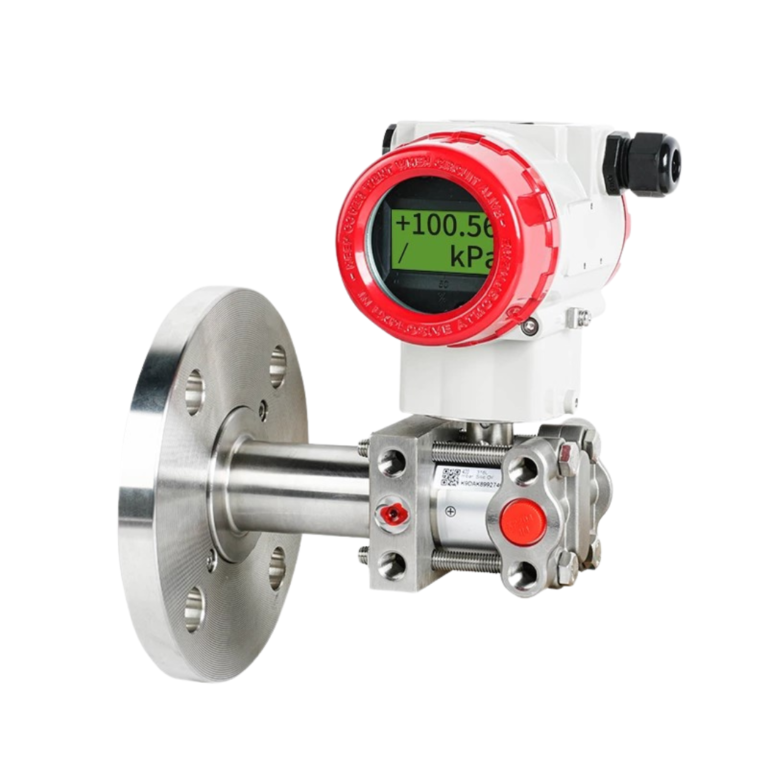

INATEC – 2051-LT Flange Mounted Differential Pressure Transmitters

INATEC – 2051-LT Flange-mounted differential pressure transmitter measures the height of the tank body according to According to the principle that the pressure generated by the liquid of different specific gravity at different heights has a linear relationship.

Characteristics

Range : 0 – 6 kPa ~ 3 MPa.

Resolution : 0.075%.

Output : 4 – 20 mA analog output.

Power supply : 24 VDC.

Tokopedia

Performance

It is suitable for measuring fluid media such as ultra-high temperature 600℃, high viscosity, corrosiveness, easy precipitation, etc.

Measurement range (No Shift) : 0 – 6 kPa ~ 3 MPa
Filling fluid: silicone oil, vegetable oil
Diaphragm : SS316L, Hastelloy C, Tantalum, SS316L Gold Plated, SS316L Plated PTFE, SS316L Plated PDA, SS316L Plated FEP

Specification

Information	Spesification
Product	Differential Pressure transmitter
Model	INATEC - 2051-LT
Measure range	- 100 kPa··· 0~0.1 kPa···3 MPa
Indication resolution	± 0.075 %, ± 0.01 % FS
Ambient temperature	-40 ~ 85 ℃ (Ultra-high temperature type to 600 ℃)
Medium temperature	- 40 ~ 100 ℃
Storage temperature	- 50 ~ 85 ℃
Output signal	4 - 20 mA analog output / with HART communication
Shell protection	IP67
Diaphragm material	Stainless steel 316L, Hastelloy C, supports other custom
Product shell	Aluminum alloy, the appearance of epoxy coating
Weight	3.3 Kg
