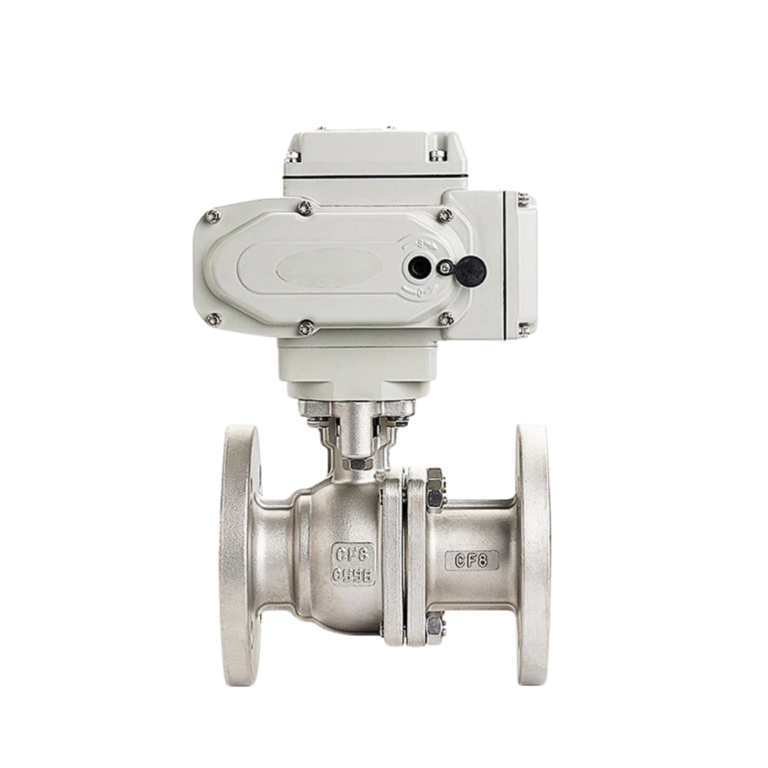

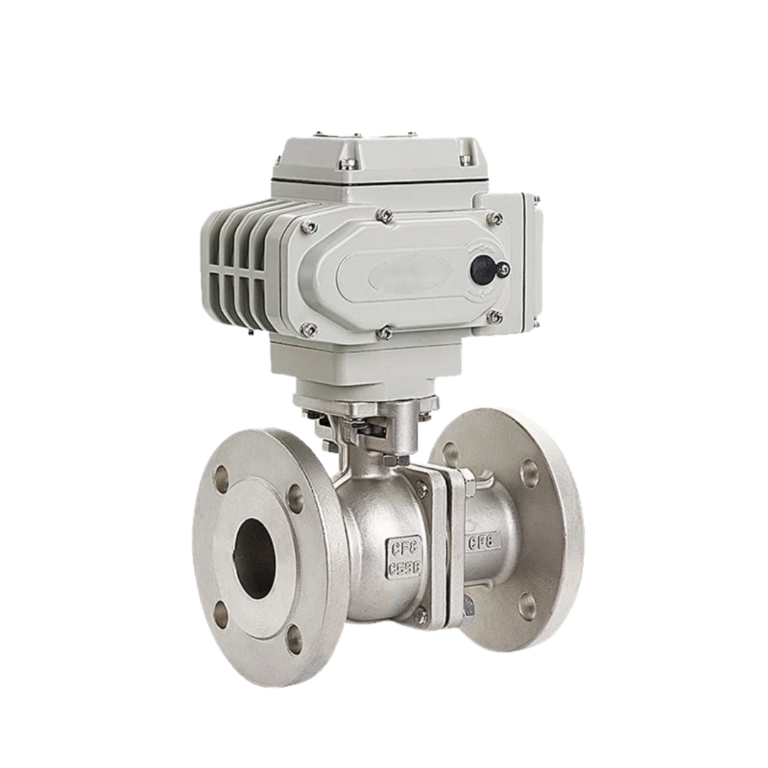

INATEC – Electric O-Type Ball Valve

Characteristics

Valve body material : Stainless steel 304, stainless steel 316, cast steel.

Valve plate material : Stainless steel 304, stainless steel 316, nylon plate.

Valve seat material : Rubber.

Control signal : Switch, DC0 – 10 V, DC 4 – 20 mA.

Feedback output : Dry contact feedback, DC 4 – 20 mA.

Valve temp : Carbon Steel : – 29 ℃ ~ 425 ℃ Stainless steel : – 40 ℃ – 600 ℃.

Working temp : – 20 – 60 *C

Nominal pressure : 1.6 MPa 2.5 MPa 6.4 MPa.

Power : AC 220 V, AC 380,  AC 415 V, AC 440 V, AC 24 V, AC 110 V, DC 24 V DC 12 V, DC 220 V.
